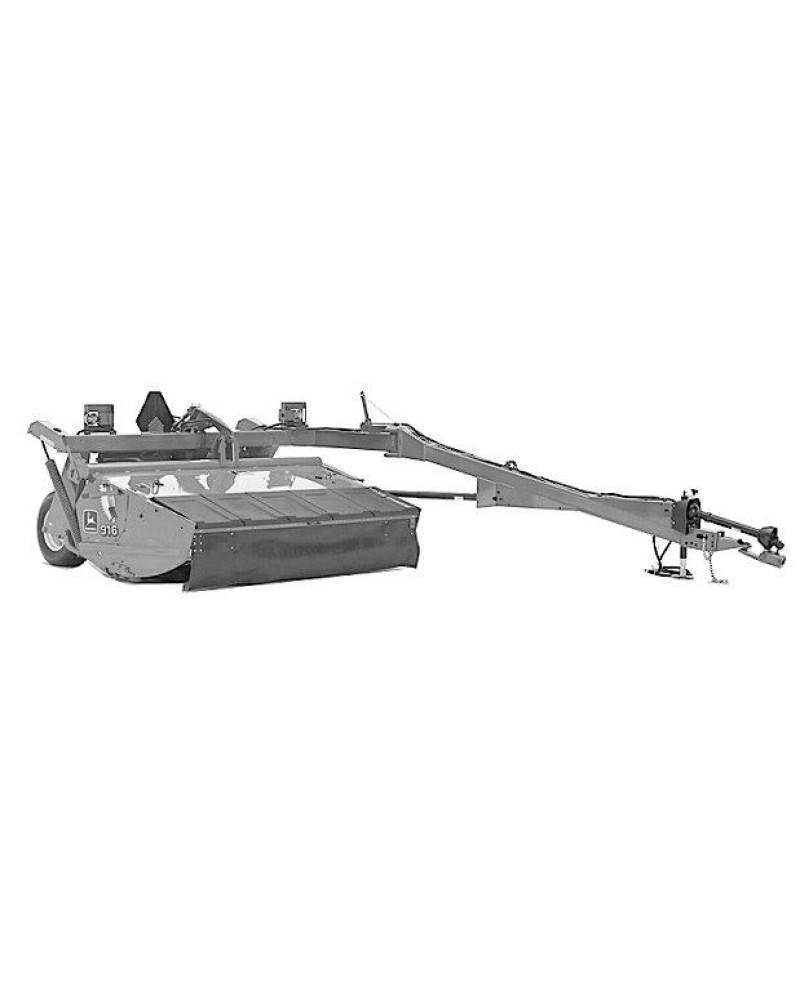

John Deere 916, 926 and 936 Rotary Mower-Conditioners Repair Manual (TM1823)

Illustrated factory Repair Manual for John Deere Rotary Mower-Conditioners Models 916, 926 and 936.

This manual will assist you in assembling, disassembling, and repairing for your mower-conditioner.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   916
   926
   936

Format: PDF, 292 pages
Language: English
Publication Date: 18 Aug 2020
Table of Contents:
   Introduction
      Foreword
      Service Technician Response
   General
      Safety
      Specifications
      General Information
      Lubricants
   Power Train
      General Information
      Diagnosing Malfunctions

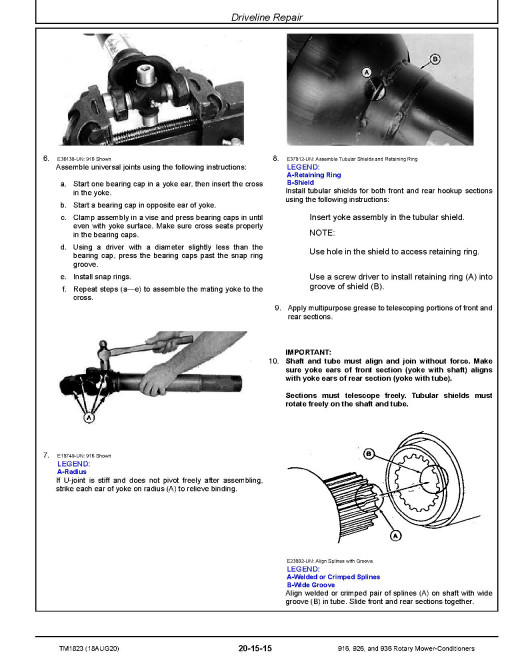

      Driveline Repair
      Main Drive Gear Case-916
      Main Drive Gear Case-926/36
      Slip Clutch
      Belt Drive

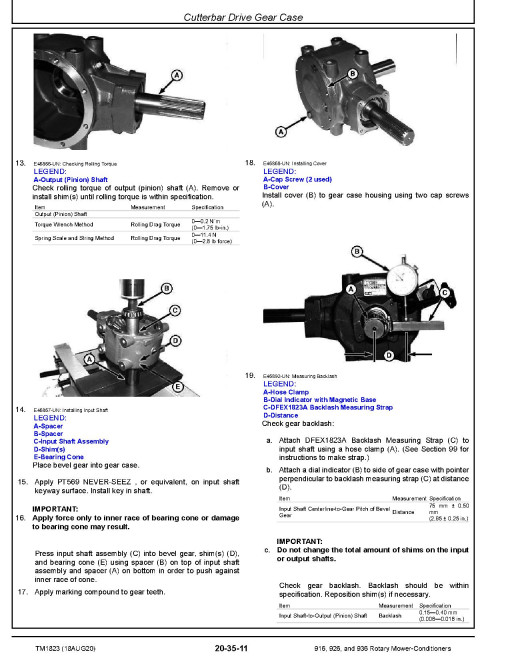

      Cutterbar Drive Gear Case
   Cutting Components
      General Information
      Diagnosing Malfunctions
      Cutterbar Assembly
      Disks and Knives
   Platform-916
      General Information
      Platform Repair
   Platform-926/36
      General Information
      Platform Repair
   Conditioner
      General Information
      Diagnosing Malfunctions
      Roll Bearings and Arms
      Rolls

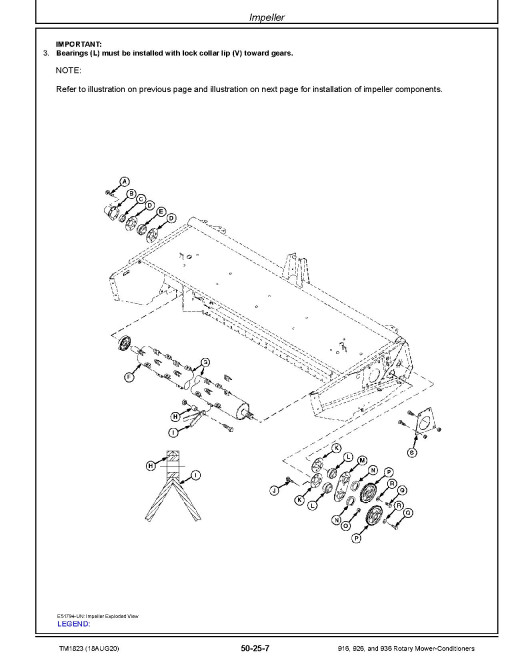

      Impeller
   Carrier Frame and Tongue-916
      General Information
      Diagnosing Malfunctions
      Carrier Frame
      Tongue
   Carrier Frame and Tongue-926/36
      General Information
      Diagnosing Malfunctions
      Carrier Frame
      Tongue
   Hydraulics-916
      General Information
      Diagnosing Malfunctions
      Lift Cylinder
   Hydraulics-926/36
      General Information
      Diagnosing Malfunctions
      Lift Cylinders
      Tongue Positioner Cylinder (Optional)
      Tilt Cylinder (Top Link) (Optional)
   Miscellaneous
      Wheels and Wheel Support Assembly
      Connector Repair
   Dealer Fabricated Tools
      Dealer Fabricated Tools
