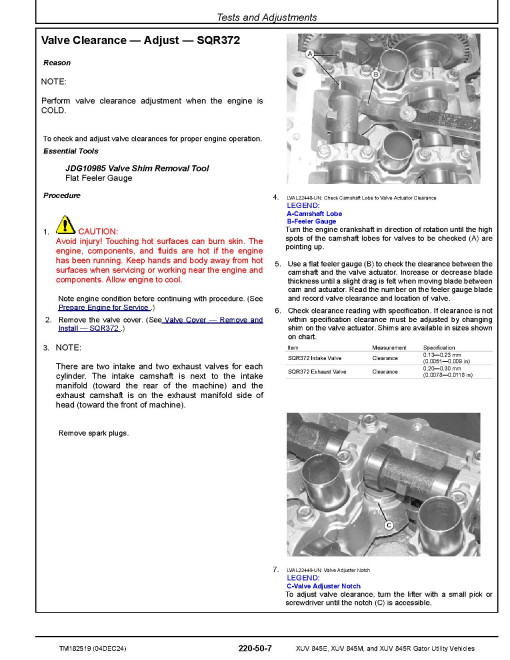

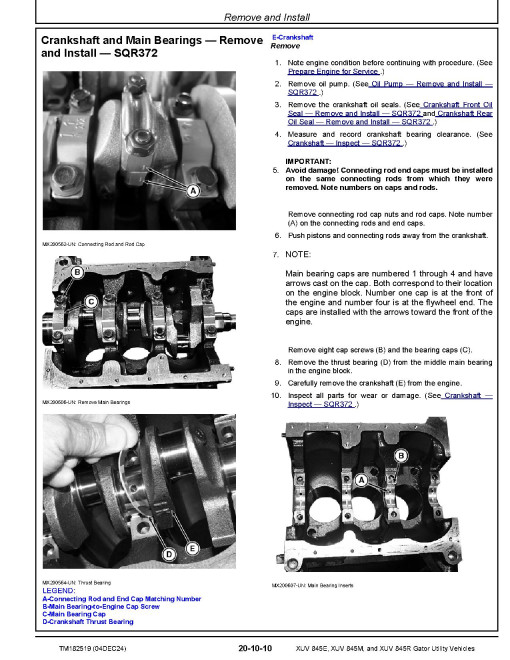

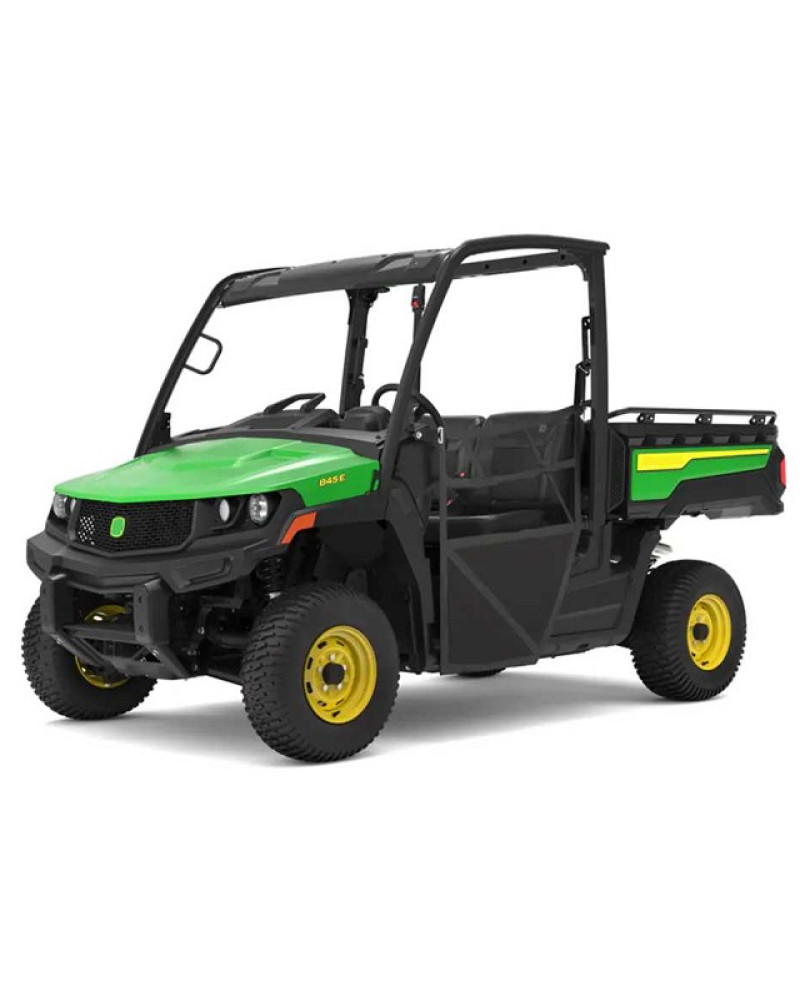

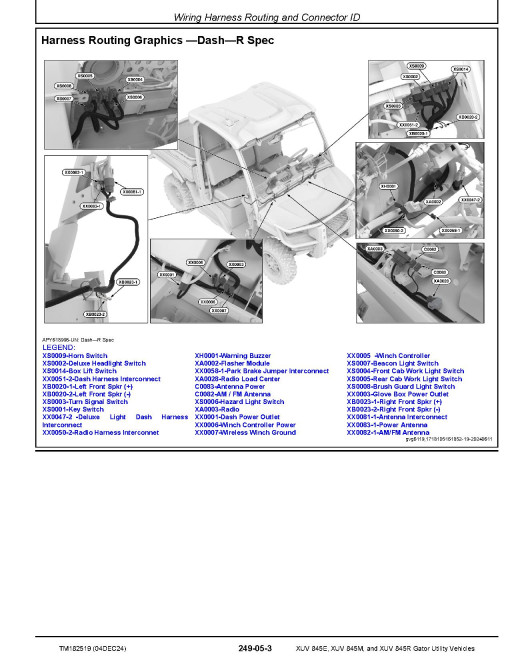

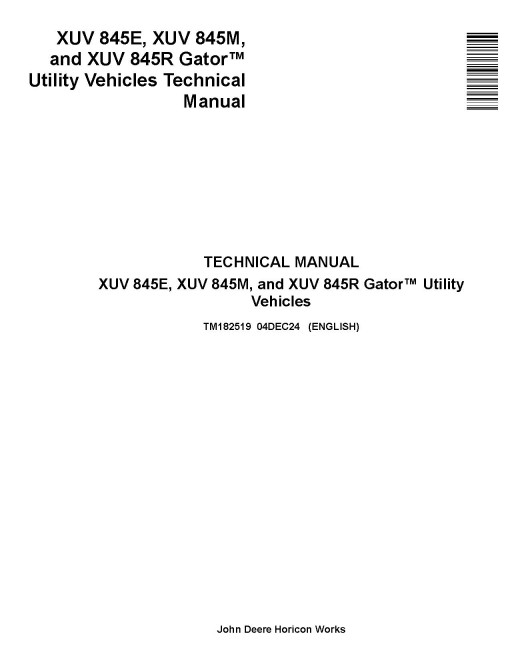

John Deere XUV 845E, XUV 845M and XUV 845R Gator Utility Vehicles Technical Manual (TM182519)

Illustrated factory Technical Manual for John Deere Gator Utility Vehicles Models XUV 845E, XUV 845M and XUV 845R.

This manual will assist you in diagnosing, and repairing for your gator utility vehicle or gator utility vehicle.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   XUV 845E
   XUV 845M
   XUV 845R

Format: PDF, 823 pages
Language: English
Publication Date: 04 Dec 2024
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Machine Specifications
   Engine Repair
      General Information
      Remove and Install
      Disassemble and Assemble
      Inspect
   Fuel, Air Intake, and Cooling System Repair
      Remove and Install
   Electrical Repair
      General Information
      Remove and Install
   Drivetrain Repair
      General Information
      Remove and Install
      Disassemble and Assemble
      Inspect
   Steering and Brake Repair
      General Information
      Remove and Install
      Disassemble and Assemble
   Attachments and Machine-Specific Repair
      Remove and Install
   Operator Station Repair
      Remove and Install
      Inspect
   General Information - Diagnostics
      General Information
   Diagnostic Trouble Codes
      AMS AutoTrac System Control Units
      Control Unit ATC
      Control Unit CRH
      Control Unit ECU
      Control Unit ICC
      Control Unit MTG (JDL/Telematics)
      Control Unit SCU
      Control Unit USC (AutoTrac)
   System Diagnostics Access
      Engine System
      Fuel, Air Intake, and Cooling System
      Electrical System
      Drivetrain System
      Steering and Brakes
      Operator Station
   Engine System Diagnostics
      General Information
      Operational and Preliminary Checks
      Theory of Operation
      Tests and Adjustments
      Diagnostics
   Fuel, Air Intake, and Cooling System Diagnostics
      General Information
      Theory of Operation
      Schematics
      Test and Adjustments
      Diagnostics
   Electrical System Diagnostics
      General Information
      Theory of Operation - Starting, Charging, and Power Distribution
      Theory of Operation - Steering and Brakes
      Theory of Operation - Operator Station
      Theory of Operation - CAN Bus
      Theory of Operation - Engine
      Theory of Operation - Lighting
      Theory of Operation - Drivetrain
      Theory of Operation - Fuel, Air Intake, and Cooling
      Schematics
      Tests and Adjustments
      Diagnostics - Starting, Charging, and Power Distribution
      Diagnostics - Steering and Brakes Systems
      Diagnostics - Operator Station System
      Diagnostics - CAN Bus System
      Diagnostics - Engine System
      Diagnostics - Lighting System
      Diagnostics - Drivetrain System
      Diagnostics - Fuel, Air Intake, and Cooling
   Electrical Control Unit Diagnostics
      General Information
      Theory of Operation
      Schematics
      Tests and Adjustments
      Diagnostics
   Electrical Systems-Components
      Wiring Harness Routing and Connector ID
   Drivetrain System Diagnostics
      Theory of Operation
      Test and Adjustments
      Diagnostics
   Steering and Brake System Diagnostics
      Theory of Operation
      Schematics
      Test and Adjustments
      Diagnostics
   Operator Station Diagnostics
      General Information
      Operational and Preliminary Checks
      Theory of Operation - HVAC
      Schematics - HVAC
      Component Locations - HVAC
      Test and Adjustments
      Diagnostics- HVAC
   Special Tools
      Service Tools and Kits
   APPENDIX
