John Deere SideHill 9550 (SN. up to 695700) Combines Technical Manual (TM1832)

Illustrated factory Technical Manual for John Deere SideHill Combines Models 9550.

This manual will assist you in diagnosing, and repairing for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   SideHill 9550 (SN: -695700)

Format: PDF, 273 pages
Language: English
Publication Date: 14 Jan 2002
Table of Contents:
   Introduction
      Foreword
   General
      Safety
      Identification Number Location
      Specifications
   Electrical System
      SideHill Control Unit
   Power Train Repair

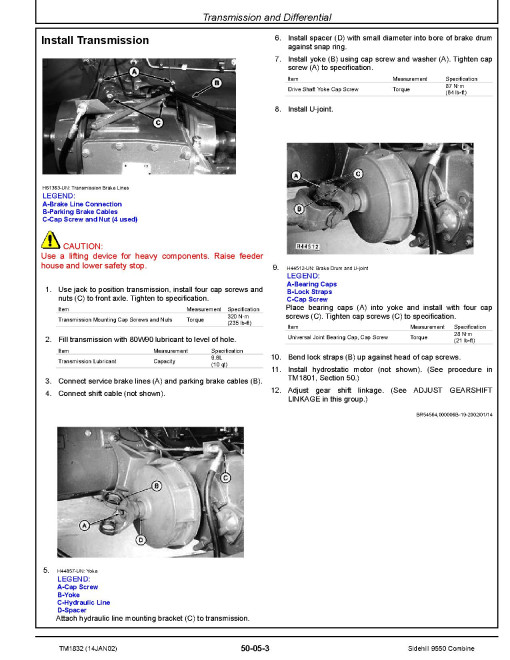

      Transmission and Differential
      Ring and Pinion Final Drive
   Power Steering and Brakes
      Brakes
   Hydraulic Repair
      Hydraulic Valves
   Header Drive Repair
      Header Drive Shaft Repair
   Feeder House Repair
      Feeder House/Conveyor
      Feeder House Conveyor Drum

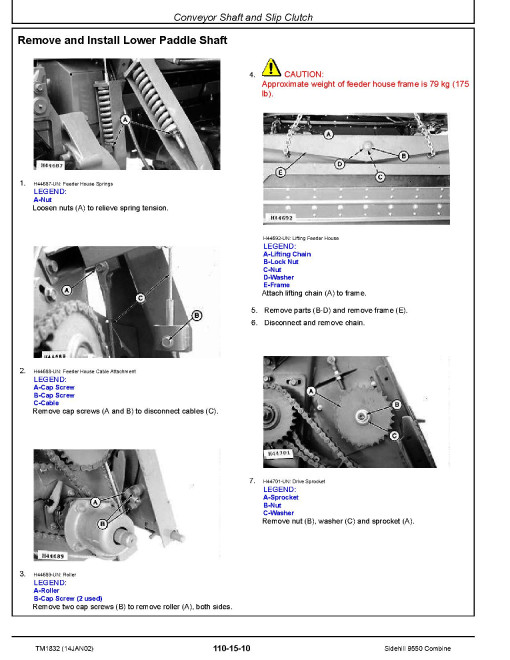

      Conveyor Shaft and Slip Clutch
   General
      Identification Number Location
      Specifications
      Diagnostic and Testing Procedures
      Leveling System Operational Checkout
   Observable Symptoms
      Electrical
      Hydraulics
   Electrical System Operation and Test
      General Information
      Accessing Diagnostic Trouble Codes and Addresses
      Diagnostic Trouble Codes
      Diagnostic Addresses By Function
      Diagnostic Addresses By Controller
      Quick Cal Procedures
      Machine Setting Addresses
      SideHill Electrical System Diagnostics

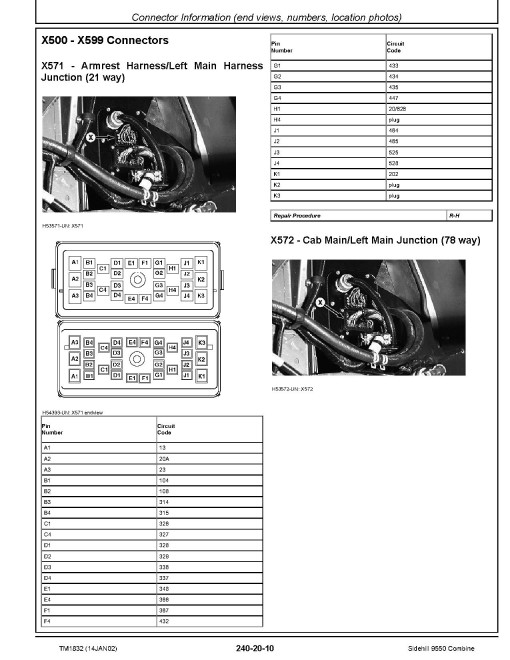

      Connector Information (end views, numbers, location photos)
   Hydraulic Operations And Tests
      Hydraulic System General Information
      SideHill Leveling System
      Component Identification
