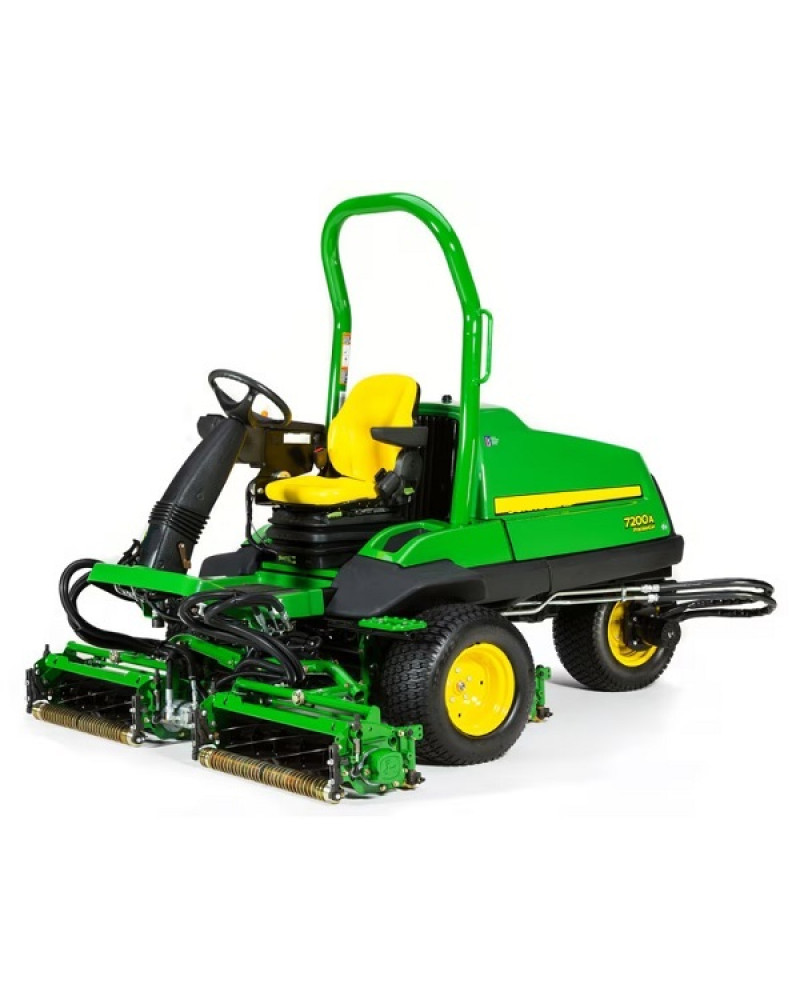

John Deere 7200A and 7400A (SN from 110001) Trim and Surrounds Mowers Technical Manual (TM185219)

Illustrated factory Technical Manual for John Deere Trim and Surrounds Mowers Models 7200A and 7400A.

This manual will assist you in diagnosing, and repairing for your trim and surrounds mower.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   7200A (SN: 110001-)
   7400A (SN: 110001-)

Format: PDF, 832 pages
Language: English
Publication Date: 09 Oct 2023
Table of Contents:

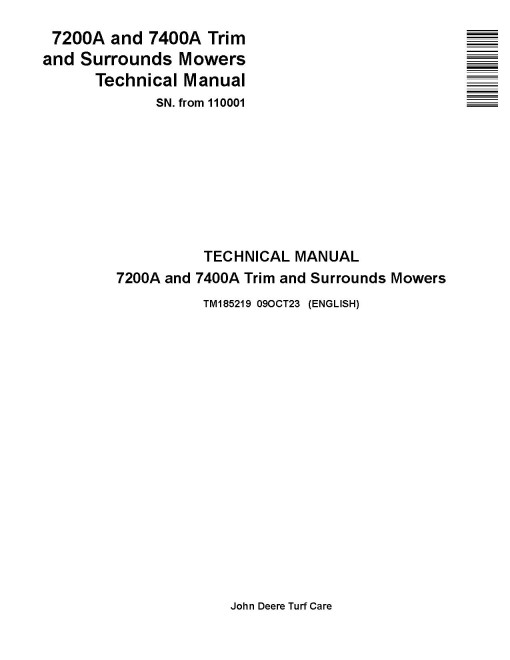

   Introduction
      Foreword
      Trademarks
   General Information
      Safety
      General Specifications
      Fuel, Lubricants, and Coolant
      Machine Specifications
   Engine Repair-3TNV80F
      General Information

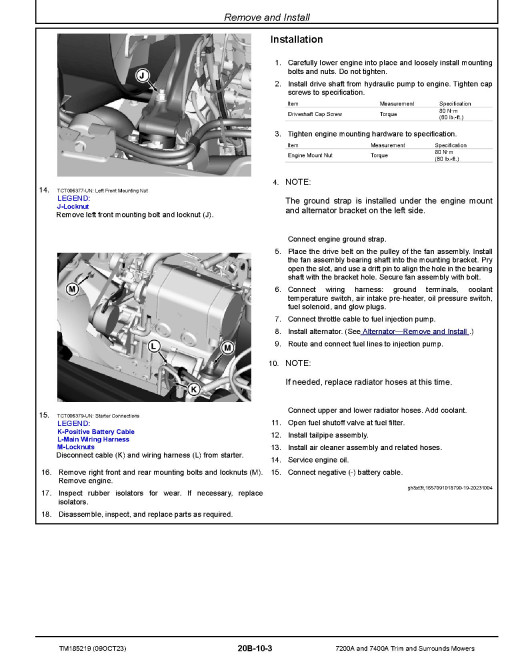

      Remove and Install

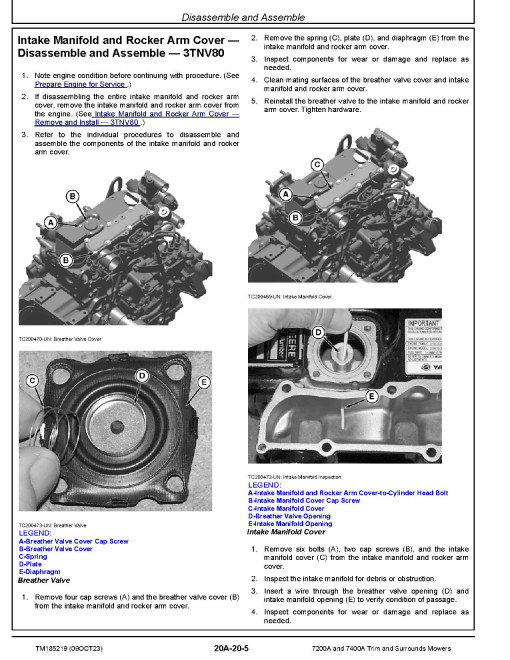

      Disassemble and Assemble
      Inspect
   Engine Repair-3TNV84T
      General Information
      Remove and Install
      Disassemble and Assemble
      Inspect
   Engine Repair-3TNV86CT
      Summary of References
      Remove and Install
   Electrical Repair
      Remove and Install
      Disassemble and Assemble
      Inspect
   Drivetrain Repair
      General Information
      Remove and Install
      Disassemble and Assemble
      Inspect
   Steering and Brake Repair
      General Information
      Remove and Install
   Hydraulics Repair
      General Information
      Remove and Install
      Disassemble and Assemble
      Inspect
   Attachments and Machine-Specific Repair
      General Information
      Remove and Install
      Disassemble and Assemble
      Inspect
   Diagnostic Trouble Codes
      ECU - Diagnostic Trouble Codes
      VCU - Diagnostic Trouble Codes
      PDU - Diagnostic Trouble Codes
   System Diagnostic Access
      Engine
      Electrical
      Electrical Control Units
      Drivetrain
      Steering and Brakes
      Hydraulics
      Attachments and Machine-Specific Diagnostics
   Engine System Diagnostics - 3TNV80F
      Operational and Preliminary Checks
      Theory of Operation
      Diagnostics
      Tests and Adjustments
   Engine System Diagnostics - 3TNV84T
      General Information
      Theory of Operation
      Tests and Adjustments
      Diagnostics
   Engine System Diagnostics - 3TNV86CT
      General Information
   Electrical System Diagnostics
      Theory of Operation

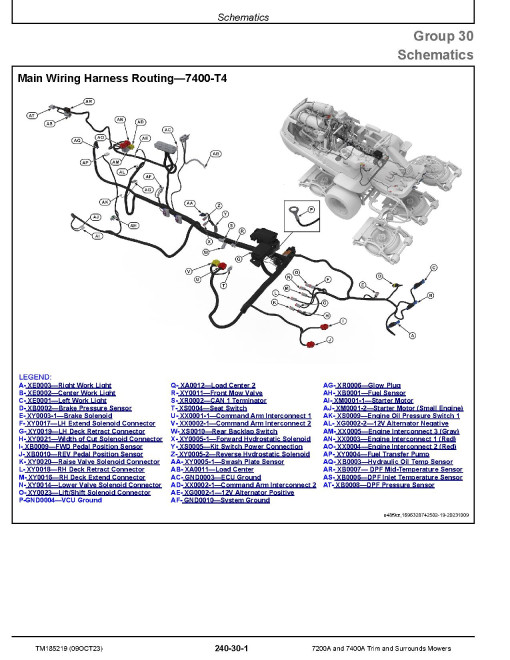

      Schematics
      Tests and Adjustments
   Electrical Control Unit Diagnostics
      General Information
      Theory of Operation
      Tests and Adjustments
   Electrical Connectors
      Connector
      Electrical Assembly Connectors
      Sensor Connectors
      Light Connectors
      Fuse Connectors
      Motor Connectors
      Switch Connectors
      Solenoid Connectors
      Diode Connectors
   Drivetrain System Diagnostics
      Theory of Operation
      Components
      Diagnostics
   Steering and Brake System Diagnostics
      Theory of Operation
      Component Location
      Tests and Adjustments
      Diagnostics
   Hydraulic System Diagnostics
      General Information
      Theory of Operation
      Hydraulic Schematics
      Components
      Tests and Adjustments
      Diagnostics
   Attachments and Machine-Specific Diagnostics
      General Information
      Theory of Operation
      Tests and Adjustments
      Diagnostics
   Tools, Equipment, and Other Material
      Tools
      Section 220A
      Section 220B
      Section 220C
