John Deere 4510, 4610, 4710 Compact Utility Tractors Diagnostic and Repair Technical Manual (tm1986)

Illustrated Factory Diagnostic, Test and Repair Technical Manual for John Deere Compact Utility Tractors 4510, 4610, 4710

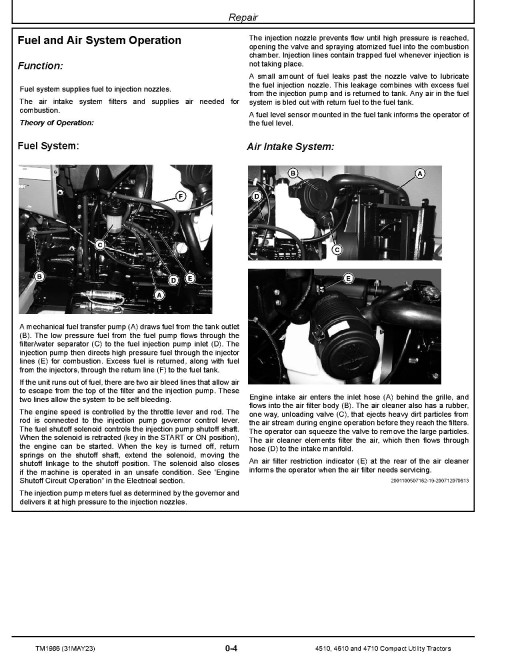

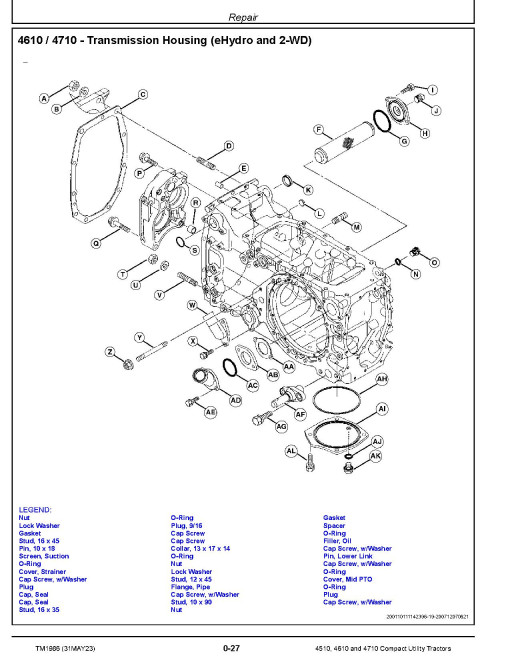

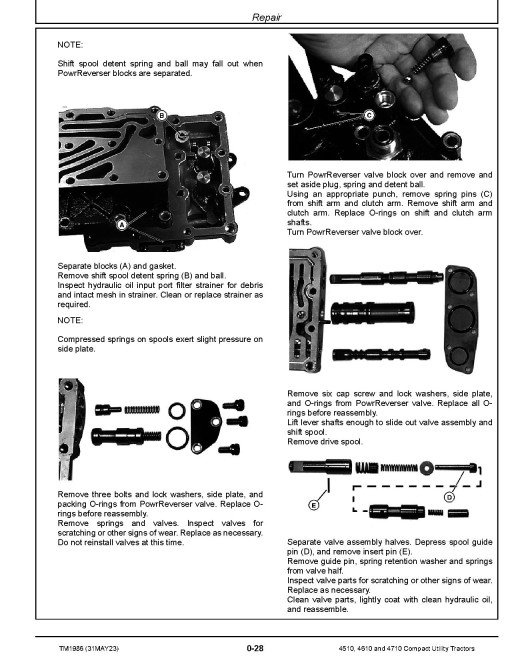

This manual contains high quality images, circuit diagrams, instructions to help you to maintenance, trounleshooting, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 1236 pages

Covered models:
  4510
  4610
  4710

Contents:

   Manual Description
      Safety
   Specifications & Information
      Fastener Torques
      O-Ring Seal Service Recommendations
      O-Ring Seal Service Recommendations
      General Information
      Coolant Specifications
      Serial Number Locations
      Interlock System
   Engine - Diesel
      Specifications
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Electrical
      General Information
      Specifications
      Component Location
      System Schematics
      Troubleshooting
      Theory and Diagnosis
      Tests and Adjustments
      Service ADVISOR™ Test and Adjustments
   Electrical
      EEC Electrical Section
      Component Location
      System Schematics
      Troubleshooting
      Theory and Diagnosis
   Power Train - Gear
      Specifications
      Component Location
      Theory of Operation
      Tests and Adjustments
      Repair
   Power Train - Hydrostatic
      Specifications
      Component Location
      Schematics
      Theory of Operation
      Troubleshooting
      Diagnostics
      Tests and Adjustments
      Repair
   Power Train - PRT
      Specifications
      Component Location
      Theory of Operation
      Tests and Adjustments
      Repair
   Power Train - Final Drive
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
      PTO Theory of Operation
      PTO Repair
   Hydraulics
      Specifications
      Component Location
      Schematics & Harnesses
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Steering
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Brakes
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Miscellaneous
      Specifications
      Repair
