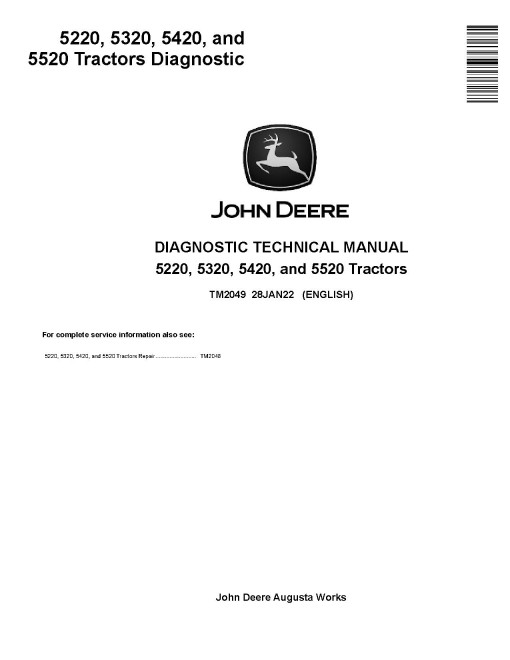

John Deere 5220, 5320, 5420 and 5520 Tractors Diagnostic Manual (TM2049)

Illustrated factory Diagnostic Manual for John Deere Tractors Models 5220, 5320, 5420 and 5520.

This manual will assist you in diagnosing for your tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   5220
   5320
   5420
   5520

Format: PDF, 908 pages
Language: English
Publication Date: 28 Jan 2022
Table of Contents:
   Introduction
      Foreword

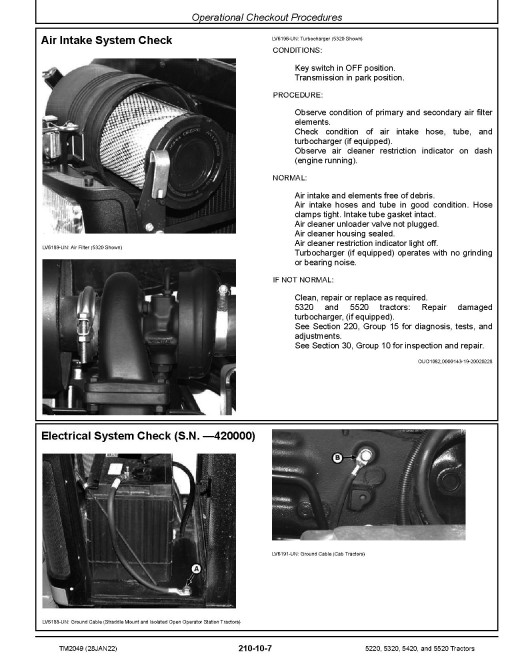

   Operational Checkout Procedures
      Operational Checkout Procedures
   Engine Operation, Tests, and Adjustments
      Component Location

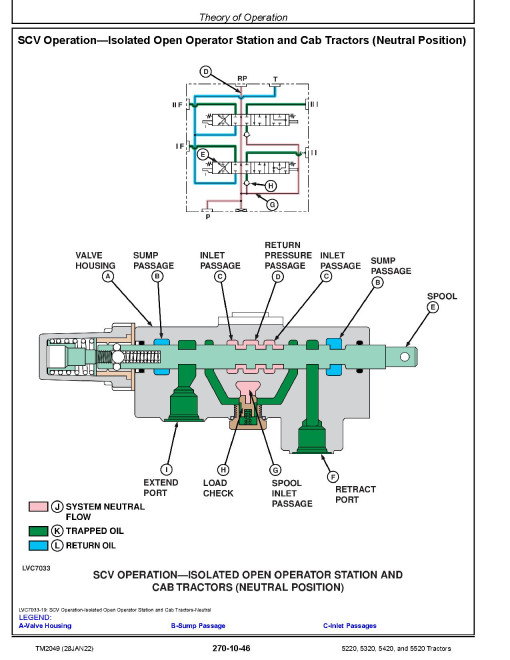

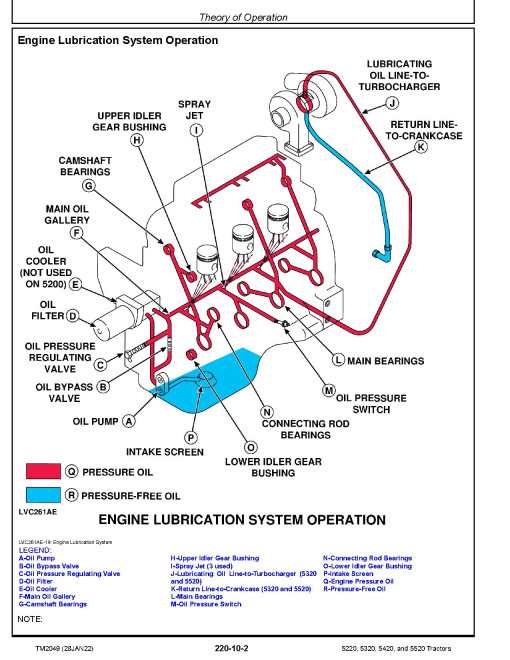

      Theory of Operation
      Diagnosis, Tests, and Adjustments
   Fuel/Air Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis, Tests and Adjustments
   Electrical System Operation, Test & Adjust
      Component Location
      Theory of Operation
      Diagnosis, Test and Adjust
      Wiring Schematics
   Power Train Operation, Tests and Adjustments
      Component Location-CollarShift/SyncShuttle Transmission
      Component Location-PowrReverser Transmission
      Theory of Operation-CollarShift/SyncShuttle Transmission
      Theory of Operation-PowrReverser Transmission
      Diagnosis, Tests, and Adjustments-CS/SS Transmission
      Diagnosis, Tests, and Adjustments-PowrReverser
   Steering and Brake Operation, Test & Adjust
      Component Location
      Theory of Operation
      Diagnosis, Tests and Adjustments
   Hydraulic System Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Hydraulic Tests-Without SCV
      Hydraulic Tests-With SCV
      Hydraulic Tests-All
      Adjustments
      Hydraulic Schematics
   Operator Station
      Component Location
      Theory of Operation
      Diagnosis, Tests, and Adjustments
   Dealer Fabricated Tools
      Dealer Fabricated Tools
