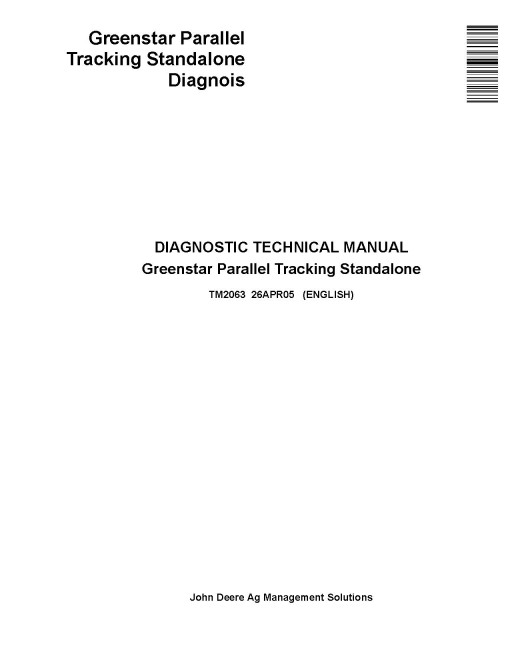

John Deere Greenstar Parallel Tracking Standalone Systems Diagnostic Technical Manual (TM2063)

Illustrated factory Diagnostic Technical Manual for John Deere Greenstar Systems Models Parallel Tracking Standalone used with 4700, 4710 Self-Propelled Sprayers.

This manual will assist you in diagnosing for your sprayer self-propelled or system.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   4700 Self-Propelled Sprayer
   4710 Self-Propelled Sprayer

Format: PDF, 190 pages
Language: English
Publication Date: 26 Apr 2005
Table of Contents:
   Introduction
      Foreword
   General
      Safety
      GREENSTAR Component Identification
      GREENSTAR Component Software Identification
   Parallel Tracking Diagnostic Trouble Codes
      FIELD DOC Basic Warning Messages
      FIELD DOC Connect Warning Messages
      GREENSTAR AutoTrac Assisted Steering System
      GREENSTAR Display
      GREENSTAR Mobile Processor
      GREENSTAR Parallel Tracking
      KeyCard and PC Data Storage Card
      STARFIRE Receiver
      STARFIRE iTC Receiver
      Terrain Compensation Module
   Observable Symptoms
      GREENSTAR Parallel Tracking Systems
   Electrical System Diagnosis and Test
      How to Use this Diagnostic Information
      General Electrical System Diagnostic Information
      Diagnostic Schematic and Schematic Symbols Information
      Accessing GREENSTAR Fault Codes
      GREENSTAR Caution Messages
      GREENSTAR Fault Codes
      GREENSTAR WARNING Messages
      CAN Bus Type Identification
      CAN Bus Diagnostics - Type A
      CAN Bus Diagnostics - Type B
      CAN Bus Diagnostics - Type C
      GREENSTAR Display Diagnostics
      GREENSTAR Mobile Processor Diagnostics

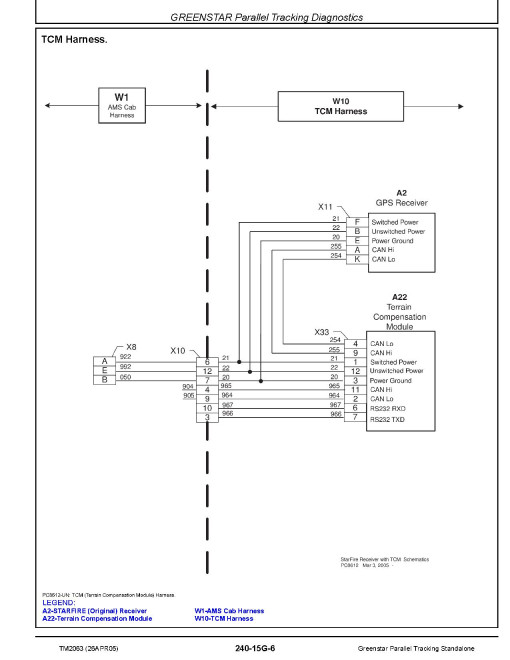

      GREENSTAR Parallel Tracking Diagnostics
      KeyCard and PC Data Storage Card Diagnostics
      Power Type Identification
      Power Diagnostics Vehicle Harness - Type A
      Power Diagnostics Gator Harness - Type B
      RTK (Real Time Kinematic) Type Identification
      RTK with STARFIRE iTC Diagnostics - Type A
      RTK with STARFIRE (Original) Diagnostics - Type B
      Serial Port Diagnostics

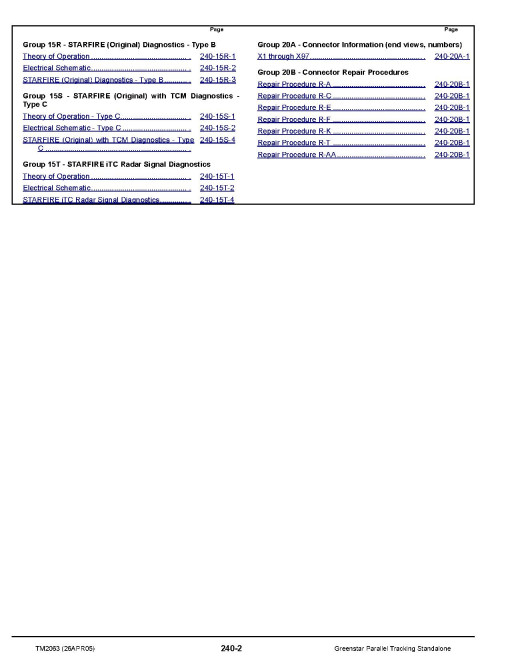

      STARFIRE Type Identification

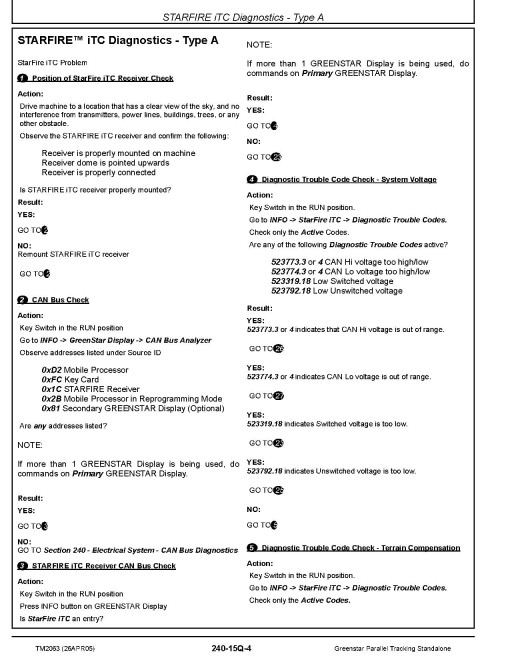

      STARFIRE iTC Diagnostics - Type A
      STARFIRE (Original) Diagnostics - Type B
      STARFIRE (Original) with TCM Diagnostics - Type C
      STARFIRE iTC Radar Signal Diagnostics
      Connector Information (end views, numbers)
      Connector Repair Procedures
