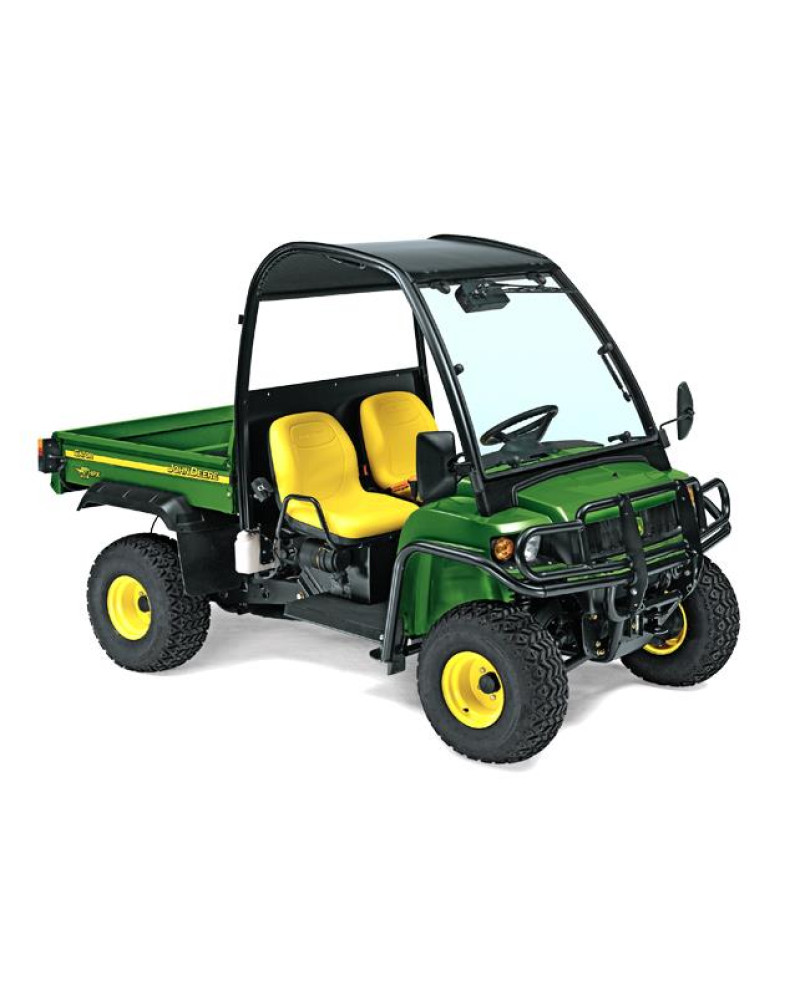

John Deere HPX 4X2 and HPX 4X4 Gator Utility Vehicles Technical Manual (TM2195)

Illustrated factory Technical Manual for John Deere Gator Utility Vehicles Models HPX 4X2 and HPX 4X4.

This manual will assist you in diagnosing, and repairing for your gator utility vehicle.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   HPX 4X2
   HPX 4X4

Format: PDF, 1084 pages
Language: English
Publication Date: 16 Feb 2021
Table of Contents:
   Introduction
      Foreword
   Safety
      Safety
   Specifications and Information
      Fastener Torques
      O-Ring Seal Service Recommendations
      General Information
      Coolant
      Serial Number Locations
   Engine - Gas (Liquid Cooled)
      Specifications and Tools
      Component Location
      Diagnostics
      Tests and Adjustments
      Repair
   Engine - Diesel
      Specifications-3TNE68
      Specifications-3TNV70
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Electrical
      General Information
      Specifications
      Component Location (SN -040000)
      Component Location (SN 040001-)
      Schematics and Harnesses (SN -040000)
      Schematics and Harnesses (SN 040001-110000)
      Schematics and Harnesses (SN 110000-)
      Operation and Diagnostics
      Tests and Adjustments
      Repair
      Attachments Theory of Operation
      Cargo Box Lift Kit
      Auxiliary Alternator Kit (Gas Engine)
      Winch Kit
      Backup Alarm Kit
      Hydraulic Front Implement Lift Kit
      Cab Electrical
      Horn Kit
      Optional Light Kits
      Optional Deluxe Light Kit
      Homologated Light and Horn Kit
   Power Train
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Steering
      Specifications
      Component Location
      Theory of Operation
      Diagnostics
      Tests and Adjustments
      Repair
   Brakes
      Specifications
      Component Location (SN -040000)
      Component Location (SN 040001-)
      Component Location (SN 090001-)
      Theory of Operation
      Diagnostics
      Tests and Adjustments (SN -040000)
      Tests and Adjustments (SN 040001-)
      Repair
   Miscellaneous
      Specifications
      Component Location
      Repair
