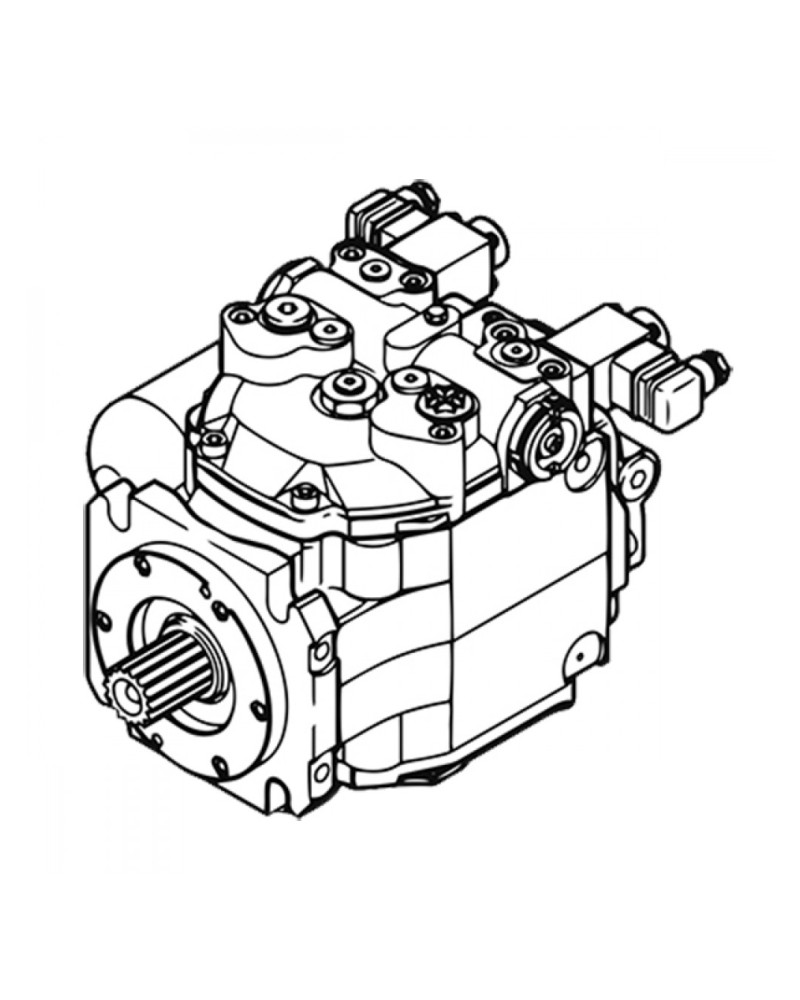

Linde BPV 100S, BPV 35S, BPV 50S and BPV 70S Hydraulic Pumps Technical Manual (TM2226)

Illustrated factory Technical Manual for Linde Hydraulic Pumps Models BPV 100S, BPV 35S, BPV 50S and BPV 70S.

This manual will assist you in diagnosing, and repairing for your hydraulic pump.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   BPV 100S
   BPV 35S
   BPV 50S
   BPV 70S

Format: PDF, 40 pages
Language: English, Italiano, Deutsch, Frangaise, Espanol
Table of Contents:
   General remarks
   Pump circuit
   Total view of the pump
   Repair-jobs
      Changing shaft seal

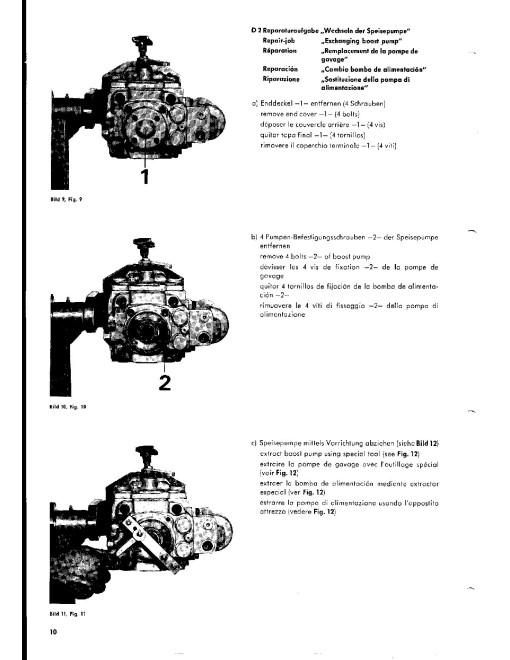

      Exchanging boost pump
      Checking or exchanging valves
      Checking or exchanging valve plate
      Checking or exchanging rear shaft bearing
      Dis-/remounting cylinder barrel
      Checking axial play of cylinder
      Dis-/remounting drive shaft
      Dis-/remounting housing cover
      Checking control pistons
      Dis-/remounting retainer plate and pistons

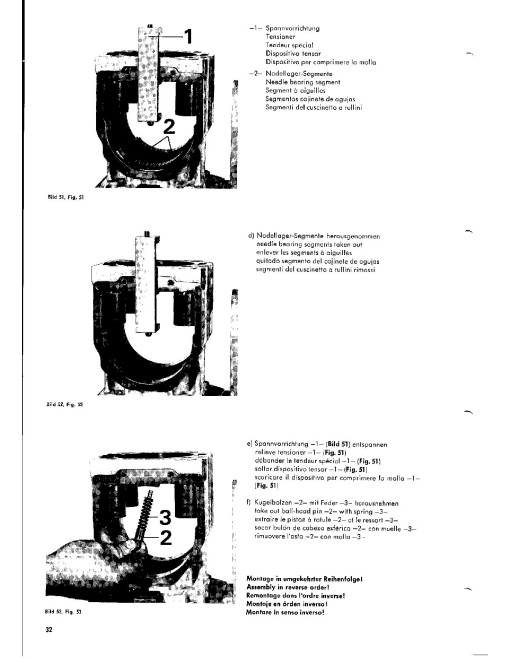

      Dis-/remounting swash plate
      Dismounting control cylinder
      Checking mechanical neutral position
