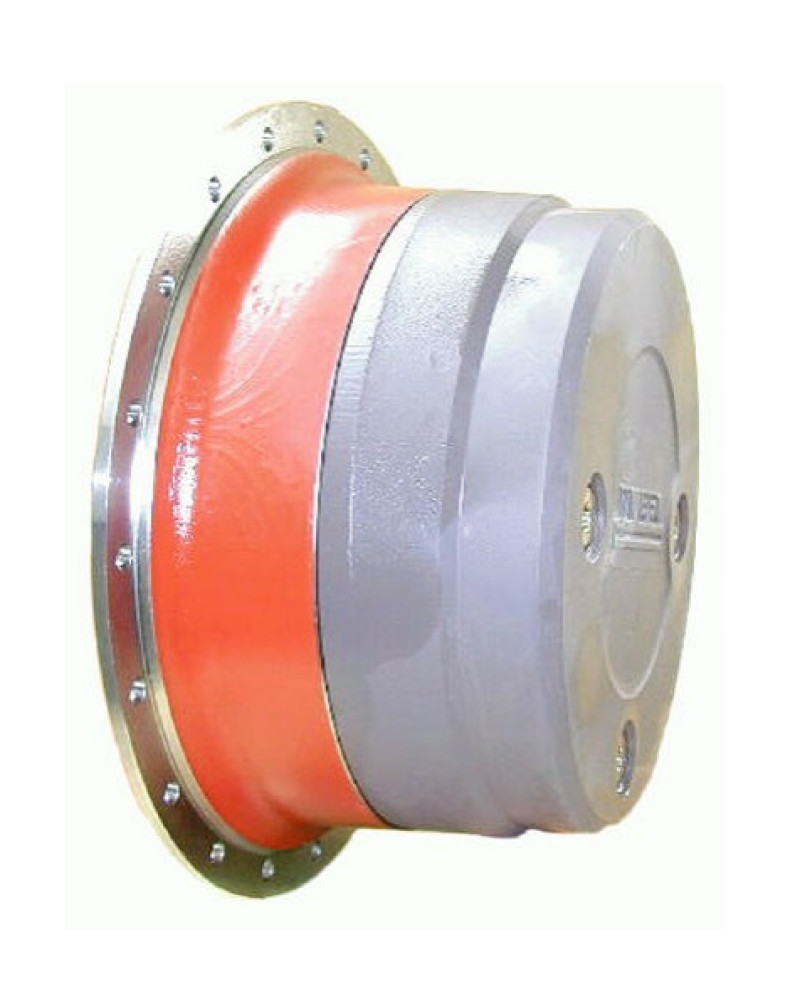

Liebherr FAT400D, FAT450D, FAT500D and FAT550D Final Drive Travel Gear Repair Technical Manual (TM2228)

Illustrated factory Repair Technical Manual for Liebherr Final Drive Travel Gears Models FAT400D, FAT450D, FAT500D and FAT550D.

This manual will assist you in assembling, disassembling, and repairing for your final drive travel gear.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FAT400D
   FAT450D
   FAT500D
   FAT550D

Format: PDF, 21 pages
Language: English
Table of Contents:
   Repair instructions
   Table of contents
   General data from FAT 400 and FAT 450
   General data from FAT 500 and FAT 550

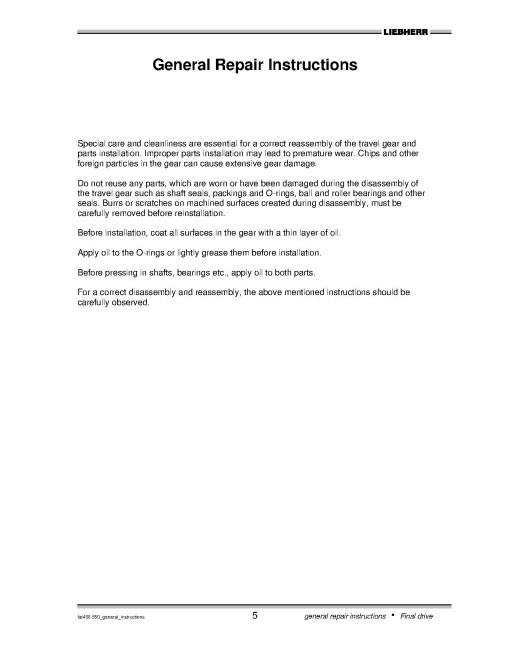

   General Repair Instructions
   Handling for axial face seals
   Replace disk brake
   Replace axial face seals

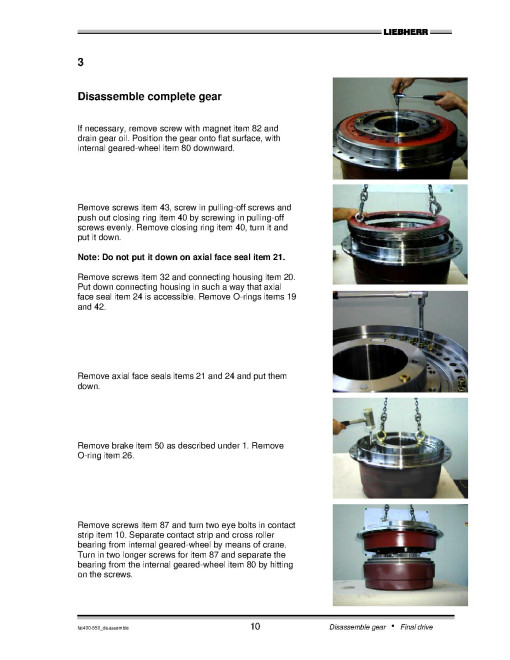

   Disassemble complete gear

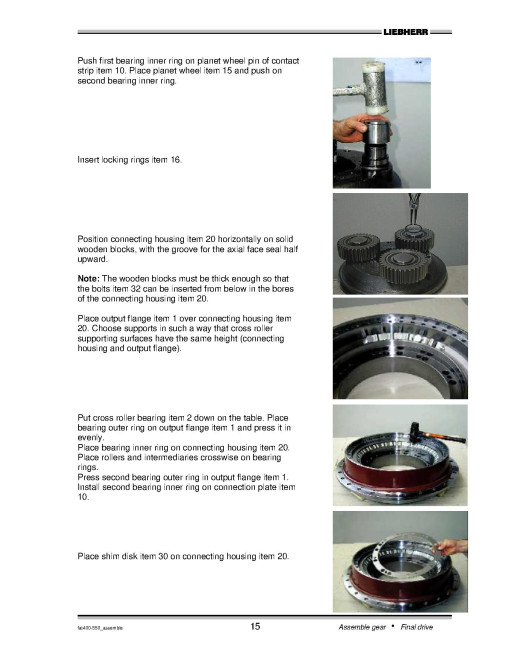

   Assemble complete gear
   List of parts
   Sectional drawing
