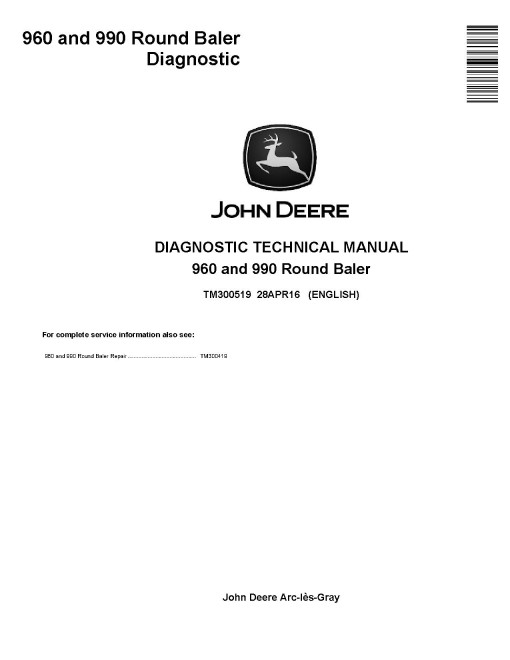

John Deere 960 and 990 Round Balers Diagnostic Manual (TM300519)

Illustrated factory Diagnostic Manual for John Deere Round Balers Models 960 and 990.

This manual will assist you in diagnosing for your round baler.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   960
   990

Format: PDF, 514 pages
Language: English
Publication Date: 28 Apr 2016
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety Information
      General References
   Diagnostic Trouble Codes
      Description
      Diagnostic Trouble Code List
   Troubleshooting
      Troubleshooting
   Electrical System
      Schematic
      Diagnostic Tests
      Diagnostic Modes/ISOBUS Baler
      Machine Setup - ISOBUS Baler
   Connector and Component Information
      Electrical Component Location
      Component Information - Assemblies
      Component Information - Position Lights
      Component Information - Signal Lights
      Component Information - Relays
      Component Information - Motors
      Component Information - CAN BUS Terminating Resistors
      Component Information - Potentiometers
      Component Information - Switches
      Component Information - Semiconductors
      Component Information - Wiring Harnesses

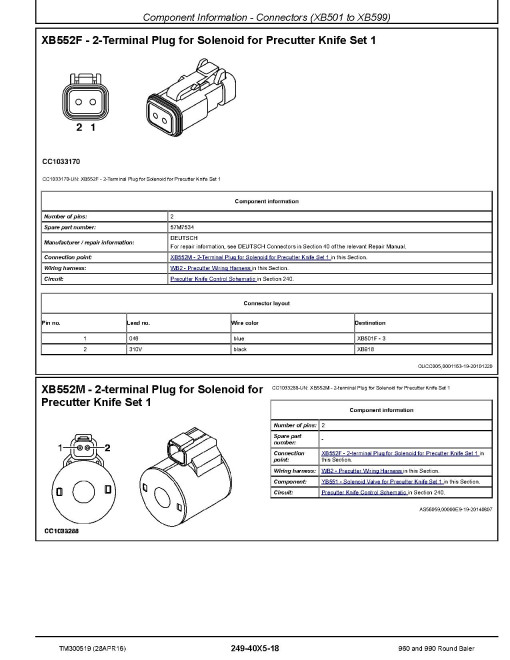

      Component Information - Connectors (XB101 to XB199)
      Component Information - Connectors (XB301 to XB399)
      Component Information - Connectors (XB401 to XB499)
      Component Information - Connectors (XB501 to XB599)
      Component Information - Connectors (XB701 to XB799)
      Component Information - Connectors (XB801 to XB899)
      Component Information - Splices (XB901 to XB999)
      Component Information - Connectors (Others)
      Component Information - Solenoids
   Lubrication System - Operation and Tests
      Theory of Operation
      Lubrication System - Component Location
   Air Brake System - Operation and Tests
      Safety
      Air Brake System - Description
      Air Brake System - Tests
   Hydraulic Brake System - Operation and Tests

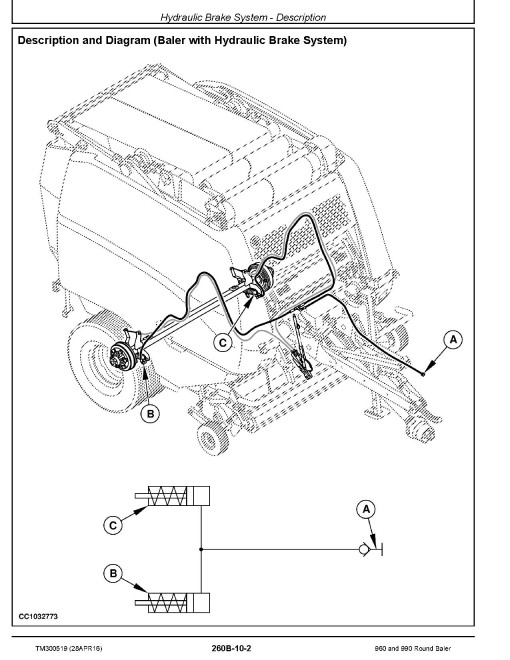

      Hydraulic Brake System - Description
      Hydraulic Brake System - Tests
   Hydraulic System - Operation and Tests
      Safety
      General Information
      Bale Density and Gate Control - Description

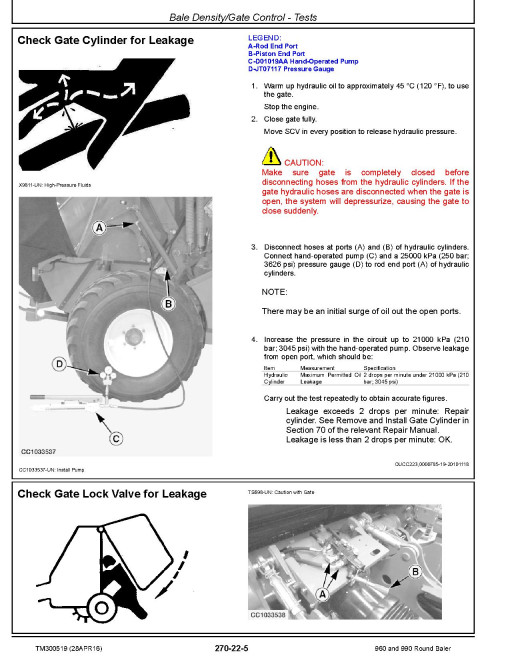

      Bale Density/Gate Control - Tests
      Rotary Feeder Hydraulic System without Precutter Device - Description
      Rotary Feeder Hydraulic System with 13 Knife Precutter Device - Description
      Rotary Feeder Hydraulic System with 25 Knife Precutter Device - Description
   Special Tools
      Special Tools (Available as Spare Parts)
      Section 260A
      Section 260B
