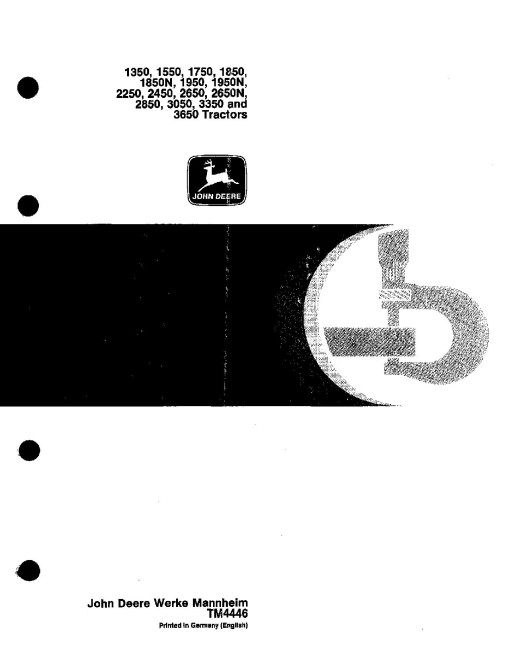

John Deere 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3350 and 3650 Tractors Operation and Test Manual (TM4446)

Illustrated factory Operation and Test Manual for John Deere Tractors Models 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3350 and 3650.

This manual will assist you in diagnosing, and troubleshooting for your tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1350
   1550
   1750
   1850
   1950
   2250
   2450
   2650
   2850
   3050
   3350
   3650

Format: PDF, 591 pages
Language: English
Publication Date: 01 Aug 1990
Table of Contents:
   SAFETY
   ENGINE
      Radiator and viscous fan drive
      Tests
   FUEL AND AIR INTAKE SYSTEM
      Fuel tank, auxiliary fuel tank and water trap
      Cold weather starting aids
      Speed control linkage
      Air cleaner
   ELECTRICAL SYSTEM
      General
      Electrical diagrams (without cab)

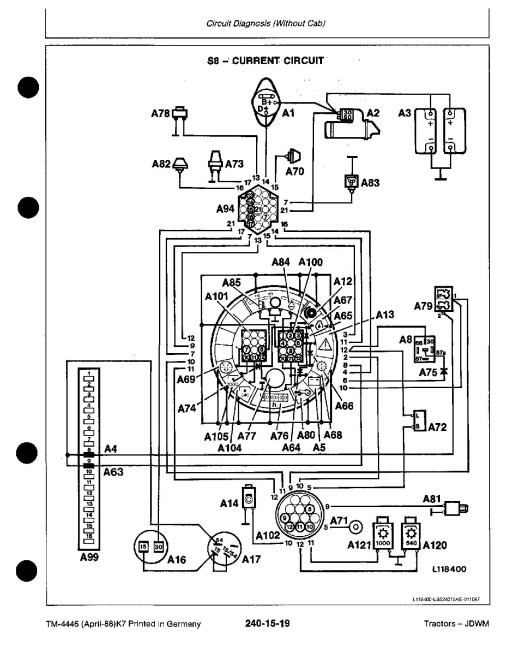

      Circuit diagnosis (without cab)
      Sealed-beam lighting equipment (see CTM-4459)
      Electrical diagrams (with MC1 cab)
      Circuit diagnosis (with MC1 cab)
      Electrical diagrams (with SG2 cab)
      Circuit diagnosis (with SG2 cab)
      Electrical diagrams (with digital speed-hour meter)
      Circuit diagnosis (with digital speed-hour meter)

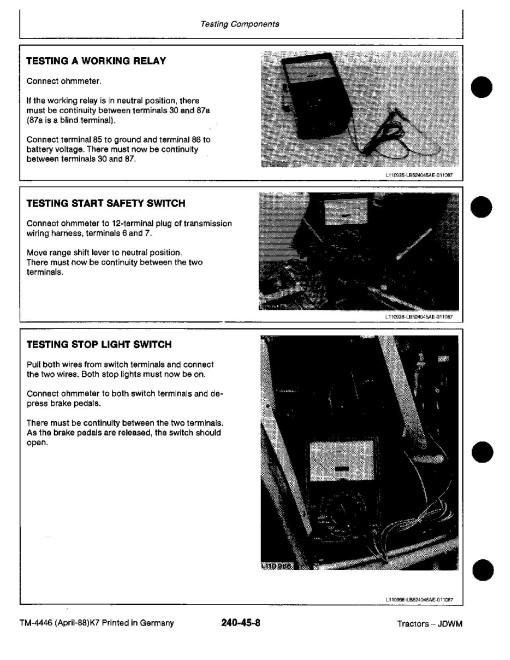

      Testing components
      Starting motor
      Alternator
   POWER TRAIN
      Clutch operating linkages
      Single-stage engine clutch
      Dual-stage engine clutch
      Hi-Lo shift unit
      Creeper transmission
      Hydrostatic creeper transmission
      Transmission shift linkages
      Synchronized transmission and transmission oil pump
      Collar shift transmission and transmission oil pumps
      Differential
      Final drives
      Independent PTO's
      Continuous-running PTO's
      Front PTO
      Front wheel drive u.j. drive shaft and disk clutch
   STEERING SYSTEM AND BRAKES
      Hydrostatic steering
      Power steering
      Manual steering
      Hydraulic brakes
      Handbrake
      Hydraulic trailer brake
   HYDRAULIC SYSTEM
      Operation and tests
      Valves, filters, oil cooler and oil reservoir
      Hydraulic pumps
      Rockshaft
      Front hitch
      Selective control valves (spool type)

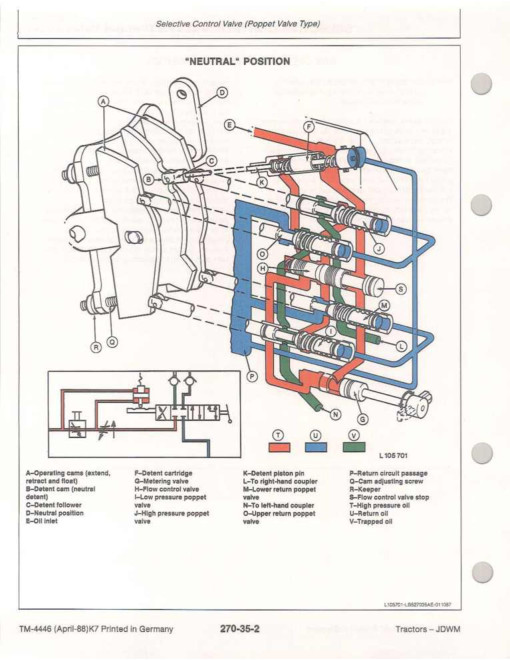

      Selective control valves (poppet valve type)
      ISO breakaway couplers
      ISO quick couplers
      Remote cylinder
   OPERATOR'S CABS
      Air conditioning system
      Cab ventilation and heating system - SG2 cab
      Cab ventilation and heating system - MC1 cab
