John Deere 664, 665R, 666, 666R Row-Crop Heads, 630, 630A, 645 and 645A Windrow Pickups Technical Manual (TM4530)

Illustrated factory Technical Manual for John Deere Row-Crop Heads Models 664, 665R, 666, 666R, Windrow Pickups Models 630, 630A, 645 and 645A.

This manual will assist you in diagnosing, and repairing for your row-crop head or windrow pickup.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:

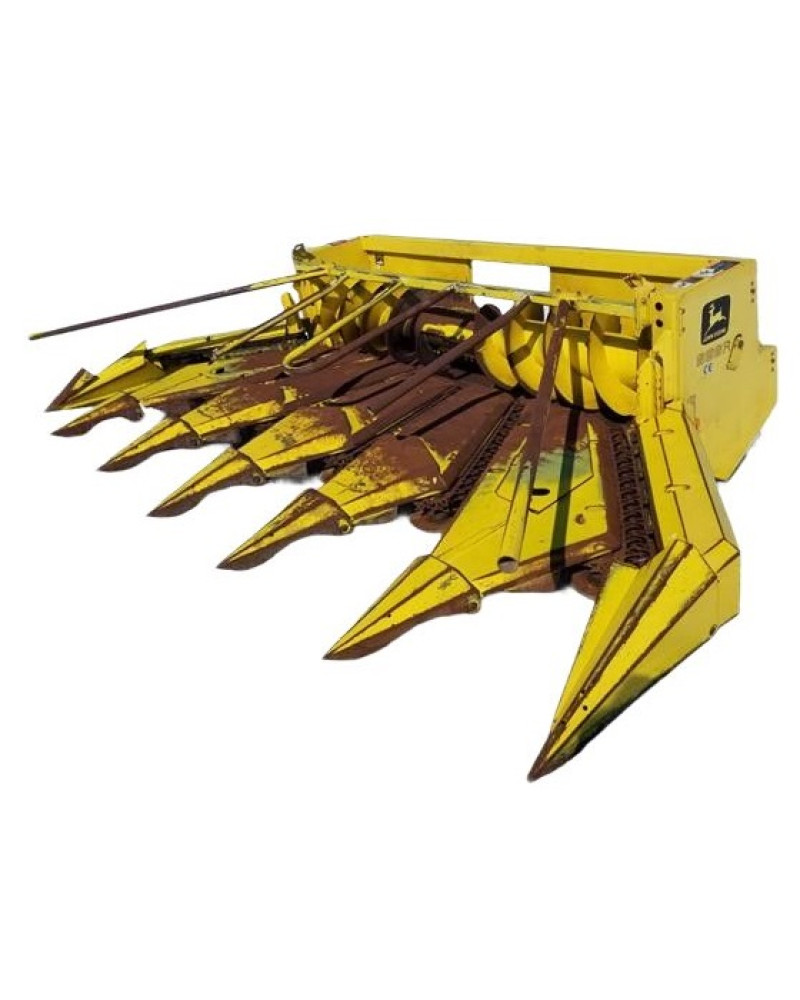

   664 Row-Crop Head
   665R Row-Crop Head
   666 Row-Crop Head
   666R Row-Crop Head
   630 Windrow Pickup
   630A Windrow Pickup
   645 Windrow Pickup
   645A Windrow Pickup

Format: PDF, 132 pages
Language: English
Publication Date: 15 Apr 1998
Table of Contents:
   Safety
      Safety Information
   General
      Torques for Hardware
      Lubricants
      Row-Crop Header Specifications
      Windrow Pickup Specifications
   664, 665R, 666 and 666R Row-Crop Headers
      Outer Units of 665R, 666 and 666R Headers

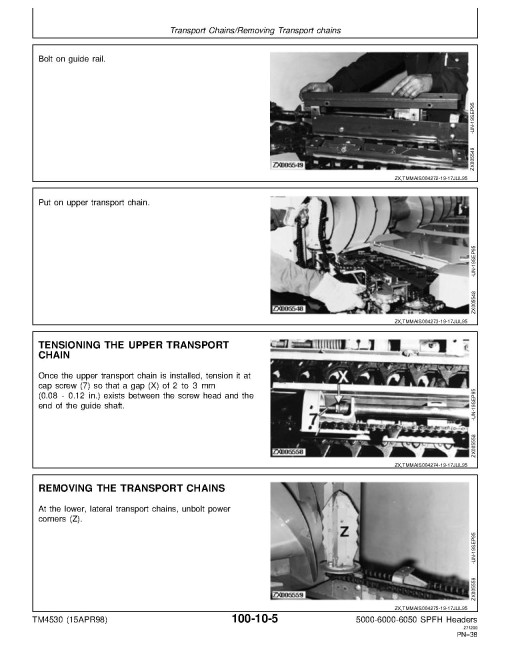

      Transport Chains
      Cutting Disks and Bearing Arms
      Drives
      Transmission

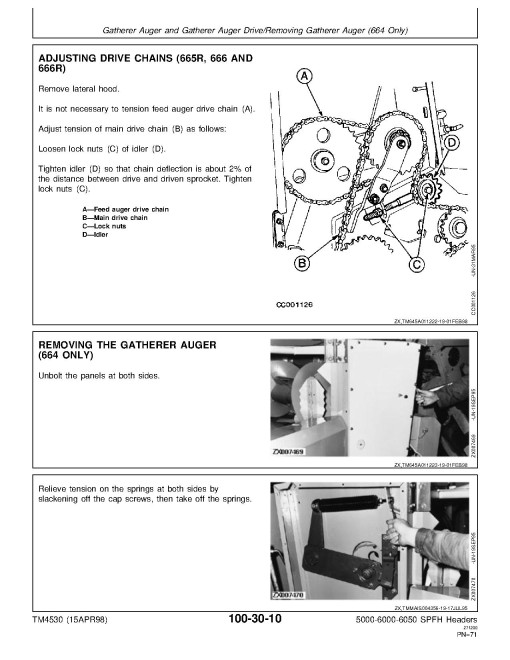

      Gatherer Auger and Gatherer Auger Drive
      Down-Crop Auger
      Troubleshooting
   630, 630A, 645 and 645A Windrow Pickups
      Pickup Frames

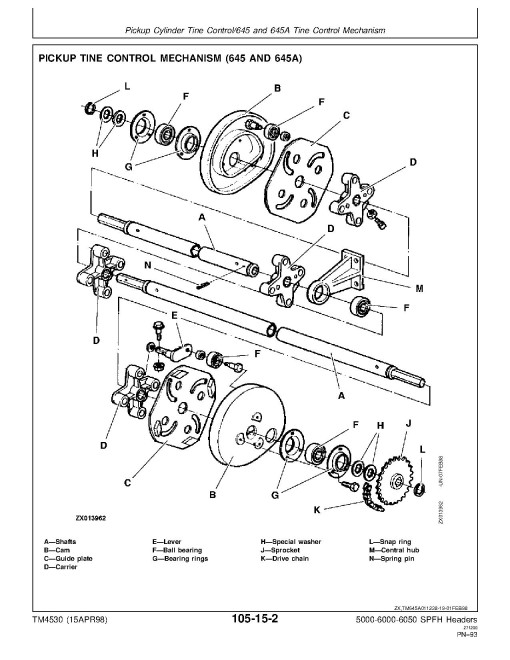

      Pickup Cylinder Tine Control
      Pickup Auger
      Pickup Drive
      Transport Frame
      Crop Deflector
      Troubleshooting
   Index
