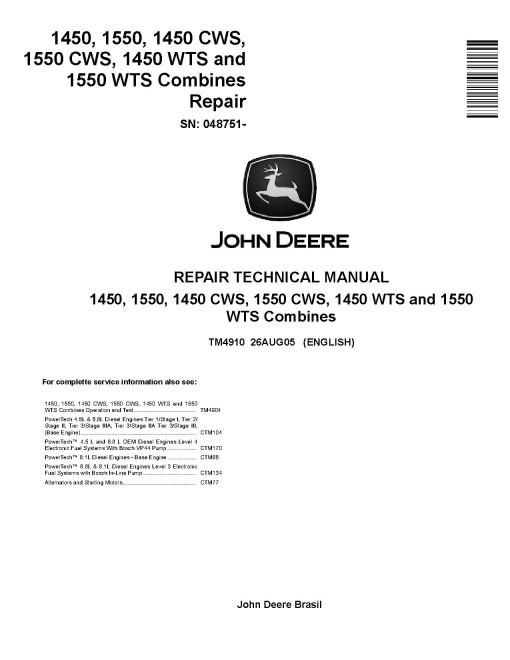

John Deere 1450, 1450 CWS, 1450 WTS, 1550, 1550 CWS and 1550 WTS Combines (SN. from 048751) Repair Manual (TM4910)

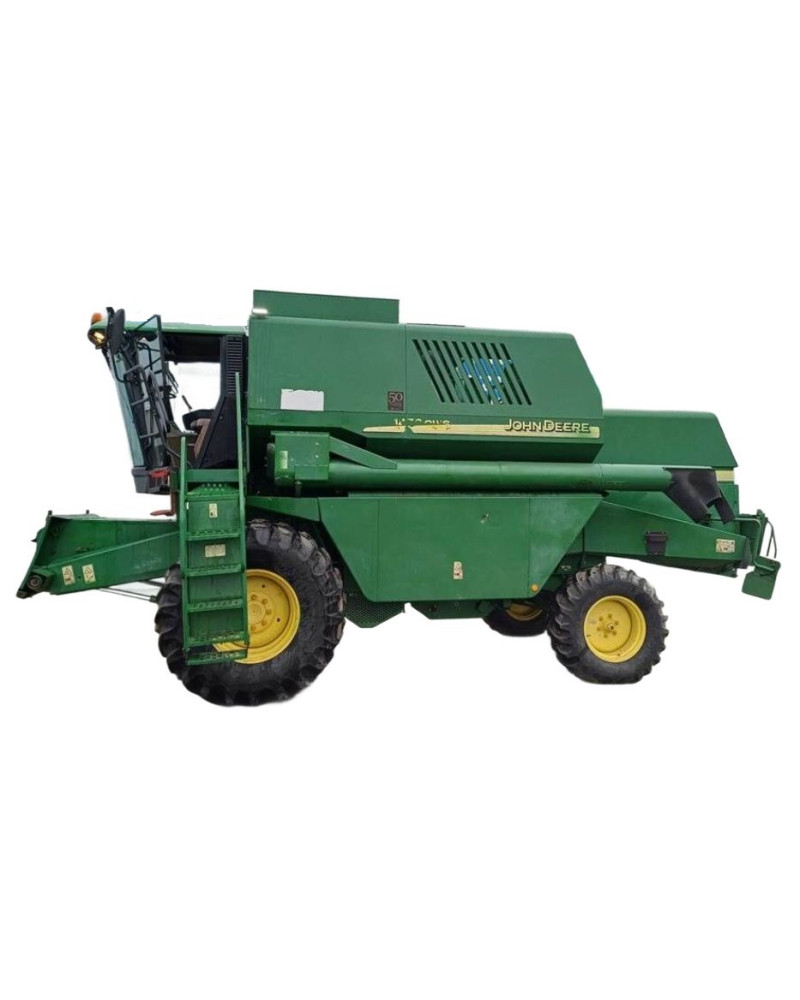

Illustrated factory Repair Manual for John Deere Combines Models 1450, 1450 CWS, 1450 WTS, 1550, 1550 CWS and 1550 WTS.

This manual will assist you in assembling, disassembling, and repairing for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1450 (SN: 048751-)
   1450 CWS (SN: 048751-)
   1450 WTS (SN: 048751-)
   1550 (SN: 048751-)
   1550 CWS (SN: 048751-)
   1550 WTS (SN: 048751-)

Format: PDF, 398 pages
Language: English
Publication Date: 26 Aug 2005
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety Information
      Specifications
      Tune-Up and Adjustments
   Engine
      Diesel Engine Oil
      Engine Removal and Installation
   Fuel, Air Intake and Cooling Systems

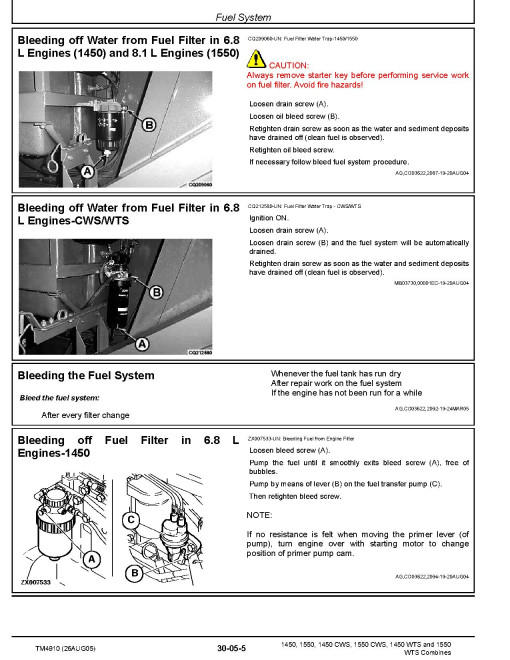

      Fuel System
      Air Intake System
      Cooling System
   Electrical System
      General Information
      Battery
      Alternator
      Starting Motor
      Main Electrical System
      Low Shaft Speed Monitoring System
      Harvest Performance Monitor
      Operator Presence Switch
   Power Train
      Engine Output Shaft
      Transmission and Differential
      Final Drives
      Hydrostatic Ground Speed Drive
      Hydrostatic System Oil
      Hydrostatic Pump
      Tensioning Cylinder for Hydrostatic Pump
      Hydrostatic Drive Motor Removal
      Four-Wheel-Drive Hydraulic Motor
      Tires and Wheels
      Oil Cooler

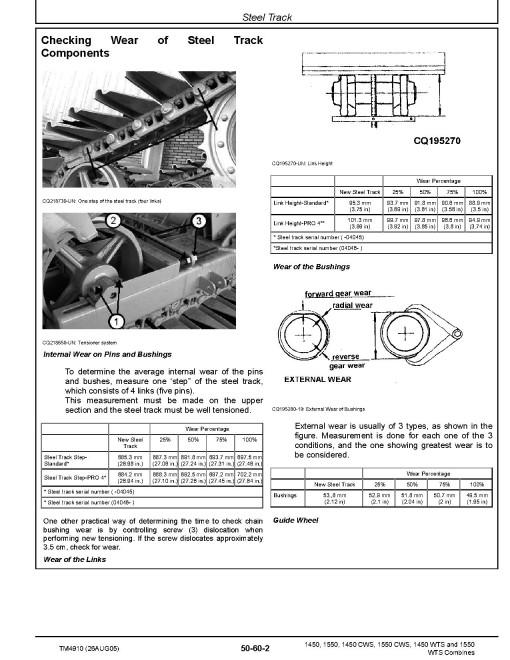

      Steel Track
   Brakes, Steering and Rear Axle
      Brake Operating Assembly
      Brakes
      Hydrostatic Steering
      Rear Axle
      Steering Cylinder
   Hydraulic System
      Hydraulic Lines
      Hydraulic Oil Reservoir
      Triple Hydraulic Pump
      Hydraulic Valve Blocks
      Hydraulic Cylinders
      Accumulator
   Miscellaneous
      Bearings and Shafts
      Drive Belts
      Drive Chains
      Front Axle
      Compressed Air System
   Operator`s Station, Cab and Air Conditioning
      Air Conditioning System
      Operator`s Cab Heating System
      Gear Shift Mechanism
   Feeder House
      Removal and Installation
      Disassembly, Assembly and Adjustments
      Hydraulic Reverser
      Multi-Coupler
   Separator and Cleaning Unit
      Separator Drive
      POSI-TORQ Variable Cylinder Drive

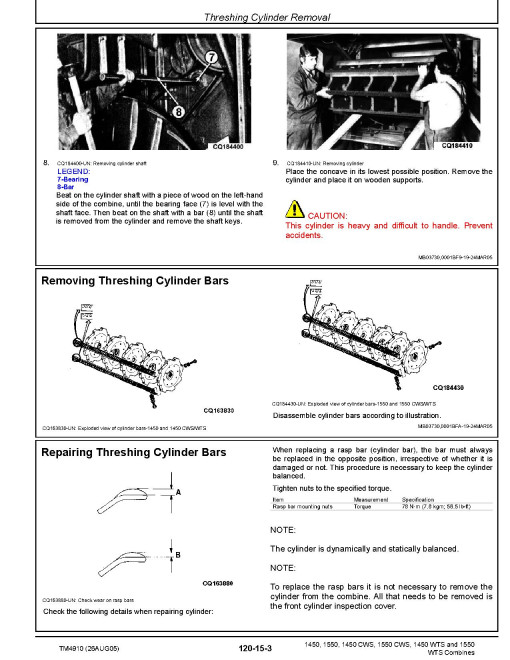

      Threshing Cylinder Removal
      Concave
      Beater
      Threshing Cylinder Drive Reduction Gear
      Straw Walkers
      Cleaning Shoe
      Fan and Variable Fan Speed Drive
   Grain Transport and Unloading
      Tailings Elevator
      Clean Grain Elevator
      Grain Tank Unloading System
      Unloading Auger Hydraulic Cylinder
   Straw Chopper, Straw Distributor and Chaff Spreader
      Straw Chopper
      Straw Distributor
      Chaff Spreader
   Special Tools
      Dealer-Fabricated Tools
