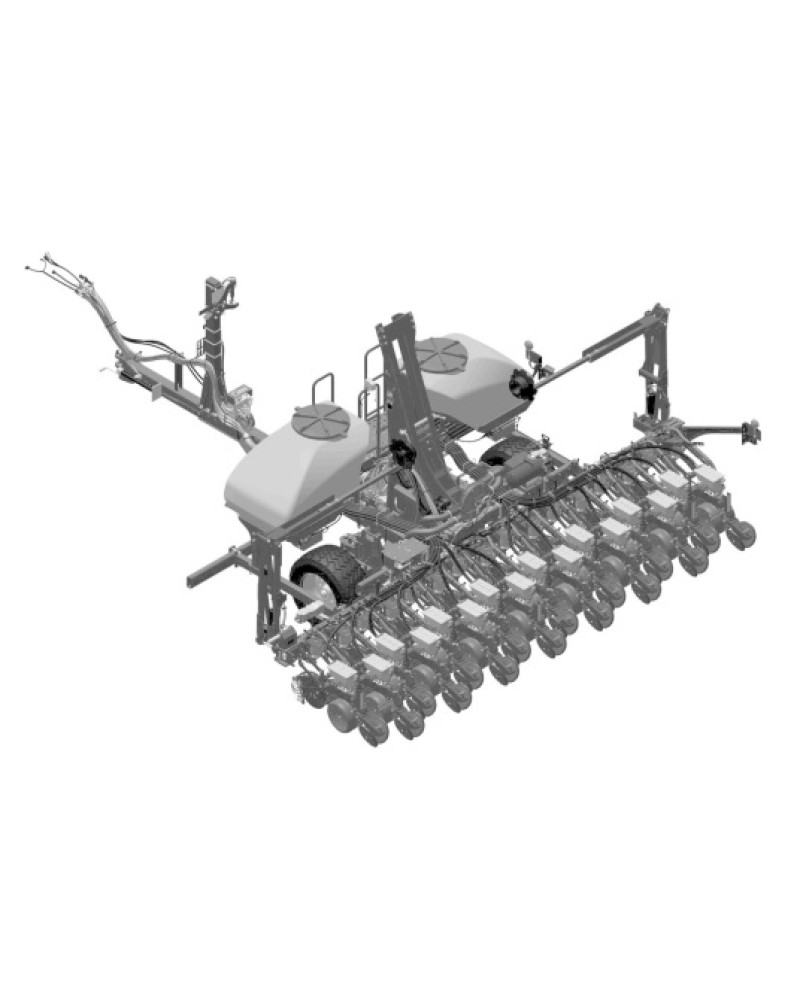

John Deere 1745 and 1755 Planters Frame Repair Manual (TM609219)

Illustrated factory Repair Manual for John Deere Planters Models 1745 and 1755.

This manual will assist you in assembling, disassembling, and repairing for your planter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1745
   1755

Format: PDF, 312 pages
Language: English
Publication Date: 07 Feb 2021
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Technical Specific References
      Lubricants

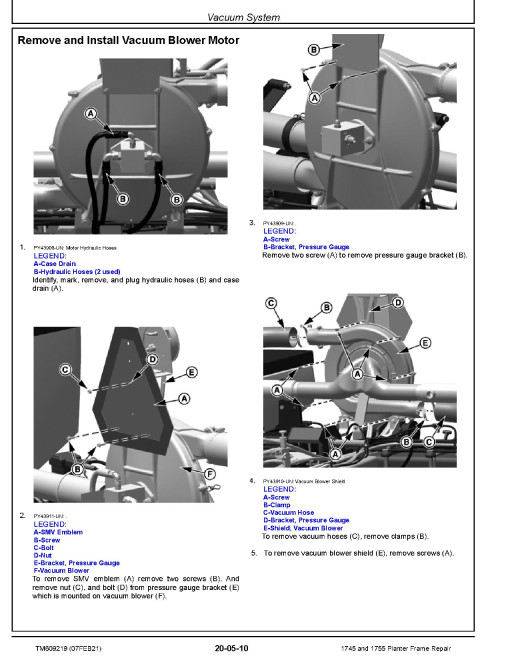

   Vacuum System
      Vacuum System
   Central Commodity System
      Seed Tanks and Manifolds
      Seed Delivery Hose
      Central Commodity System Fan
   Seed Tank
      Seed Hopper
      Insecticide and Herbicide Hopper
   Electrical
      Fuses, Relays, and Sensors
      Wiring Harnesses
      Lights and Switches
      Electrical Connectors
      Electronic Control Units
      Electrical Components
   Drives
      Specifications

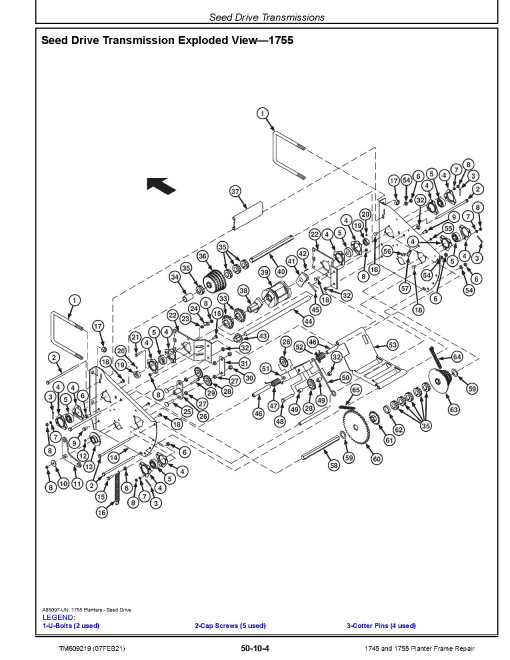

      Seed Drive Transmissions
      Drill Shafts
      Variable Rate Drive
   Hitch and Frame
      Repair and Welding
      Wheel Module Repair
      Row Markers
      PTO Pump Assembling & Disassembling
      Rigid Frame Assembling & Disassembling
      Flex Frame Assembling & Disassembling
   Hydraulics
      General Information

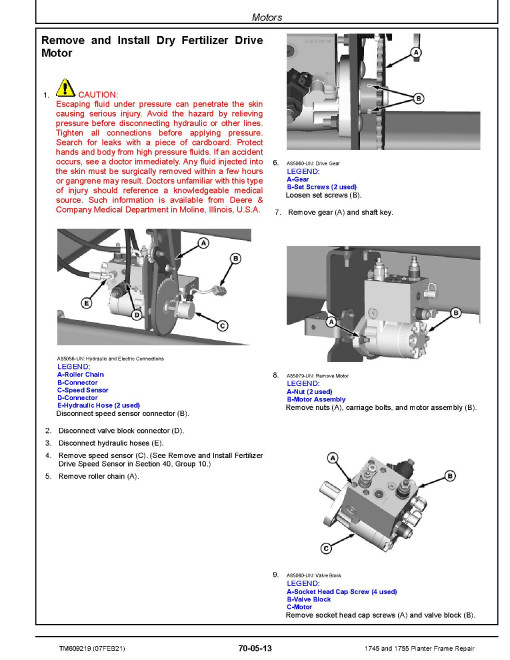

      Motors
      Cylinders
      Valves
      Miscellaneous
   Fertilizer Systems
      Dry Fertilizer System
      Liquid Fertilizer System
      Liquid Fertilizer Rate Charts
      Fertilizer Opener-Frame Mounted Single-Disk
   Downforce System
      General Information
      Pneumatic Downforce
      Heavy Duty Adjustable Mechanical Downforce System
      Non-Adjustable Single Spring Downforce System
   Miscellaneous
      Polyethylene Tank Repair
   Dealer Fabricated Tools
      Dealer Fabricated Tools
