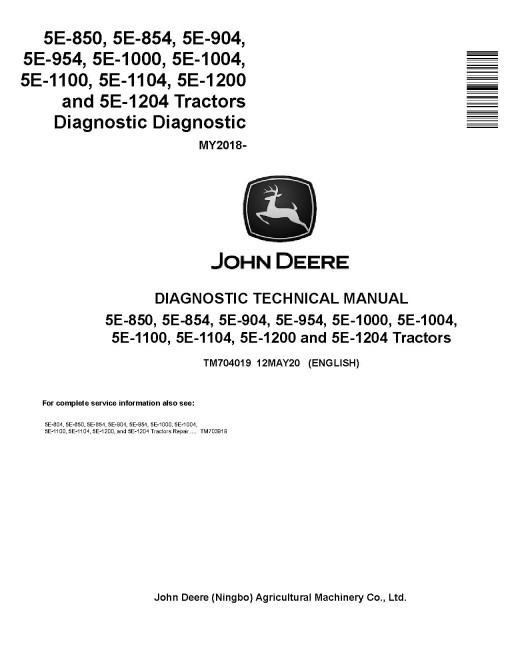

John Deere 5E-1000, 5E-1004, 5E-1100, 5E-1104, 5E-1200, 5E-1204, 5E-850, 5E-854, 5E-904 and 5E-954 China Tractors (from MY18) Diagnostic Manual (TM704019)

Illustrated factory Diagnostic Manual for John Deere China Tractors Models 5E-1000, 5E-1004, 5E-1100, 5E-1104, 5E-1200, 5E-1204, 5E-850, 5E-854, 5E-904 and 5E-954.

This manual will assist you in diagnosing for your china tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (from MY2018):
   5E-1000
   5E-1004
   5E-1100
   5E-1104
   5E-1200
   5E-1204
   5E-850
   5E-854
   5E-904
   5E-954

Format: PDF, 399 pages
Language: English
Publication Date: 12 May 2020
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      Technical Specific References
   Diagnostic Trouble Codes
      ECU Code Diagnostics
   Observable Symptoms and System Diagnostics
      General References
      Engine Diagnostics
      Fuel, Air Intake, Exhaust, and Cooling Diagnostics
      Electrical Diagnostics
      Drive Systems and Transmission Diagnostics
      Steering and Brakes Diagnostics
      Hydraulic Diagnostics
      Operator`s Station Diagnostics
   Engine
      General References
      Engine Calibrations, Preliminary Checks, and Operational Checks
      Engine Theory of Operation
      Engine Schematics
      Engine Component and Connector Information
      Engine Tests and Adjustments
   Fuel, Air Intake, Exhaust, and Cooling
      General References
      Fuel, Air Intake, Exhaust, and Cooling Theory of Operation
   Electrical General and Theory of Operation
      General References
      Theory of Operation
   Electrical Schematics
      General References
      Starting and Charging Schematic (SE01)
      Instrument Cluster Schematic (SE02)
      Headlights and Worklights Schematic (SE03)
      Power Outlet Schematic (SE04)
      Tail Lights, Brake Lights, and Turn Lights Schematic (SE05)
      Dome Light and Horn Schematic (SE07)
      Windshield Wiper Schematic (SE08)
      Fan and Heater Schematic (SE10)
      Engine Control Unit (ECU) Schematic (SE14)
      CAN Network Schematic (SE15)
   Electrical Components and Connectors
      General References
      Fuses and Relays

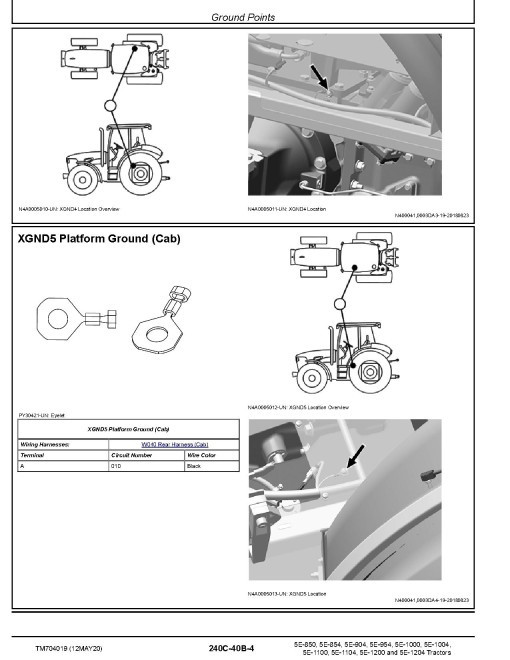

      Ground Points
      Interconnects
      Wiring Harnesses
      Electrical Assemblies
      Sensors
      Lights
      Relays
      Motors
      Switches
      Resistor and Diodes
      Solenoids
   Electrical Tests and Adjustments
      General References
      Tests and Adjustments
   Electronic Control Units
      Engine Control Unit (ECU)
   Drive Systems and Transmissions
      General References
      Drive Systems and Transmission Preliminary and Operational Checks

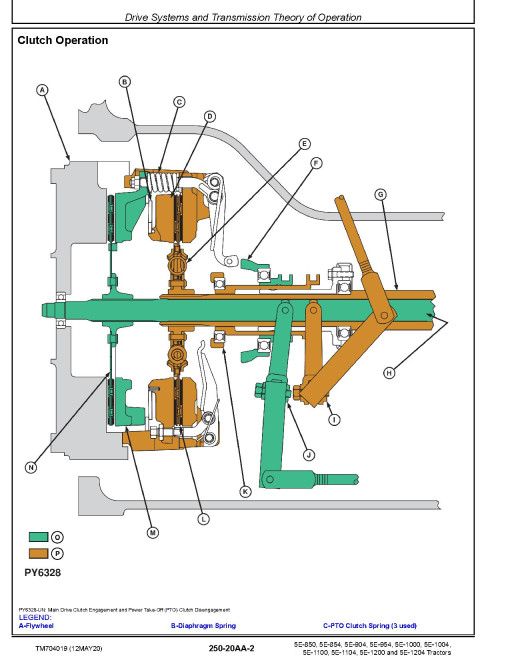

      Drive Systems and Transmission Theory of Operation
      Drive Systems and Transmission Tests and Adjustments
   Steering and Brakes
      General References
      Steering Calibrations, Preliminary Checks, and Operational Check
      Brakes Calibrations, Preliminary Checks, and Operational Checks
      Steering Theory of Operation
      Brakes Theory of Operation
      Steering Schematics
      Brakes Schematics
      Steering Component and Connector Information
      Brakes Component and Connector Information
      Steering Test and Adjustments

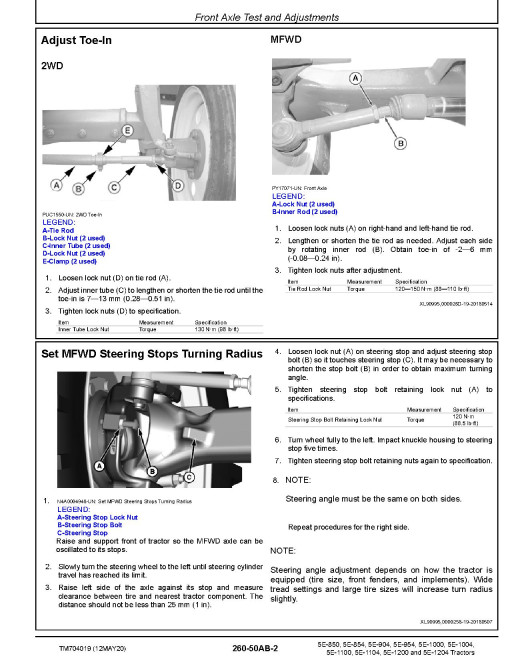

      Front Axle Test and Adjustments
      Brake Test and Adjustments
   Hydraulics
      General References
      Hydraulic Calibrations, Preliminary Checks, and Operational Checks
      Hydraulic System Theory of Operation
      Rockshaft Control Valve and Dual Rear Selective Control Valve Theory of Operation
      Double-Acting Sleeve Coupler Theory of Operation
      Hydraulic Schematics
      Hydraulic Component and Connector Information
      Hydraulics Test and Adjustments
   Special Tools
      General References
      Dealer Fabricated and Service Tools
      Section 240A
      Section 240B
      Section 240C
      Section 240D
