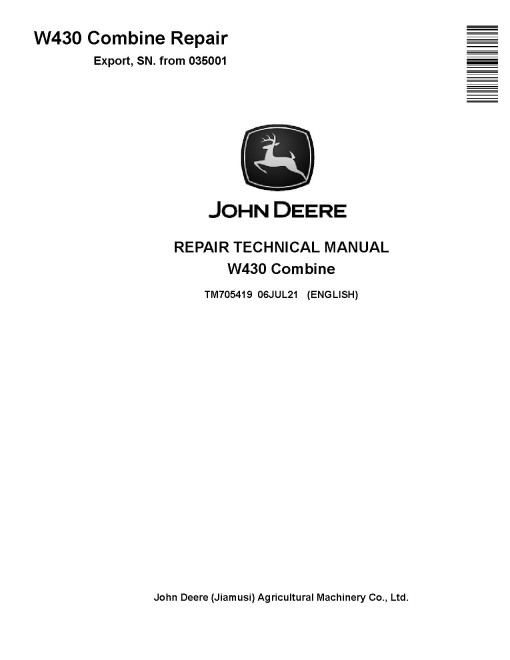

John Deere W430 (SN. from 035001) Combines (Export Edition) Repair Manual (TM705419)

Illustrated factory Repair Manual for John Deere Combines Models W430.

This manual will assist you in assembling, disassembling, and repairing for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Export Edition):
   W430 (SN: 035001-)

Format: PDF, 424 pages
Language: English
Publication Date: 06 Jul 2021
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      Identification
      Tune-Up and Adjustment
      Fuels, Lubricants, and Coolants
      Delivery and Storage Instructions
   Engine

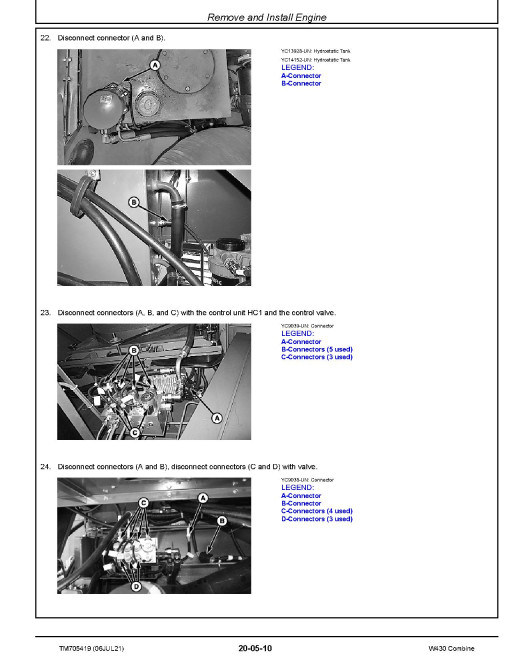

      Remove and Install Engine
      Cooling System
   Fuel and Intake Systems
      Fuel System
      Air Intake System
   Electrical System
      Battery
      Fuses and Relays
      Lighting
      Operator Station
      Sensors and Switches
      Connectors
      Alternator
      Starting Motor
      Control Units and Primary Display Unit
   Power Train
      Engine Power Take-Off
      Transmission and Differential
      Hydrostatic Drive Pump and Motor
      Final Drive
      Rear Axle
   Steering and Brakes
      Steering
      Brakes
   Hydraulic System
      Hydraulic Lines and Connections
      Hydraulic Reservoir
      Hydraulic Pump
      Hydraulic Control Valve

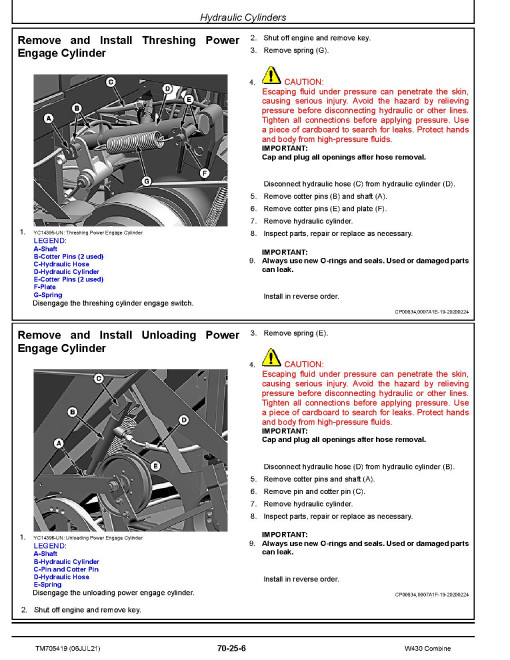

      Hydraulic Cylinders
      Accumulator
   Miscellaneous
      Shafts and Bearings
   Operator Station
      Air Conditioning System (R134a)
      System Components
      Cab
   Feeder House
      Conveyor
      Top Shaft and Slip Clutch
      Feeder House Drives and Reverser Motor
   Threshing, Separation, and Grain Cleaning
      Threshing Cylinder and Concave
      Threshing Cylinder Drive
      Beater
      Cleaning System

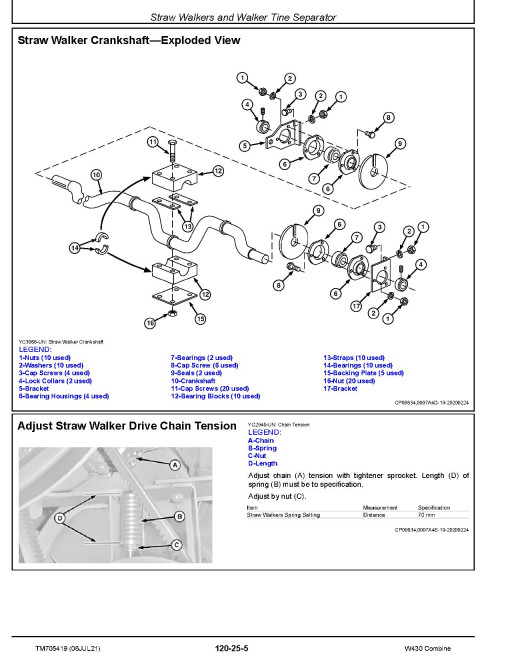

      Straw Walkers and Walker Tine Separator
      Residue Disposal
   Elevator, Grain Tank, and Unloading System
      Grain Tank Cross Auger
      Unloading Auger System Drive
      Vertical Unloading Auger and Lower Gear Case
      Horizontal Unloading Augers and Gear Case
      Grain Tank
      Clean Grain Augers, Tailings Augers, and Elevators
   Dealer Fabricated Tools
      Dealer Fabricated Tools
