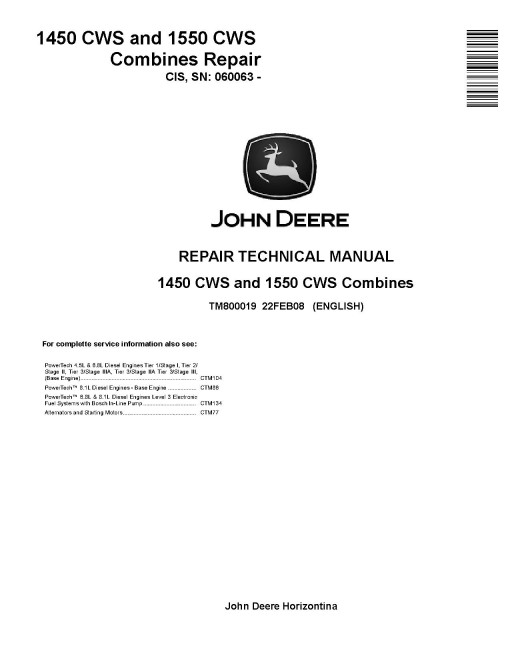

John Deere 1450 CWS and 1550 CWS (SN. from 060063) Combines (CIS) Repair Manual (TM800019)

Illustrated factory Repair Manual for John Deere Combines Models 1450 CWS and 1550 CWS.

This manual will assist you in assembling, disassembling, and repairing for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (CIS):
   1450 CWS (SN: 060063-)
   1550 CWS (SN: 060063-)

Format: PDF, 358 pages
Language: English
Publication Date: 22 Feb 2008
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      Specifications
      Reconditioning and Adjusting
      Fuels and Lubricants
   Engine

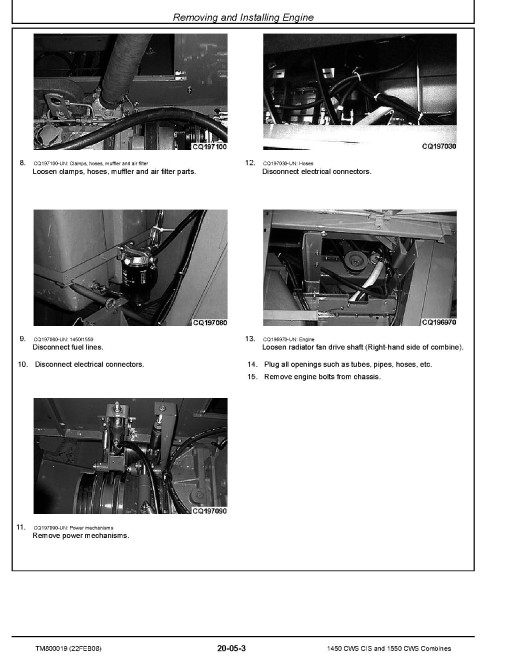

      Removing and Installing Engine
   Fuel System, Air Intake and Cooling
      Fuel System
      Air Intake System
      Cooling System
   Electrical System
      General Information
      Battery
      Alternator
      Starter Motor
      Main Electrical System
      Operator Presence Switch
   Drive Train
      Engine Output Shaft
      Transmission and Gear box
      Final Drives
      Hydrostatic Ground Speed Drive
      Hydrostatic System Oil
      Hydrostatic Pump
      Tensioning Cylinder of Hydrostatic Pump
      Removing Hydrostatic Drive Motor
      Tires and Wheels
      Oil Cooler
   Brakes, Steering and Rear Axle

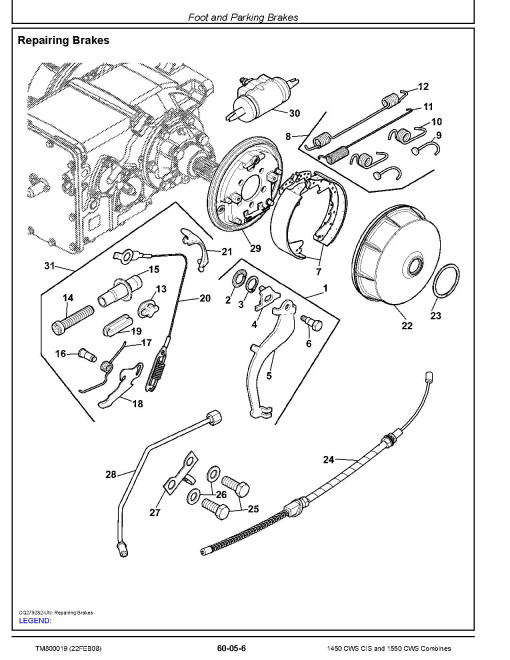

      Foot and Parking Brakes
      Hydrostatic Steering Unit
      Rear Axle
      Removing and Repairing Steering Cylinder
   Hydraulic System
      Hydraulic Lines
      Hydraulic Oil Reservoir
      Triple Hydraulic Pump
      Hydraulic Control Blocks
      Hydraulic Cylinders
      Accumulator
      Hydraulic System Oil
   Miscellaneous
      Bearings and Shafts
      Belts
      Drive Chains
      Front Axle
      Compressed Air System
   Operator`s Station, Cab and Air Conditioning
      Repairing Air Conditioning System
      Cab
      Operator`s Cab Heating System
      Gear Shift Mechanism
   Feeder House
      Removing and Installing Series 600 Feeder House
      Removal of Components and Adjustments
      Hydraulic Reverser
      Multi-coupler
   Threshing System, Separation and Cleaning
      Separator Drive
      Threshing Cylinder Speed Variator
      Threshing Cylinder
      Concave
      Beater Cylinder
      Threshing Cylinder Speed Reduction Gear

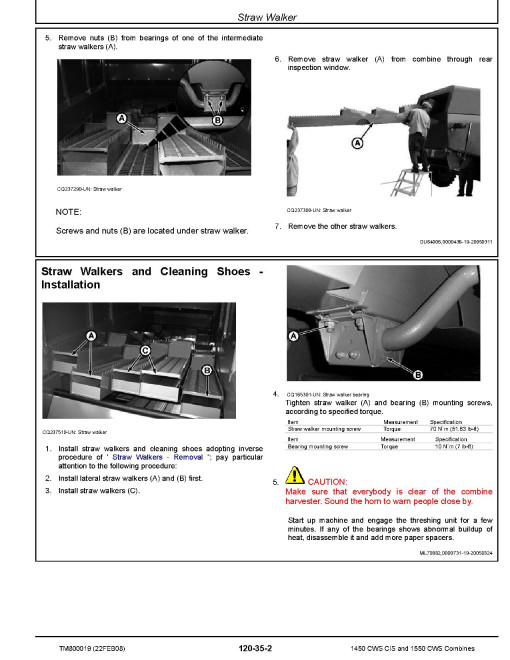

      Straw Walker
      Cleaning Shoes
      Variable Fan Speed Drive and Fan
   Grain Transport and Unloading
      Tailings Elevator
      Clean Grain Elevator
      Grain Tank Unloading System
      Unloading Auger Hydraulic Cylinder
   Straw Chopper, Straw Distributor and Chaff Spreader
      Straw Chopper
      Straw Distributor
      Chaff Spreader
   Special Tools
      Dealer Fabricated Tools
