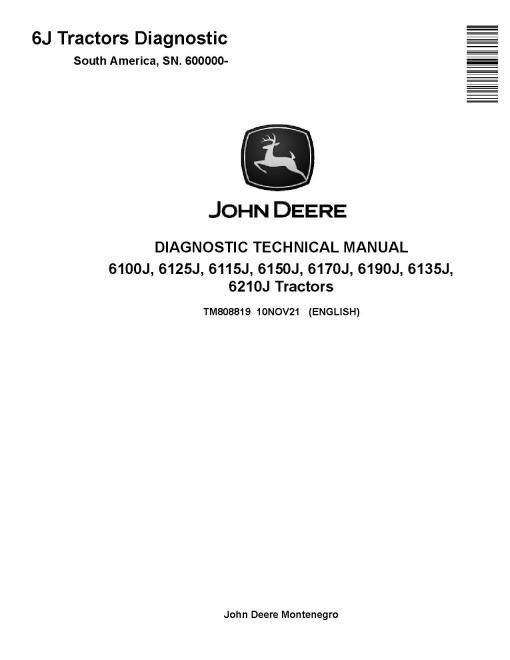

John Deere 6100J, 6115J, 6125J, 6135J, 6150J, 6170J, 6190J and 6210J Tractors (South America, SN. from 600000) Diagnostic Manual (TM808819)

Illustrated factory Diagnostic Manual for John Deere Tractors Models 6100J, 6115J, 6125J, 6135J, 6150J, 6170J, 6190J and 6210J.

This manual will assist you in diagnosing for your tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (South America):
   6100J (SN: 600000-)
   6115J (SN: 600000-)
   6125J (SN: 600000-)
   6135J (SN: 600000-)
   6150J (SN: 600000-)
   6170J (SN: 600000-)
   6190J (SN: 600000-)
   6210J (SN: 600000-)

Format: PDF, 1675 pages
Language: English
Publication Date: 10 Nov 2021
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      References for Technical Information
      Diagnostic Philosophy
   Diagnostic Trouble Codes
      CCU Diagnostic Trouble Codes
      ECU Diagnostic Trouble Codes
      EIC Diagnostic Trouble Codes
      GR6 Diagnostic Trouble Codes
      HV1 Diagnostic Trouble Codes
      ICC Diagnostic Trouble Codes
      IR6 Diagnostic Trouble Codes
      JDL Diagnostic Trouble Codes
      MG1 Diagnostic Trouble Codes
      VTi Diagnostic Trouble Codes
      VTv Diagnostic Trouble Codes
      XMC Diagnostic Trouble Codes
      XSC Diagnostic Trouble Codes

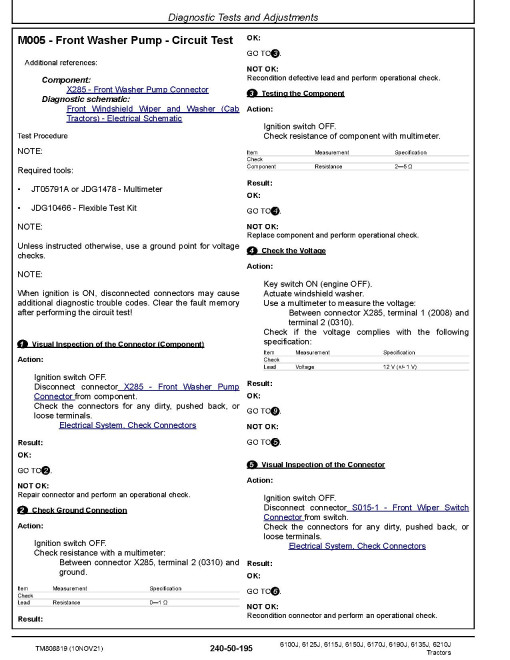

   Observable Symptom and System Diagnostics
      Engine
      Fuel, Air Intake, Exhaust and Cooling
      Electrical
      Electronic Control Units
      Drive Train
      PowrQuad
      SyncroPlus
      Steering and Brakes
      Hydraulics
      Cab
   Engine
      General Information
      Operational and Preliminary Checks
      Diagnostic Tests and Adjustments
   Engine Component Information
      General Information
      Engine Components
   Fuel, Air Intake, Exhaust and Cooling
      General Information
      Theory of Operation
      Diagnostic Tests and Adjustments
   Fuel, Air Intake, Exhaust and Cooling Component Information
      General Information
      Fuel Components
      Air Intake Components
      Exhaust Components
      Cooling Components
   Electrical
      General Information
      Starting, Charging, and Power Distribution - Theory of Operation
      Engine and Fuel - Electrical Theory of Operation
      Lighting - Electrical Theory of Operation
      Drive Train - Electrical Theory of Operation
      Operator`s Station - Theory of Operation
      Rear Implement - Electrical Theory of Operation
      Ag Management Solutions - Theory of Operation
      Starting, Charging, and Power Distribution - Electrical Schematics
      Engine and Fuel - Electrical Schematics
      Lighting - Electrical Schematics
      Drive Train - Electrical Schematics
      Operator`s Station - Electrical Schematics
      Rear Implement - Electrical Schematics
      Ag Management Solutions - Electrical Schematics
      Diagnostic Tests and Adjustments
   Electronic Control Units
      General Information
      Operational and Preliminary Checks
      Interactive Tests and Calibrations
      Programming Electronic Control Units
      CAN Bus - Theory of Operation
      Control Units - Theory of Operation
      CAN Bus - Schematic
      Power and Ground for Control Units - Schematic
      CCU Diagnostic Addresses
      ECU Diagnostic Addresses
      EIC Diagnostic Trouble Codes
      GR6 Diagnostic Addresses
      HV1 Diagnostic Addresses
      ICC Diagnostic Addresses
      IR6 Diagnostic Addresses
      JDL Diagnostic Addresses
      MG1 Diagnostic Addresses
      VTi Diagnostic Addresses
      VTv Diagnostic Addresses
      XMC Diagnostic Addresses
      XSC Diagnostic Addresses
   Electrical Component Information
      General Information
      Electrical Assemblies
      Sensors
      Fuses

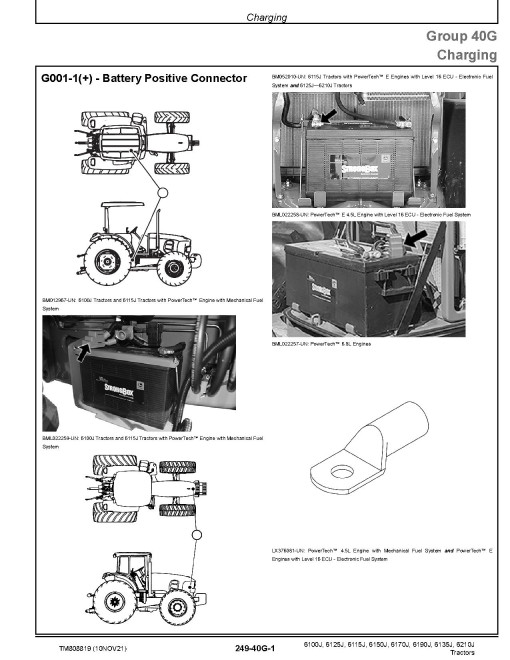

      Charging
      Relays
      Motors
      Resistors
      Switches
      Interconnects and Ground Points
      Electronically Actuated Mechanical Devices
   Drive Train (Without Transmission)
      General Information
      Operational and Preliminary Checks
      Theory of Operation
      Diagnostic Tests and Adjustments
   PowrQuad Transmission
      General Information
      Operational and Preliminary Checks
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   SyncroPlus Transmission
      General Information
      Operational and Preliminary Checks
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Drive Train Component Information
      General Information
      Drive Train Components
      PowrQuad Components
      SyncroPlus Components
   Steering
      General Information
      Operational and Preliminary Checks
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Brakes
      General Information
      Operational and Preliminary Checks
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Air Trailer Brake
      General Information
      Operational and Preliminary Checks
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Steering and Brakes Component Information
      General Information
      Steering Components
      Brake Components
      Air Trailer Brake Components
   Hydraulics
      General Information
      Operational and Preliminary Checks

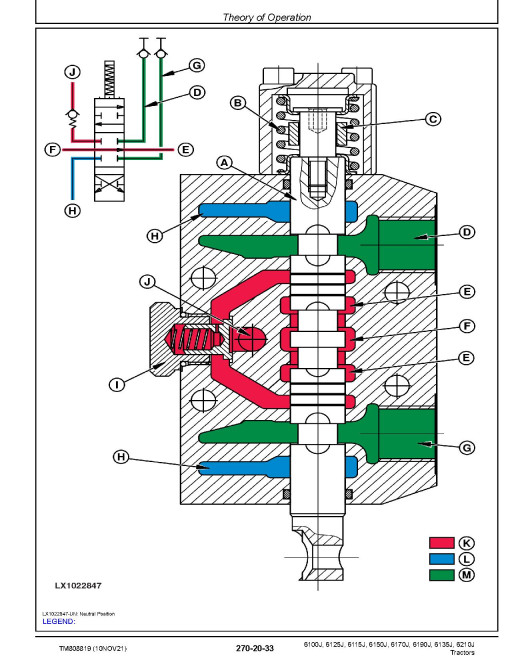

      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Hydraulics Component Information
      General Information
      Cylinder, Actuator, or Piston
      Filter
      Valve Block, Assembly, or Gearcase
      Miscellaneous
      Pump
      Reservoir or Tank
      Valve
   Cab
      General Information
      Operational and Preliminary Checks
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Cab Component Information
      General Information
      Cab Components
   Tools
      General Information
      Dealer Fabricated Tools
      Special Tools
      Section 250A
      Section 250B
      Section 250C
      Section 260A
      Section 260B
      Section 260C
