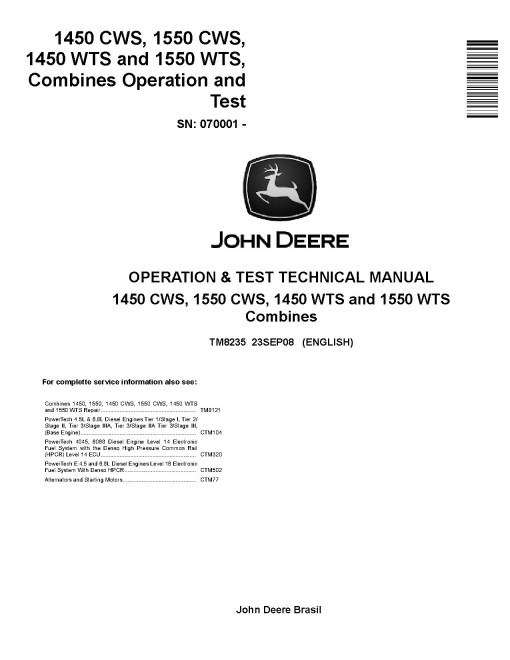

John Deere 1450 CWS, 1450 WTS, 1550 CWS and 1550 WTS Combines (SN. from 070001) Operation and Test Manual (TM8235)

Illustrated factory Operation and Test Manual for John Deere Combines Models 1450 CWS, 1450 WTS, 1550 CWS and 1550 WTS.

This manual will assist you in diagnosing, and troubleshooting for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1450 CWS (SN: 070001-)
   1450 WTS (SN: 070001-)
   1550 CWS (SN: 070001-)
   1550 WTS (SN: 070001-)

Format: PDF, 540 pages
Language: English
Publication Date: 23 Sep 2008
Table of Contents:
   Introduction
      Foreword
      References in this manual
   Safety
      Safety Information
   Diagnostics
      AHC-Active Header Control
   Engine System
      General Information

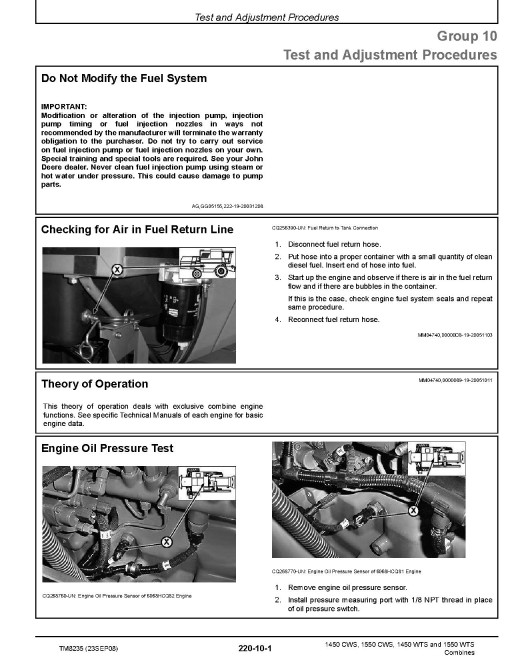

      Test and Adjustment Procedures
      Engine Diagnostics
      Identification and Location of Components
   Cooling and Air Intake Systems
      General Information
      Test and Adjustment Procedures
      Air Intake System Diagnostics
      Engine Cooling System Diagnostics
      Identification and Location of Components
   Electrical System
      How To Use Diagnostic Information
      Electrical System Schematics
      Fuse Board
      Engine Start-Up System Diagnostics
      Battery Recharging System Diagnostics
      Throttle Diagnostics-6068HCQ82 Engine
      Throttle Diagnostics-6068HCQ81 Engine
      Engine Speed & High Pressure Fuel Pump Diag.-6068HCQ82 Engine
      Eng. Speed, High Press. Fuel Pump & Turbo. Diag.-6068HCQ81 Eng.
      Temperature Sensors Diagnostics-6068HCQ82 Engine
      Temperature Sensors Diagnostics-6068HCQ81 Engine
      Engine Coolant Temperature Gauge Diagnostics
      Engine Pressure Sensors Diagnostics-6068HCQ82 Engine
      Engine Pressure Sensors Diagnostics-6068HCQ81 Engine
      Engine Defect Signalling Diagnostics
      Water-In-Fuel Sensor Gauge Diagnostics
      High Pressure Pump and Fuel Transfer Pump Diagnostics
      Engine Air Intake Heater Diagnostics-6068HCQ82 Engine
      Engine Air Intake Heater Diagnostics-6068HCQ81 Engine
      Turbocharger Actuator Diagnostics-6068HCQ81 Engine
      EGR Valve Motor Diagnostics-6068HCQ81 Engine
      Engine Air Filter Sensor Diagnostics
      Fuse Tester Diagnostics
      Fuel Level Gauge Diagnostics
      Straw Walker Performance Monitor and Sensor Diagnostics
      Cleaning Shoe Performance Monitor and Sensor Diagnostics
      Header Position Gauge Diagnostics
      Straw Distributor Motor Diagnostics
      Cab Interior Lighting Diagnostics
      Windshield Washer Motor Diagnostics
      Windshield Wiper Motor Diagnostics
      Grain Tank Lighting System Diagnostics
      Radio Diagnostics
      CB Radio Diagnostics
      Parking Brake Diagnostics
      Hydrostatic System Oil Temperature Diagnostics
      Straw Chopper Impeller Speed Sensor Diagnostics
      Tailings Elevator Auger Speed Sensor Diagnostics
      Straw Walker Crankshaft Speed Sensor Diagnostics
      Power Separator Speed Sensor Diagnostics-WTS
      Clean Grain Elevator Auger Speed Sensor Diagnostics
      Cleaning Fan Speed Sensor Diagnostics
      Hydraulic Oil Filter Sensor Diagnostics
      Grain Tank Filling Level Sensor Diagnostics
      Cigarette Lighter Diagnostics
      Compressor Diagnostics of Air Seat
      Headlights Diagnostics
      Front Clearance Lights Diagnostics
      Tail Light Diagnostics
      Left-Hand Turn Signal Diagnostics
      Right-Hand Turn Signal Light Diagnostics
      Beacon Lights Diagnostics
      Air Condit. Syst. Diag. - 1450 (054551-080049) & 1550 (054551-080042)
      Air Condit. System Diagnostics - 1450 (080050-) & 1550 (080043-)
      Electrical Adjustment of Rear View Mirrors Diagnostics
      Unloading Auger Lighting System Diagnostics
      Work Lights and Spot Lights On Mirror Arms Diagnostics
      Cab Auxiliary Work Light Switch Diagnostics
      Straw Chopper and Straw Walker Plugging Alarm Diagnostics
      Reel Speed Adjustment Diagnostics
      Brake Light Diagnostics
      Separator Drive Diagnostics
      Unloading Auger Drive Diagnostics
      Header Drive Diagnostics
      Feeder House Drive Reverser Diagnostics
      INFO-TRAKINFO-TRAK is a trademark of the Deere & Company Monitor/ Drive Shaft Speed Monitor
      Cleaning Fan Speed Adjustment Diagnostics
      Threshing Cylinder Speed Adjustment Diagnostics
      Concave Spacing Adjustment Diagnostics
      Reel Extend/Retract Diagnostics
      Reel Raise/Lower Diagnostics
      Header Lateral Tilt Diagnostics
      Header Raise/Lower Diagnostics (Manual)
      Header Controller Board Diagnostics
      Float Control Diagn.-300 & 600 Series Rigid Cutting Platform
      Header Lateral Tilt and Height Control Diagnostics
      Height Control Diagnostics-Rigid Cutting Platform Without Sensors
      Unloading Auger Swing Diagnostics
      Four Wheel Drive Diagnostics
      Area Counter Diagnostics
      Gearshift Lock Diagnostics
      Back-up Alarm Diagnostics
      Sieves and Engine Compartment Lights Diagnostics
      Header Calibration Procedures

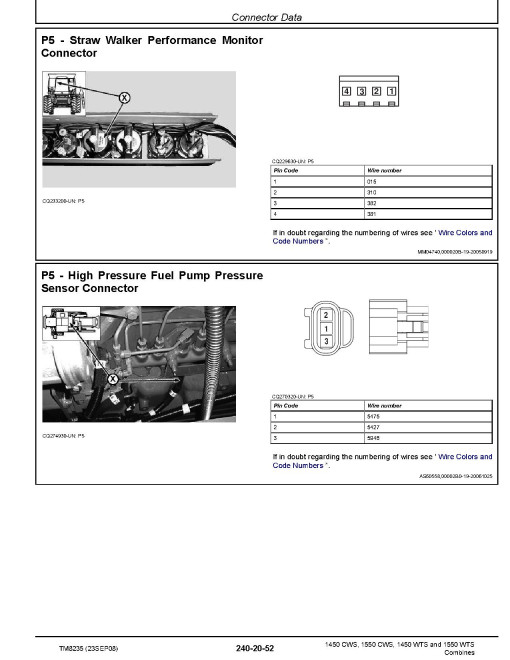

      Connector Data
   Drive Train
      Specification
      Checking Parts for Wear
      Hydrostatic System Test
      Transmission
   Four-Wheel Drive

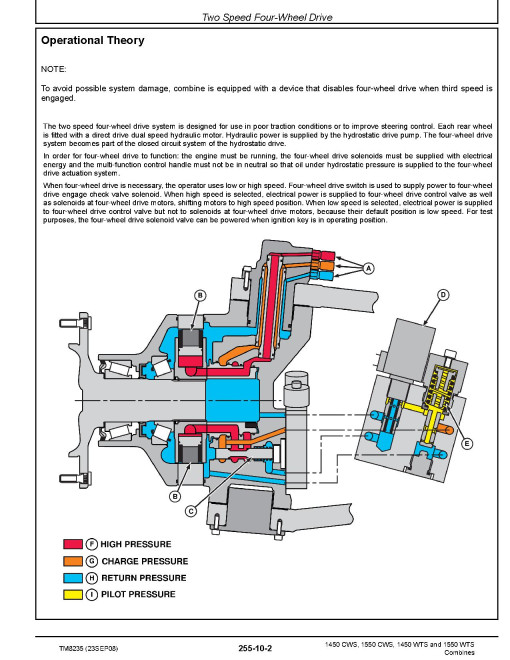

      Two Speed Four-Wheel Drive
   Brakes, Steering and Rear Axle
      Brake System
      Drum Brakes
      Steering System
   Hydraulic System
      General Information
      Hydraulic Schematic
      Reel Hydraulic Motor
      Hydraulic Pump Drive
      Hydraulic Control Valve
      Hydraulic System Troubleshooting
      Identification and Location of Hydraulic Components
   Cab
      Cab and Operator`s Seat
      Air Conditioning and Heating
      Ventilation and Heating-Troubleshooting
      Operational Tests and Troubleshooting
      Air Conditioning System Operation
