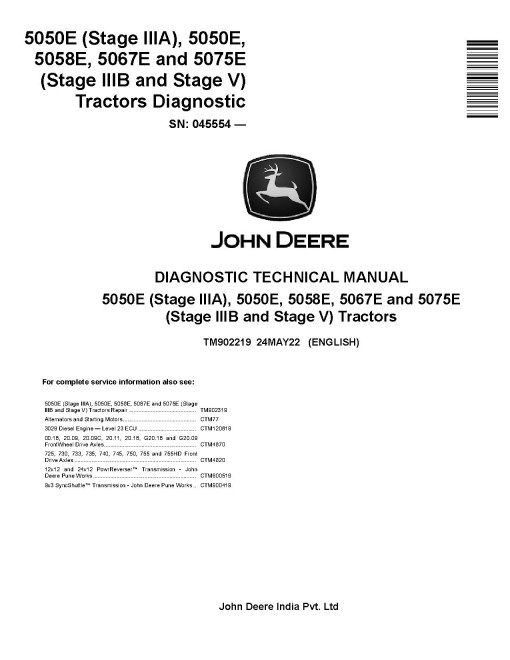

John Deere 5050E, 5058E, 5067E and 5075E Tractors (SN. from 045554) Diagnostic Manual (TM902219)

Illustrated factory Diagnostic Manual for John Deere Tractors Models 5050E, 5058E, 5067E and 5075E.

This manual will assist you in diagnosing for your tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   5050E (SN: 045554-, Stage IIIA)
   5058E (SN: 045554-, Stage IIIB and Stage V)
   5067E (SN: 045554-, Stage IIIB and Stage V)
   5075E (SN: 045554-, Stage IIIB and Stage V)

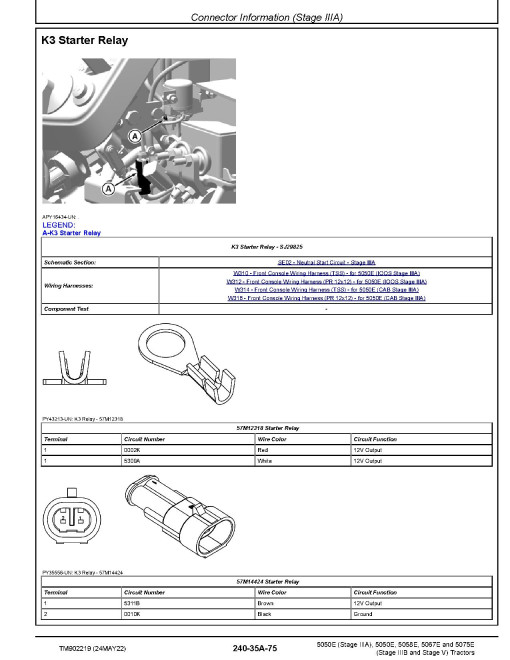

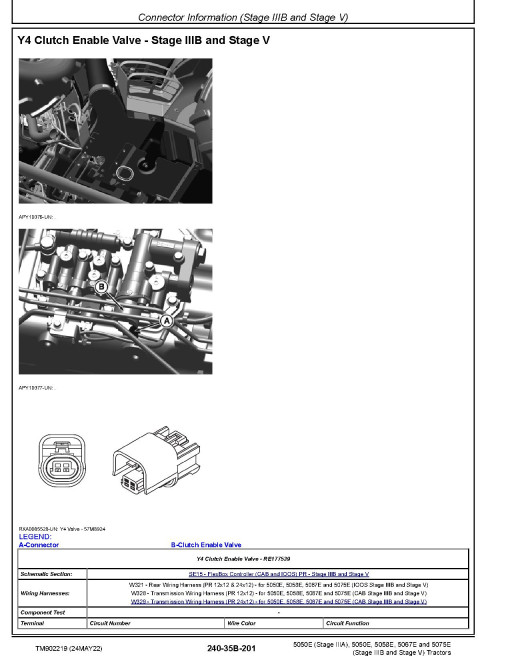

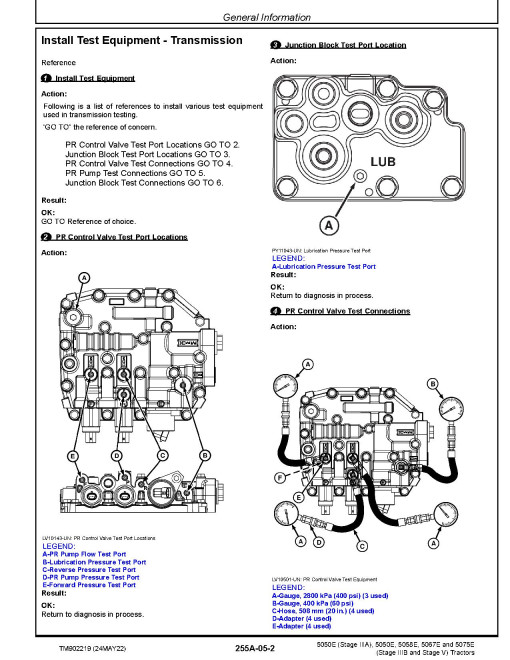

Format: PDF, 1262 pages
Language: English
Publication Date: 24 May 2022
