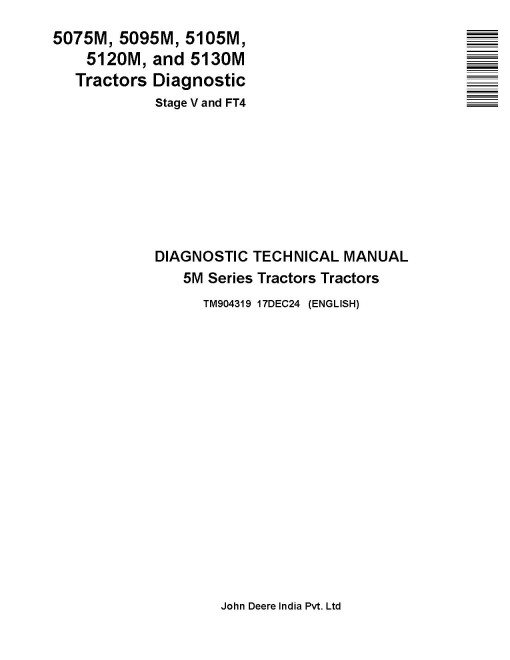

John Deere 5075M, 5095M, 5105M, 5120M and 5130M FT4/Stage V Tractors Diagnostic Technical Manual

Illustrated factory Diagnostic Technical Manual for John Deere Tractors Models 5075M, 5095M, 5105M, 5120M and 5130M.

This manual will assist you in diagnosing for your tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   5075M
   5095M
   5105M
   5120M
   5130M

Format: PDF, 4209 pages
Language: English
Publication Date: 17 Dec 2024
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References
      How to Use This Manual
      Machine and Technical References
   Diagnostic Trouble Codes
      General References
      ABV Code Diagnosis (AutoTrac Basic)
      AIC Code Diagnosis (Armrest Interface)
      CCU Code Diagnostics (Chassis)
      CLC Code Diagnosis (Cab Load Center)
      ECU Code Diagnostics (Engine)
      EIC Code Diagnostics (Engine Interface)
      FCC Code Diagnostics (Front Console)
      GM2 Code Diagnosis (Generic Master 2)
      HCC Code Diagnostics (Rear Hitch)
      HV1 Code Diagnostics (Rear Hitch Valve)
      JDL Code Diagnostics (JD Link)
      MFC Code Diagnosis (Electronic Joystick)
      OIC Code Diagnostics (Operator Interface)
      PDU Code Diagnosis (Primary Display)
      PTF Code Diagnosis (Front PTO)
      PTR Code Diagnosis
      PTU Code Diagnosis
      RPT Code Diagnosis (Rear PTO Control Unit)
      SCC Code Diagnosis (SCV Control Unit)
      SMB Code Diagnosis
      TEC Code Diagnosis (Tractor Electronic Control)
      TIU Code Diagnosis (Transmission Shift Control)
      TM1 Code Diagnosis (E-SCV I Valve Control Unit)
      TM2 Code Diagnosis (E-SCV II Valve Control Unit)
      TM3 Code Diagnosis (E-SCV III Valve Control Unit)
      TMK Code Diagnosis (E-SCV XI Valve Control Unit)
      TML Code Diagnosis (E-SCV XII Valve Control Unit)
      TMM Code Diagnosis (E-SCV XIII Valve Control Unit)
      VLC Code Diagnosis (Vehicle Load Center)
      VTV Code Diagnosis
      XMC Code Diagnostics (AutoTrac Steering)
      XSC Code Diagnostics (AutoTrac Steering)
   Observable Symptoms and System Diagnostics
      General References
      Engine Diagnostics
      Fuel, Air, and Cooling Diagnostics
      Electrical Diagnostics
      Electronic Control Unit Diagnostics
      Transmission Diagnostics
      Drive Systems Diagnostics
      Brakes Diagnostics
      Steering Diagnostics
      Hydraulic Diagnostics - Open Center System
      Cab/Operator Station Diagnostics
   Engine
      General References
      Calibrations, Preliminary and Operational Checks
      Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Fuel, Air, and Cooling
      General References
      Calibrations, Preliminary and Operational Checks
      Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Electrical - General and Theory of Operation
      General References
      Starting, Charging, and Neutral Start Circuit Theory of Operation
      Lighting System Theory of Operation
      Heating, Ventilation, and Air Conditioning Theory of Operation
      Front Wiper Theory of Operation
      Rear Wiper Theory of Operation
      Primary Display Operation
      Control Unit Power and Ground
      Radio Operation
      Transmission Operation
      Auto Track Steering Operation
      Backup Alarm Operation
      Beacon Light Operation
      Brake Lamp Operation
      Cab Control Operation
      Horn Operation
      Implement Connector Operation
      JD Link Operation
      Power Outlet Operation
      PTO Operation
      Warning Lamp Operation
      Work Lamp Operation
   Electrical Schematics
      General References
      SE01A - Starting, Charging, and Grounds, R4
      Starting, Charging, and Grounds, R2
      SE02A - Neutral Start, R4
      SE02B - Neutral Start, R2
      SE03A - Accessory Power, R4
      SE03B - Accessory Power, R2
      SE04A - Horn, R4
      SE04B - Horn, R2
      SE05A - Lights, R4
      SE05B - Lights, R2
      A - Rear Implement Connector Schematic (PQ), R4
      Trailer Interfaces, R2
      SE06A - Warning Lights, R4
      SE06B - Warning Lights, R2
      SE07A - Junction Block, R4
      SE07B - Cab Controller (PQ), R4
      SE07C - Cab Controller, R2
      SE07D - Power Source, R2
      SE08A - Rear 2 Controller (PQ), R4
      SE08B - Rear 2 Controller, R2
      SE09A - Back-Up Alarm and Fuel Heater (PQ), R4
      SE09B - Back-Up Alarm and Fuel Heater, R2
      SE10A - Rear Implement Connector, R4
      SE10B - Mid Mount SCV (PQ), R4
      SE10C - Mid Mount SCV, R2
      SE10D - Trailer Interfaces, R2
      SE11A - Front Implement Connector, R4
      SE11B - Front Implement Interfaces, R2
      SE12A - Auxiliary Headlights, R4
      SE12B - Auxiliary Headlights, R2
      SE12C - Cluster Primary Display, R2
      SE12D - Cluster Primary Display-PQ, R4
      SE13A - Back-Up Alarm and Beacon Lights, R4
      SE13B - ECU 4.5L (FT4/Stage V)-PQ, R4
      SE13C - ECU 4.5L (FT4/Stage V), R2
      SE13D - Back-Up Alarm and Beacon Lights, R2
      SE14A - R4 Joystick
      SE14B - CAN Terminators-PQ, R4
      SE14C - CAN Terminators, R2
      SE15A - Power Outlets, R4
      SE15B - Power Outlets, R2
      SE15C - JD Link-PQ, R4
      SE15D - JD Link, R2
      SE16A - Heating, R4
      SE16B - Heater, R2
      SE16C - Heater & Air Conditioning-PQ, R4
      SE17A - Air Conditioning, R4
      SE17B - Air Conditioning, R2
      SE18A - Air and Hydraulic Brakes, R4
      SE18B - SBBC Controller, R2
      SE18C - Front PTO-PQ, R4
      SE18D - Front PTO, R2
      SE19A - Front Wiper and Washer, R4
      SE19B - Front Wiper and Washer, R2
      SE19C - Front Wiper and Washer, R4
      SE21A - Rear Wiper and Washer, R4
      SE21B - Rear Wiper and Washer, R2
      SE22A - Dome Light, Door Switch, and Radio, R4
      SE22B - Dome Light, Door Switch, and Radio, R2
      SE22C - APTIV Radio-PQ, R4
      SE22D - APTIV Radio, R2
      SE23A - Air Seat, R4
      SE23B - Air Seat, R2
      SE23C - Air Seat Schematic (SE23-PQ), R4
      SE24A - Instrument Cluster, R4
      SE24B - Instrument Cluster, R2
      SE24C - SBBC and ATI-PQ, R4
      SE24D - SBBC and ATI, R2
      SE25.1A - Rear PTO Switches and Wheel Speed, R4
      SE25.1B - Seat Switch and Rear PTO Switch, R2
      SE25.2A - Loader Joystick, R2
      SE25.3A - Front PTO, R4
      SE25.3B - Front PTO, R2
      SE26A - ELX Power and Relay, R4
      SE26B - ELX Relay and Fuses, R2
      SE26C - Autotrac Basic Controller-PQ, R4
      SE26D - Autotrac Basic ControlleR, R2
      SE27A - MFWD, R4
      SE27B - MFWD, R2
      SE27C - Greenstar and Starfire-PQ, R4
      SE27D - Greenstar and Starfire, R2
      SE28A - TECC Controller-PQ, R4
      SE28B - TECC Controller, R2
      SE28C - Fuel Heater, R2
      SE29A - Transmission Control Unit, R4
      SE29B - Transmission Control Unit, R2
      SE29C - CAN to Bluetooth Module Controller-PQ, R4
      SE29D - CAN to Bluetooth Module Controller, R2
      SE30A - ECU 4.5L (FT4/Stage V), R4
      SE30B - ECU 4.5L (FT4/Stage V), R2
      SE32A - ECU 2.9L (FT4/Stage V), R4
      SE32B - ECU 2.9L (FT4/Stage V), R2
      SE33A - CAN Terminators, R4
      SE33B - CAN Terminators, R2
      SE34A - JDLink, R4
      SE34B - JDLink, R2
      SE35A - Electrohydraulic Hitch, R4
      SE35B - Electrohydraulic Hitch, R2
   Electrical Components and Connectors
      General References
      Assemblies, Modules, and Control Units
      Sensors

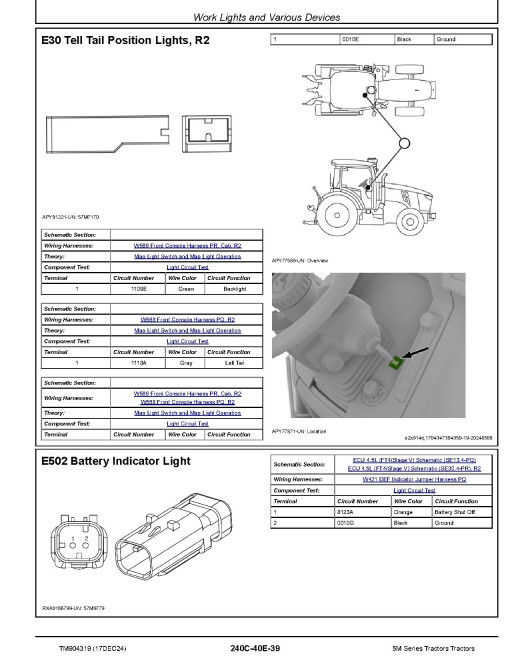

      Work Lights and Various Devices
      Fuses and Protection Devices
      Batteries and Charging
      Warning Lights, Alarms, and Signaling Devices
      Relays
      Motors
      Resistors
      Switches
      Diodes
      Harnesses
      Connectors
      Grounds
      Interconnects
      Solenoids and Electrically Actuated Mechanical Devices
   Electrical Test and Adjustments
      General References
      Tests and Adjustments
   Electronic Control Units
      General References
      Calibrations, Preliminary and Operational Checks
      Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
      AutoTrac Basic Vehicle Navigation (ABV)
      Armrest Interface Control (AIC)
      Chassis Control (CCU)
      Cab Load Center (CLC)
      Reassignable Selective Control Valve (CSA)
      Cab Switch Module (CSM)
      Engine Control (ECU) 2.9L FT4
      Engine Control (ECU) 4.5L FT4
      Engine Interface Control (EIC)
      Front Console Control (FCC)
      Management Computer (GM2)
      Hitch Control (HCC)
      Hitch Valve Control (HV1)
      Instrument Cluster Control (ICC)
      JDLink (JDL)
      Multi-Function Control (MFC)
      Operator Interface Control (OIC)
      Primary Display Unit (PDU)
      Front PTO Control (PTF)
      Power Train Reverser
      Power Train Utility (PTU)
      Rear PTO Control (RPT)
      Selective Control Valve (SCC)
      Sequence Control (SMB)
      Tractor Equipment Control (TEC)
      Transmission Shift Control (TIU)
      Vehicle Load Center (VLC)
      Virtual Terminal Vehicle (VTV)
      AutoTrac Main Control (XMC)
      XAutoTrac Supervisor Control (XSC)
   Transmission
      General References-PR
      General References-PQ
      Calibrations, Preliminary and Operational Checks-PR
      Calibrations, Preliminary and Operational Checks-PQ
      Control Valves Theory of Operation-PR
      Forward and Reverse Theory of Operation-PR
      Speed Theory of Operation-PR
      Range Theory of Operation-PR
      Creeper Theory of Operation-PR
      Lubrication Theory of Operation-PR
      Schematics-PR
      Schematics-PQ
      Components and Connectors-PR
      Components and Connectors-PQ
      Tests and Adjustments-PR
      Tests and Adjustments-PQ
   Drive Systems
      General References-PR
      General References-PQ
      Calibrations, Preliminary and Operational Checks-PR
      Calibrations, Preliminary and Operational Checks-PQ
      Differential Theory of Operation-PR
      Differential Lock Theory of Operation-PQ
      Final Drive Theory of Operation-PR
      Front PTO Theory of Operation-PR

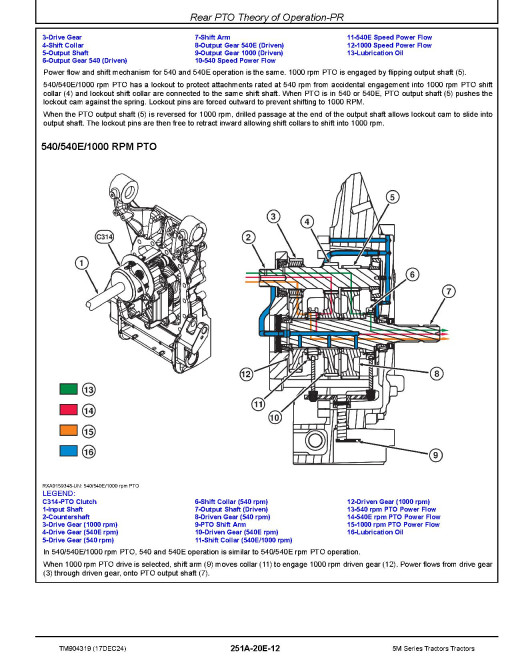

      Rear PTO Theory of Operation-PR
      High Crop Axle Theory of Operation-PR
      MFWD Theory of Operation-PR
      Schematics-PR
      Schematics-PQ
      Components and Connectors-PR
      Components and Connectors-PQ
      Tests and Adjustments-PR
      Tests and Adjustments-PQ
   Brakes
      General References-PR
      General References-PQ
      Calibrations, Preliminary and Operational Checks-PR
      Calibrations, Preliminary and Operational Checks-PQ
      Theory of Operation-PR
      Theory of Operation-PQ
      Schematics-PR
      Schematics-PQ

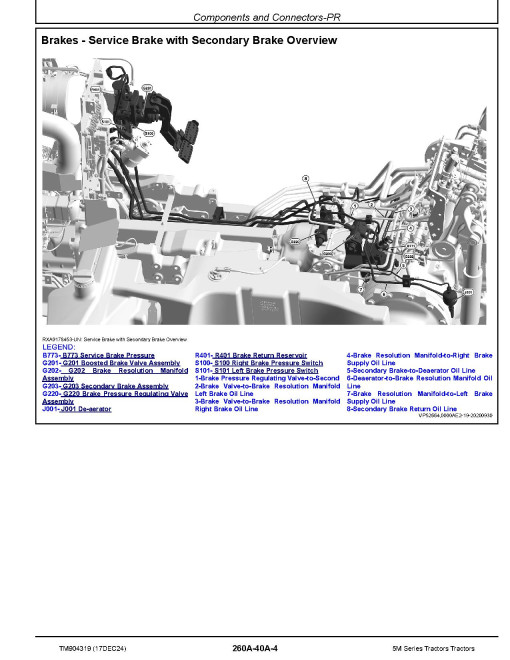

      Components and Connectors-PR
      Components and Connectors-PQ
      Tests and Adjustments-PR
      Tests and Adjustments-PQ
   Steering
      General References-PR
      General References-PQ
      Calibrations, Preliminary and Operational Checks-PR
      Calibrations, Preliminary and Operational Checks-PQ
      Theory of Operation-PR
      Theory of Operation-PQ
      Schematics-PR
      Schematics-PQ
      Components and Connectors-PR
      Components and Connectors-PQ
      Tests and Adjustments-PR
      Tests and Adjustments-PQ
   Hydraulics - Open Center System
      General References
      Calibrations, Preliminary and Operational Checks
      Hydraulic Filter Theory of Operation
      Hydraulic Pump Theory of Operation
      Electrohydraulic Hitch Theory of Operation
      Mechanical Hitch Theory of Operation
      Front Hitch Theory of Operation
      Dual Mid-Mount SCV Theory of Operation
      Triple Mid-Mount SCV Theory of Operation
      Dual Rear SCV Theory of Operation
      Triple Rear SCV Theory of Operation
      Power Beyond Theory of Operation
      Quick Disconnect Coupler Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Cab/Operator Station
      General References
      Calibrations, Preliminary and Operational Checks
      Heating, Ventilation, and Air Conditioning Theory of Operation
      Seat Theory of Operation
      Schematics
      Components and Connectors
      Tests and Adjustments
   Special Tools
      General References
      Dealer Fabricated Tools
      Service Tools
   APPENDIX
      Section 240A
      Section 240B
      Section 240C
      Section 240D
      Section 250A
      Section 251A
      Section 260A
      Section 261A
