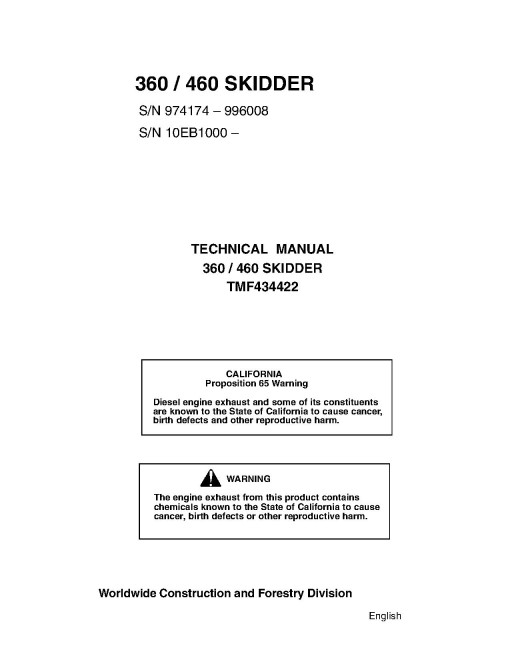

Timberjack / John Deere 360 and 460 Skidders Technical Manual (TMF434422)

Illustrated factory Technical Manual for Timberjack Skidders Models 360 and 460.

This manual will assist you in diagnosing, and repairing for your skidder.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   360 (SN: 974174-996008; 10EB1000-)
   460 (SN: 974174-996008; 10EB1000-)

Format: PDF, 942 pages
Language: English
Table of Contents:
   General Information
      How To Use This Book
      Section and Group Contents
      Foreword and Warranty
      Safety Information

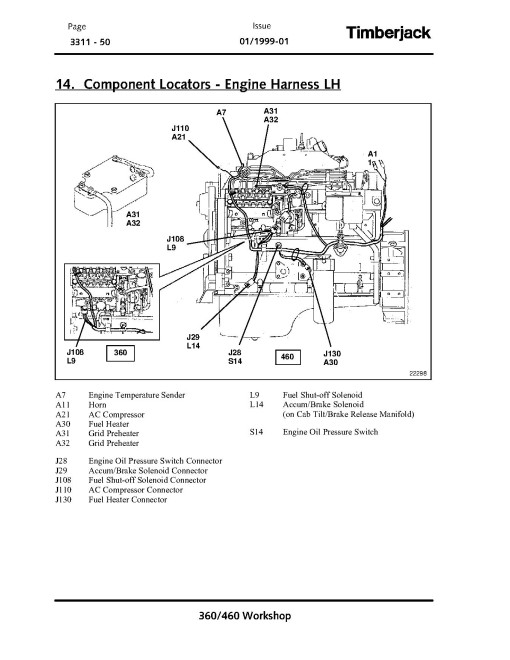

      General - Component Locators
      Towing/Transporting the Skidder
   Power Unit
      Engine
      Engine Mounting
      Fuel System
      Cooling System
      Coupling
      Air Intake System
      Exhaust System
   Hydraulic Systems
      Hydraulic Systems
      Hydraulic Tank and Filters
      Work Pump
      Hydraulic Cooling
      Valves
      Control Valve
      Priority Valve
      Orbitrol Control Valve Unit
      Steering System
      Cab Tilting Hydraulics
      Cylinders
   Electrical Systems
      Electrical
      Wiring Harness
      Gauge System
      Monitor System
      EGS Controller
      Electrical Circuit Testing
   Power Train

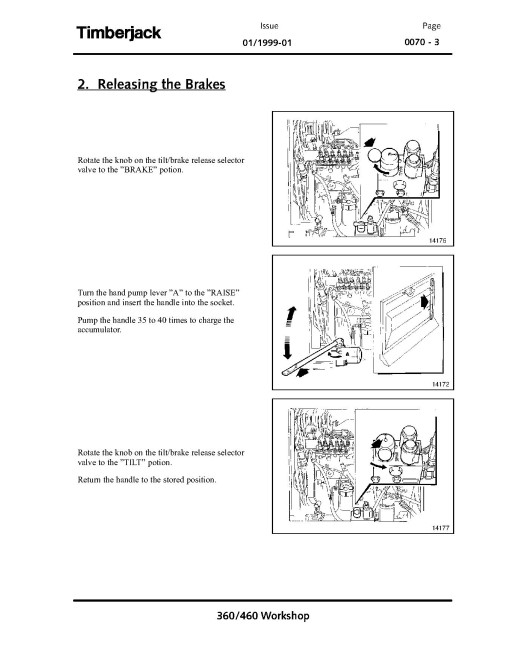

      Brakes
      Transmission/Torque Converter
      Drivelines
      Differentials
      Axles
   Cab
      Cab Mounting
      Windows
      Seat
      Heater and Air Conditioner
      Cab Controls
   Frames
      Frames
      Description and Operation
      Frame Hinge
      Walking Beam
      Decking Blade
   Tree Handling
      Crane/Tree Handling
      Winches
      Booms/Arch
      Rotator - Timberjack Grapple
      Timberjack Grapples
      Cylinders - Timberjack Grapples
      Timberjack Grapple Rotate Motor

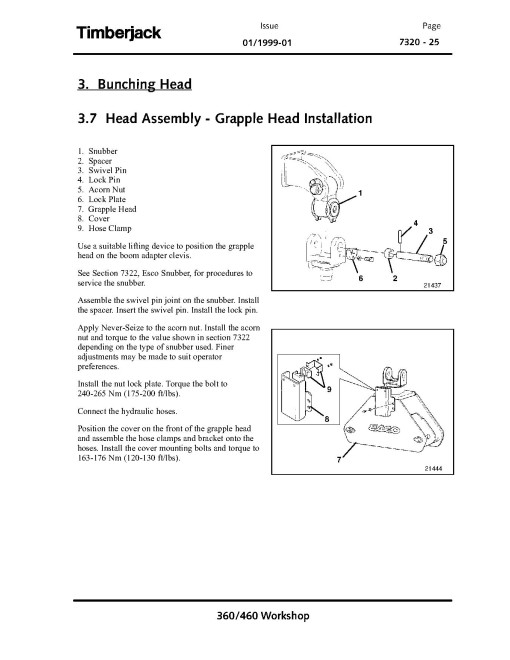

      Esco Grapples
      Cylinders - Esco Grapples
   Technical Information
      Tool List - 60 Series Skidder
      General Torque Specifications
      Measurement Conversion Tables
      Fluids and Lubricants
      Machine Specifications
   O.E.M. Data
