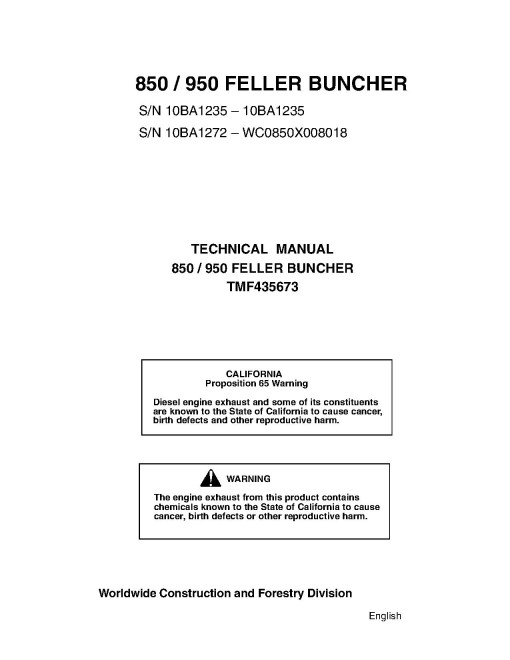

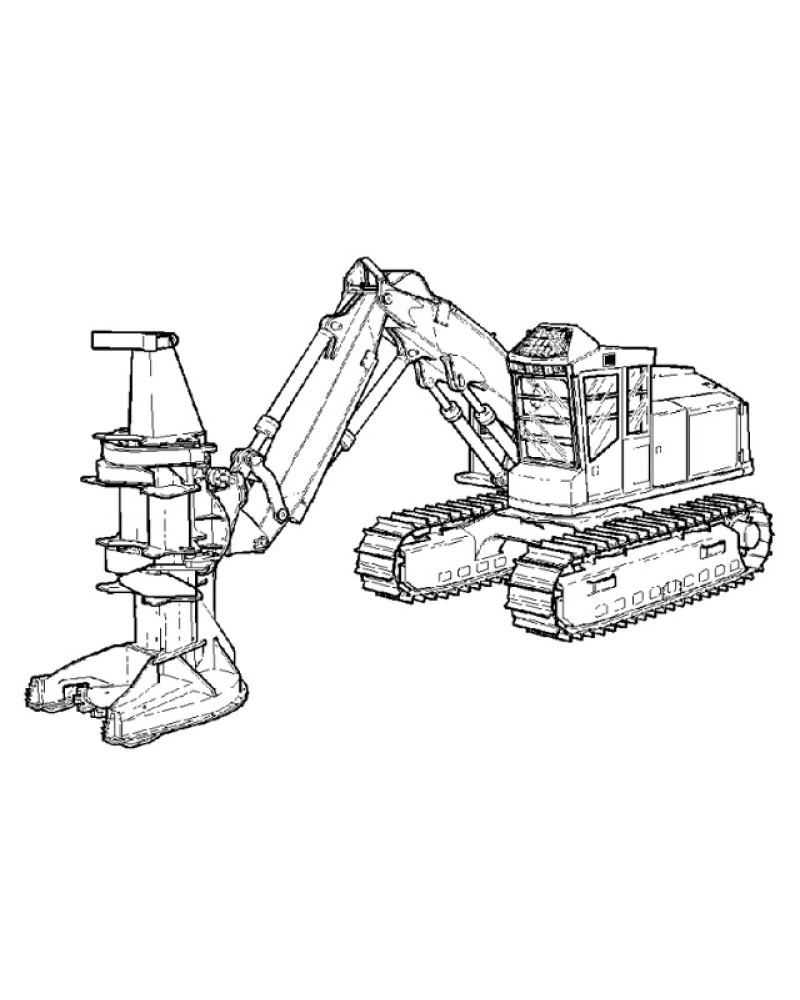

Timberjack 850 and 950 (SN: 10BA1272-) Tracked Feller Bunchers Technical Manual (TMF435673)

Illustrated factory Technical Manual for Timberjack Tracked Feller Bunchers Models 850 and 950.

This manual will assist you in diagnosing, and repairing for your feller buncher or tracked feller buncher.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   850 (SN: 10BA1272-)
   950 (SN: 10BA1272-)

Format: PDF, 428 pages
Language: English
Publication Date: 06 Jan 2001
Table of Contents:
   Revision Log
   Table of Contents
   Introduction and Specification
      Introduction
      Foreword
      Machine Dimensions
      Specifications
      Function Speeds
      Travel Speeds
      Torque Values
      Hydraulic Fluids
      Applicaiton of Adhesives
      Tool List
      Modifications or Repairs to Roll-over Protective Structures (ROPS)
   Safety Rules
      General
      Safety Symbol
      Understanding Signal Words
      General Safety Precautions
      Operating Safety Precautions
      Servicing Safety Precautions
      Transporting on Public Roads
      Fire Prevention
      What to Do if the Machine Catches Fire
   Power Unit
      Engine Mounting
      Air Intake System
      Exhaust System
      Engine Cooling System

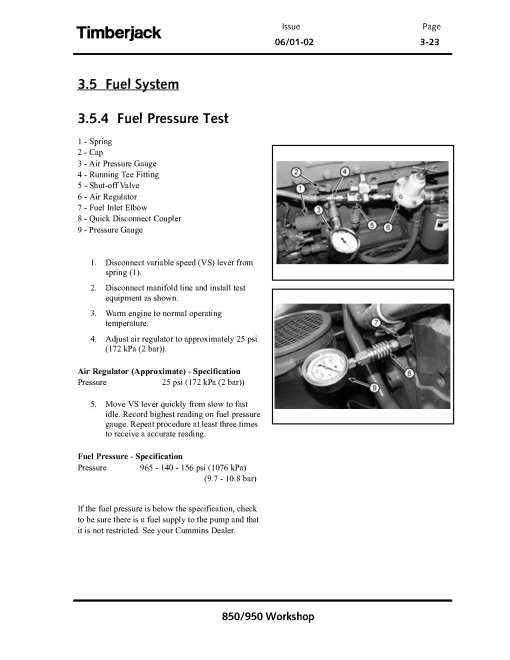

      Fuel System
      Engine
      Setting the Power Control
      Troubleshooting
   Power Train
      General

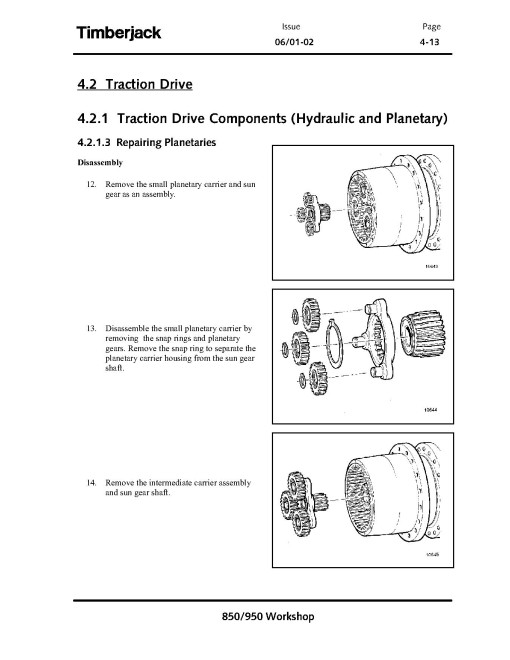

      Traction Drive
      Swing Drive
   Brake Systems
      General
      Track Brakes
      Swing Brake
   Hydraulic System
      Principles of Operation and Terminology
      Hydraulic Pump
      Hydraulic Control Valve - Main
      Hydraulic Tank
      Hydraulic System Filling
      Hydraulic Oil Cooling System
      Hydraulic Pressure Testing and Adjustment
   Electrical System

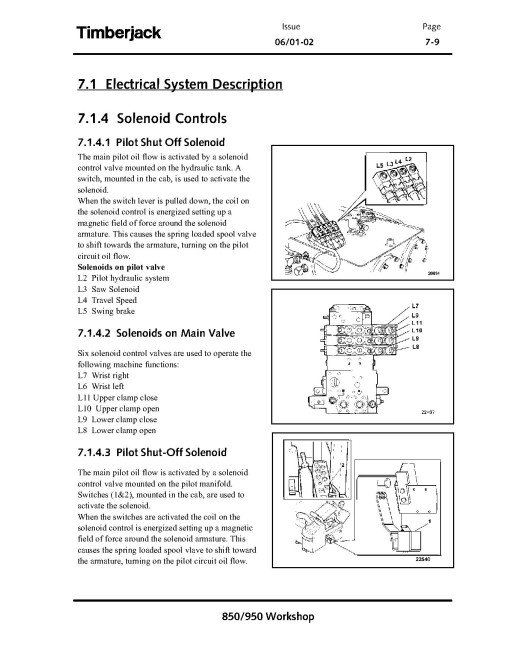

      Electrical System Description
      Electrical Circuit Testing
      Coding and Symbols
      Batteries
      Component Locator
   Attachments
   Frames
      Cab
      Auto-Lubrication System (Option)
   Heating & Air Conditioning
      System Description
      Air Conditioning
   Index
   A
   B
   C
   D
   E
   F
   G
   H
   I
   L
   M
   O
   P
   R
   S
   T
   U
   V
   W
   Z
