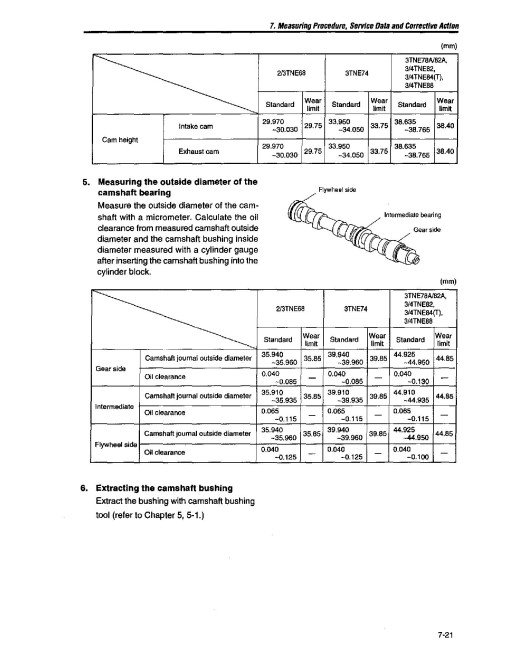

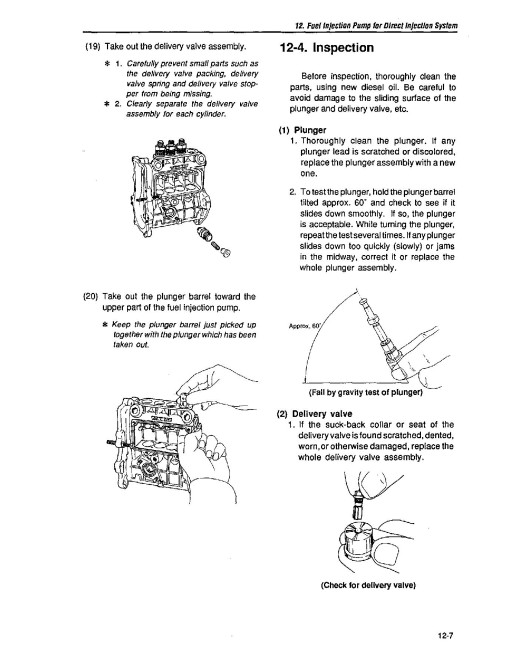

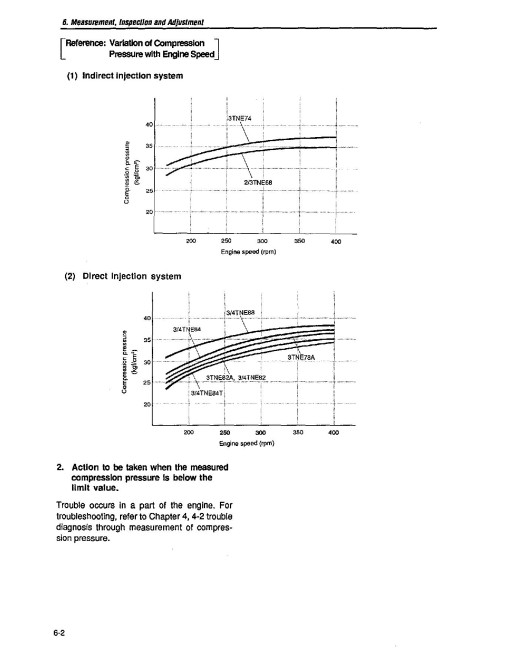

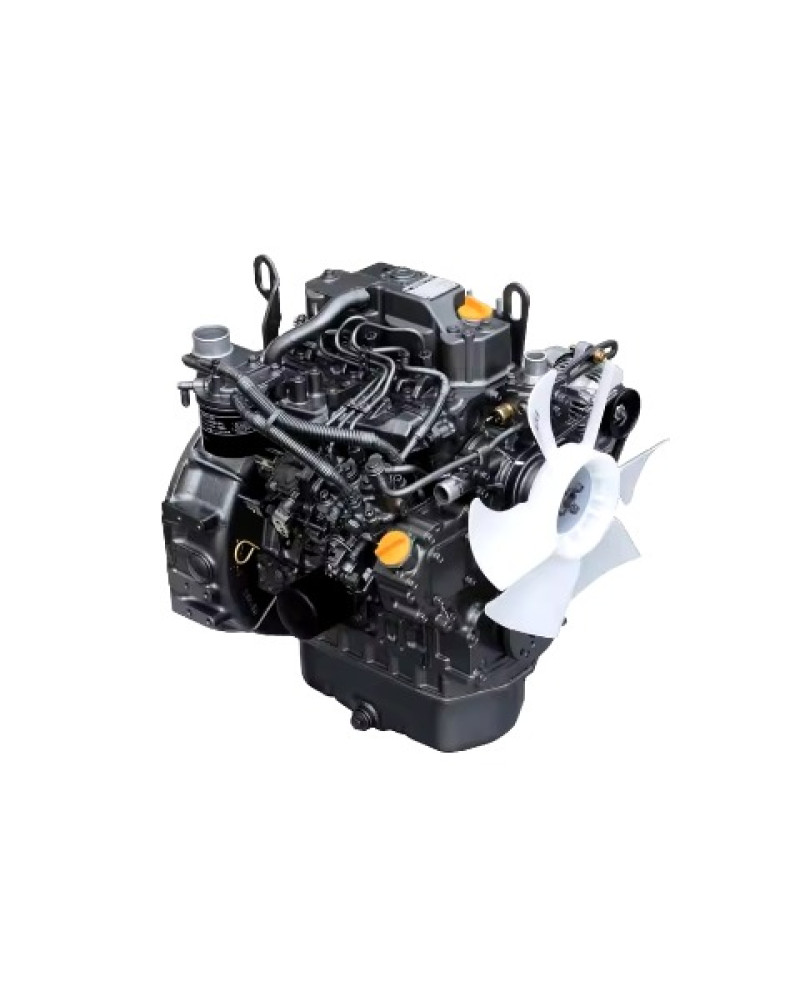

Yanmar 2TNE68, 3TNE68, 3TNE74, 3TNE78A, 3TNE82, 3TNE82A, 3TNE84(T), 3TNE88, 4TNE82, 4TNE84(T), 4TNE88 Engines Service Manual

Illustrated factory Engine Technical Manual for Yanmar Diesel Engines Models 2TNE68, 3TNE68, 3TNE74, 3TNE78A, 3TNE82, 3TNE82A, 3TNE84, 3TNE84T, 3TNE88, 4TNE82, 4TNE84, 4TNE84T and 4TNE88.

This manual will assist you in repairing engine for your engine or diesel engine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   2TNE68
   3TNE68
   3TNE74
   3TNE78A
   3TNE82
   3TNE82A
   3TNE84
   3TNE84T
   3TNE88
   4TNE82
   4TNE84
   4TNE84T
   4TNE88

Format: PDF, 136 pages
Language: English
Table of Contents:
   Specifications and Performance
   Cross Sectional Views
      Special Swirl Pre-combustion Chamber System
      Direct Injection System
   Cooling Water,Lubricating Oil and Fuel Oil
      Cooling water
      Lubricating oil
      Fuel oil
   Troubleshooting
      Trouble causes and remedies
      Trouble diagnousis through measurement of compression pressure
   Special Service Tools and Measuring Instruments
      Special service tools
      Measuring instruments
   Measurement,Inspection and Adjustment
      Measuring the compression pressure
      Adjusting the valve head clearance
      Checking the V-belt tension
      Measuring and checking the injection pressure and spray patterns of the fuel injection valve
      Checking and adjusting the fuel injection timing
      Adjusting the no-load maximum(or minimum)revolutions
      Checking the cooling water system and radiator for water leakage
      Checking the battery
      Checking sensors
      Checking the oil cooler
      Checking the piston cooling nozzle
   Measuring Procedures,Service Data and Corrective Action
      Cylinder head
      Cylinder block
      Valve rocker arm
      Piston and piston ring
      Connecting rod
      Camshaft
      Crankshaft
      Gears
      Trochoid pump
   Disassembly and Reassembly
      Disassembly
      Precautions before and during reassembly
   Service Data
      Cylinder head
      Cylinder block
      Valve rocker arm
      Piston
      Piston ring
      Connecting rod
      Camshaft
      Crankshaft
      Side gap and backlash
      Others
   Tightening Torque
      Main bolt/nut
      Standard bolt and nut
   Fuel Injection Pump for Indirect Injection System
      Exploded views(YPFR type)
      Disassembly
      Inspection
      Reassembly
   Fuel Injection Pump for Direct Injection System
      Exploded Views(YPES type)
      Special service tools for disassembly and reassembly
      Disassembly
      Inspection
      Reassembly
   Governor
      Exploded views of governor for indirect injection system
      Exploded views of governor for direct injection system
      Disassembly
      Inspection
      Reassembly
   Turbocharger
      Specifications
      Construction
      Waste gate valve adjusting method
      Exploded view of Turbocharger(w/waste gate)
      Tightening torque
      Service standards
   Service information for CARB ULG regulation
      Emission control labels
      Limiting the high idle and low idle adjustment screw
      Limiting the fuel volume limiter screw
   Attached Drawing 1. Exploded Views of Engine Components
   Attached Drawing 2. Exploded Views of Engine Components
