Flexi-Coil 68 and 68XL (SN up to Y9S005000) Field Sprayers Repair Manual (87606610)

Illustrated factory Repair Manual for Flexi-Coil Field Sprayers Models 68 and 68XL.

This manual will assist you in assembling, disassembling, and repairing for your field sprayer.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   68 (SN: -Y9S005000)
   68XL (SN: -Y9S005000)

Format: PDF, 456 pages
Language: English
Table of Contents:

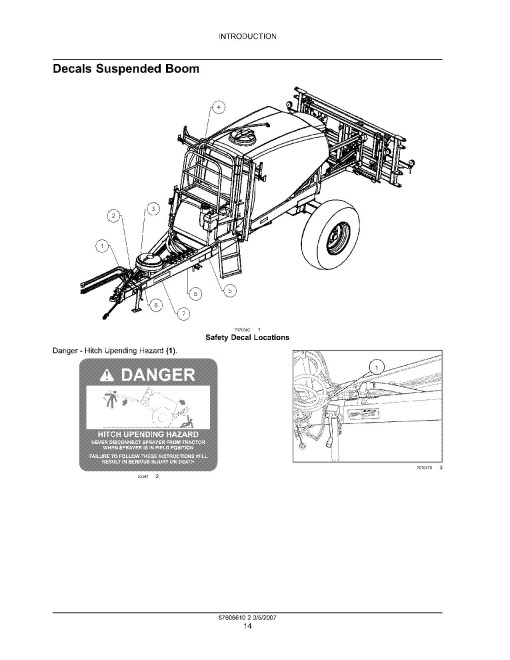

   INTRODUCTION
   DISTRIBUTION SYSTEMS - A
      LIGHTING SYSTEM - 40.A
      FAULT CODES - 50.A
   TRAVELLING - D

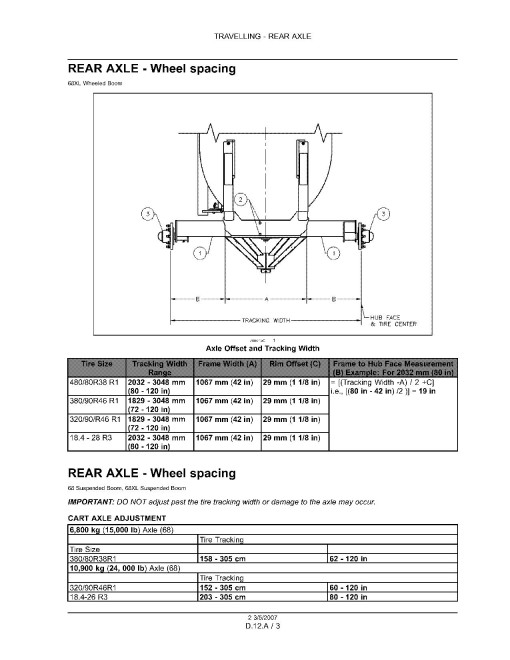

      REAR AXLE - 12.A
      WHEELS AND TRACKS Wheels - 50.C
   BODY AND STRUCTURE - E
      FRAME Secondary frame - 10.C
   FRAME POSITIONING - F
      TRAVELLING Folding - 10.E
   WORKING ARM - H
      HITCH Front hitch - 10.B
      BOOM Tilt - 20.C

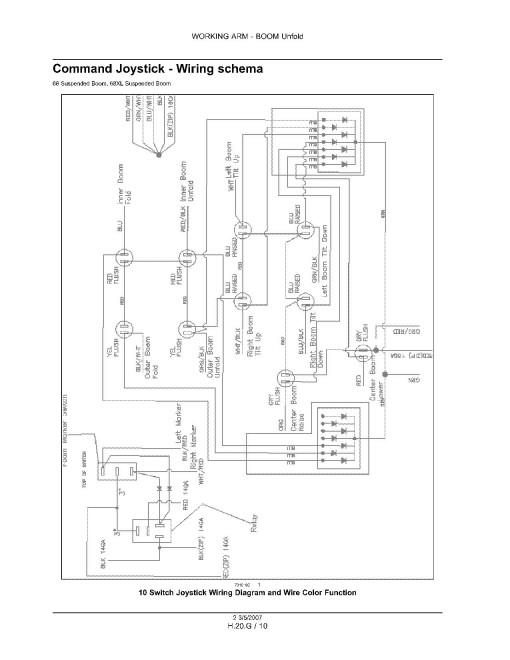

      BOOM Unfold - 20.G
      BOOM Levelling - 20.H
   FIELD PROCESSING - L
      SPRAYING - 20.A
      SPRAYING Plumbing system - 20.B
      SPRAYING Pressure system - 20.C
      SPRAYING End marker - 20.D
