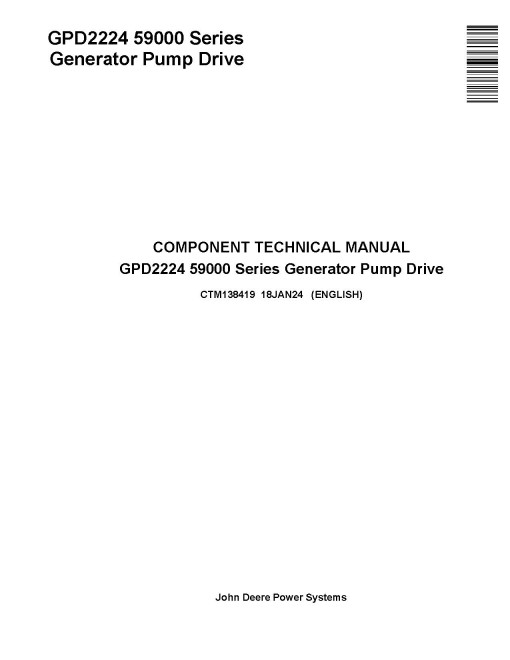

John Deere 59000 Series GPD2224 Generator Pump Drives Component Technical Manual (CTM138419)

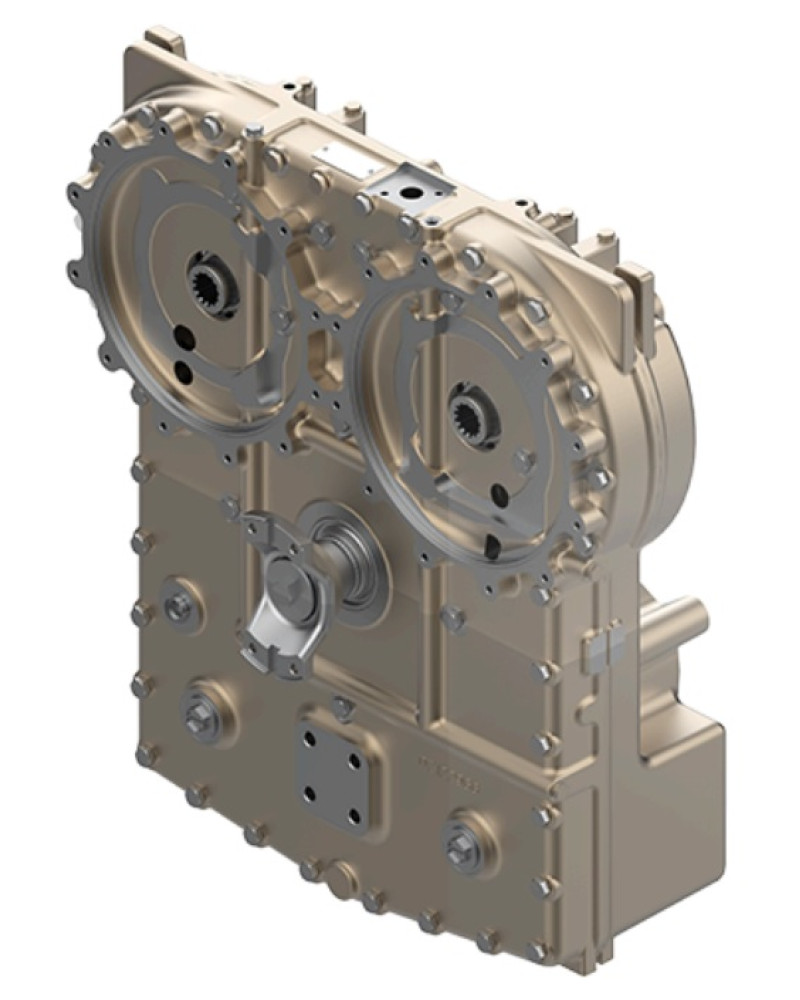

Illustrated factory Component Technical Manual for John Deere 59000 Series Generator Pump Drives Models GPD2224.

This manual will assist you in diagnosing, assembling, disassembling, and repairing for your pump drive.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   59000 Series GPD2224

Format: PDF, 102 pages
Language: English
Publication Date: 18 Jan 2024
Table of Contents:
   Introduction
      Foreword
      Trademarks

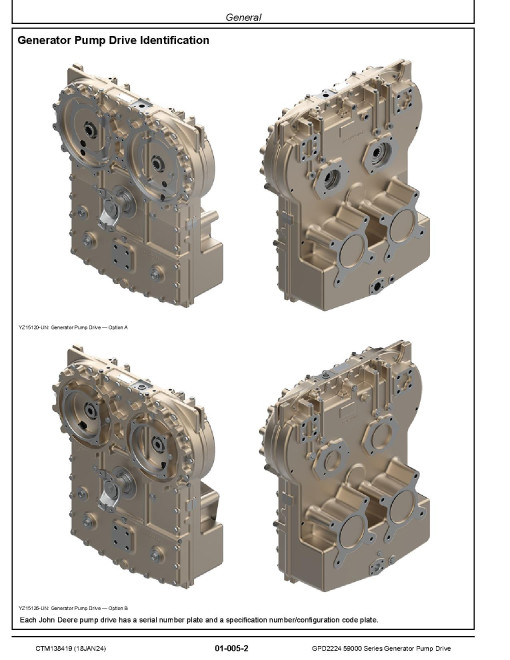

   General Information
      Safety
      General
   Repair and Adjustments
      Pump Drive Repair Stand
      Input Yoke

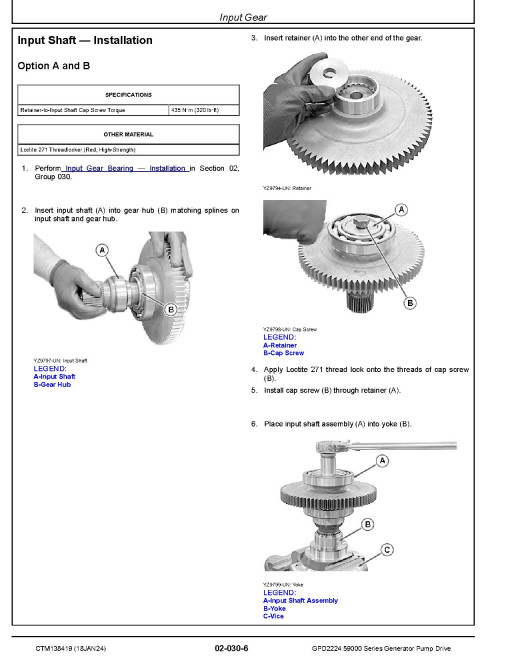

      Input Gear
      Hydraulic Pump Drive Gears
      Generator Drive Gear

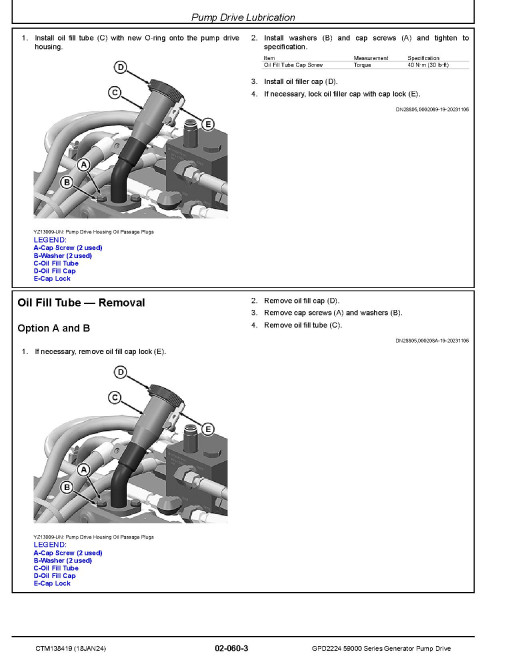

      Pump Drive Lubrication
      Pump Drive Housing
      Pump Drive Serial Number Plate
   Theory of Operation
      Pump Drive Operation
   Diagnostics
      Observable Diagnostics
   Tools and Other Materials
      Special Tools
      Lubricants, Sealants, and Other Materials
   Specifications
      Bolts and Cap Screws Specifications
      Sealants and Adhesives Cross-Reference
