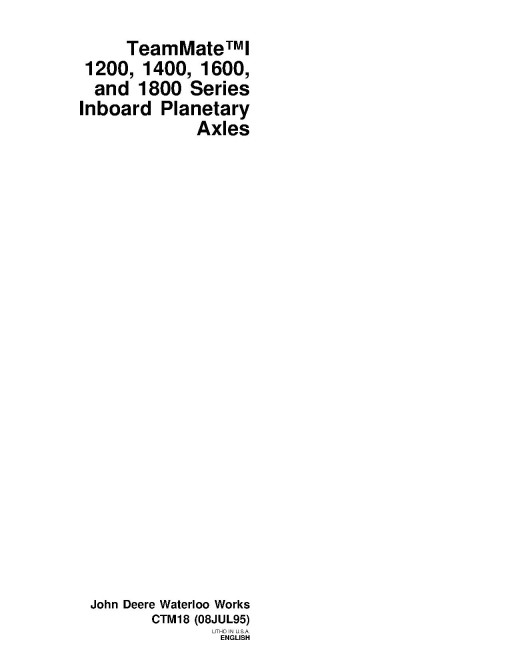

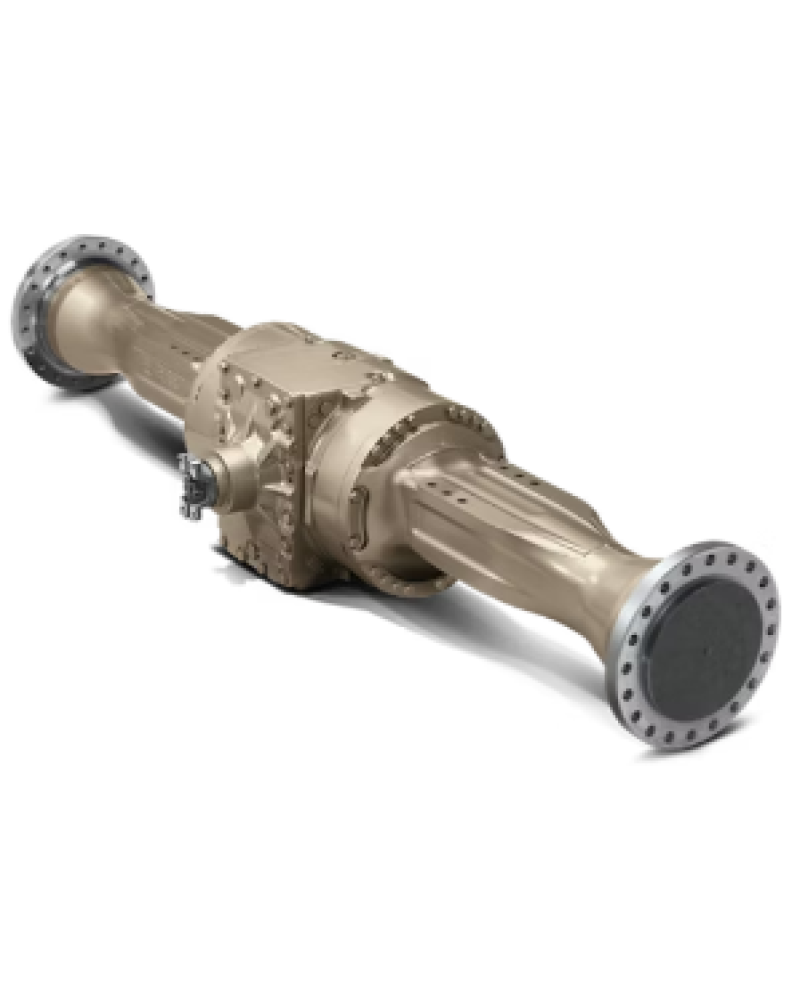

Funk TeamMate I 1200, 1400, 1600 and 1800 Series Inboard Panetary Axles Component Technical Manual (CTM18)

Illustrated factory Component Technical Manual for Funk TeamMate I Inboard Panetary Axles Models 1200 Series, 1400 Series, 1600 Series and 1800 Series.

This manual will assist you in diagnosing, assembling, disassembling, and repairing for your inboard panetary axle.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   TeamMate I 1200 Series
   TeamMate I 1400 Series
   TeamMate I 1600 Series
   TeamMate I 1800 Series

Format: PDF, 315 pages
Language: English
Table of Contents:
      Safety
      General
      Oscillating Supports
      Input Quill (1200 and 1400)
      Input Housing/Cover (1600 Agricultural)
      Input Housing/Cover (1600 Industrial and OEM)
      Input Quill (1800)

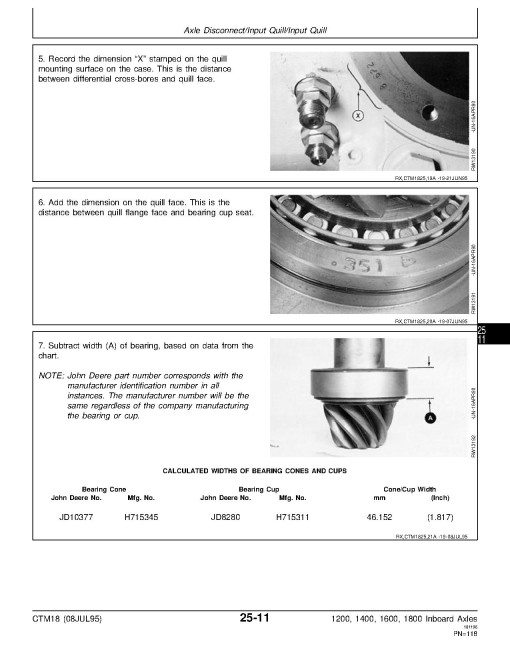

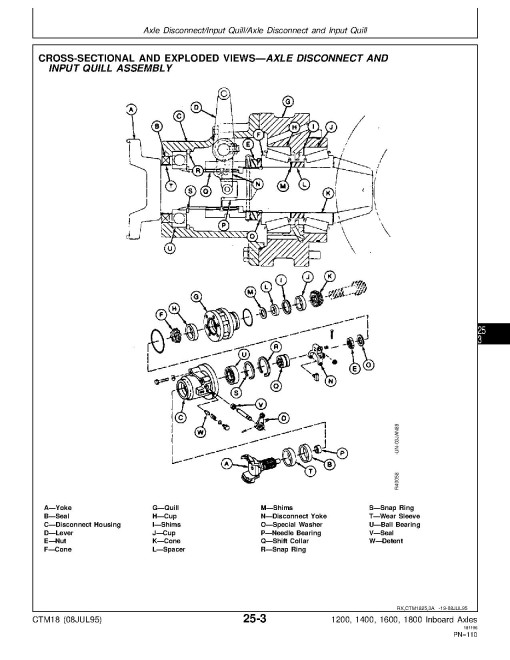

      Axle Disconnect/Input Quill
      Differential (1200, 1400, and 1800)
      Differential (1600)
      No-SPIN Differential (1200 and 1400)
      No-SPIN Differential (1600)
      Axle Housings and Shafts
      Service Brake
      Park Brake (Drum-Expanding Shoe)
      Park Brake (SAHR Brake)
      Troubleshooting
      BrakeTest, Adjust, and Bleed
      Operational Checks
      Differential and Axle Assembly Tests
      Theory of Operation
      Dealer Fabricated Tools
