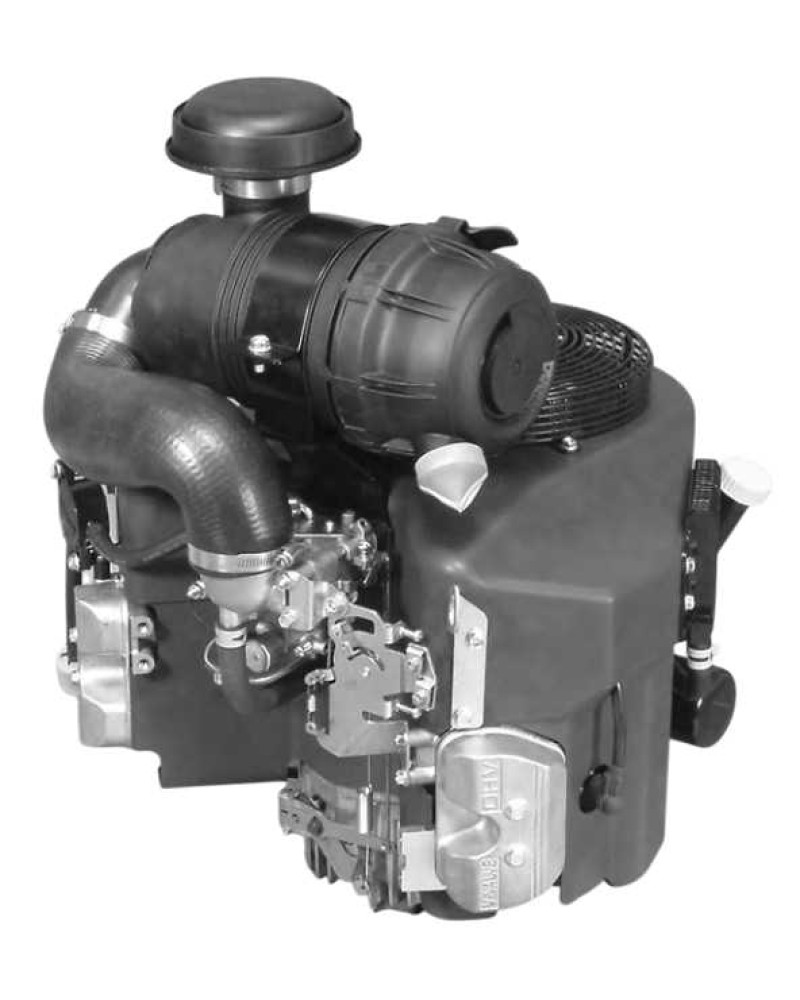

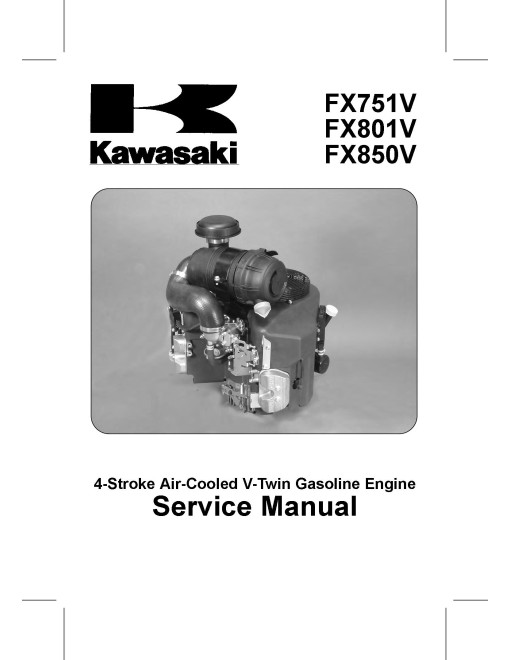

Kawasaki FX751V, FX801V and FX850V 4-Stroke Air-Cooled V-Twin Gasoline Engines Service Manual (KW-99924-2089-01)

Illustrated factory Service Manual for Kawasaki Gasoline Engines Models FX751V, FX801V and FX850V.

This manual will assist you in diagnosing, analyses, testing, and repair for your engine or gasoline engine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FX751V
   FX801V
   FX850V

Format: PDF, 153 pages
Language: English
Table of Contents:
   Cylinder Number Designation:
   Basic Torque for General Fasteners
   Low Idle Speed (Carburetor idle rpm)
   Low Idle Speed (Governor idle rpm)
   High Idle Speed
   Valve Clearance (when cold)
   Valve Seating Surface Width (STD)
   Special Tools
   Engine Oil:
   Spark Plug Gap
   High Altitude Main Jet
   Rocker Arm Push Rod Runout
   Cylinder Head Warp
   Rocker Shafts Outside Diameter
   Rocker Arm Inside Diameter
   Valve Head Thickness
   Valve Stem Runout
   Valve Stem Diameter

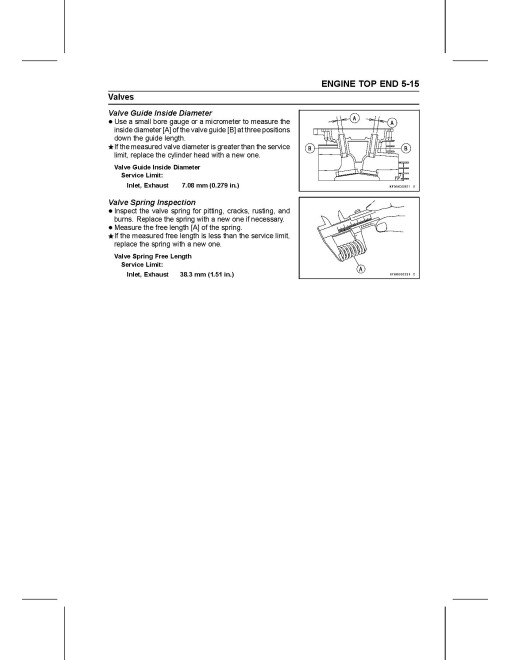

   Valve Guide Inside Diameter
   Valve Spring Free Length
   Piston Ring/Groove Clearance
   Piston Ring Thickness
   Piston Ring End Gap
   Piston Pin Outside Diameter
   Piston Pin Hole Inside Diameter
   Connecting Rod Small End Inside Diameter
   Piston Diameter
   Cylinder Inside Diameter
   Cylinder Inside Diameter Out Round
   Oil Pressure
   Measurement Condition
   Inner and Outer Rotor Clearance
   Outer Rotor Outside Diameter
   Outer Rotor Thickness
   Pump Housing Inside Diameter
   Pump Housing Depth
   Pump Shaft Outside Diameter
   Pump Shaft Bearing Inside Diameter
   Relief Valve Spring Free Length
   PTO Shaft Bearing Inside Diameter
   Cam Lobe Height
   Camshaft Journal Diameter
   Camshaft Bearing Inside Diameter (Crankcase)
   Camshaft Bearing Inside Diameter (Crankcase Cover)
   Connecting Rod Bend
   Connecting Rod Twist
   Connecting Rod Big End Width
   Crankpin Width
   Connecting Rod Big End Inside Diameter
   Crankpin Outside Diameter
   Crankshaft Runout

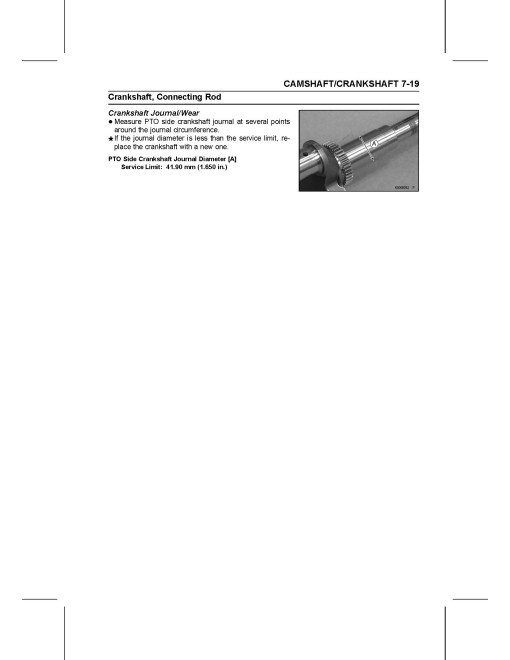

   PTO Side Crankshaft Journal Diameter [A]
   Brush Length
   Commutator Groove Depth (approx.)
   Commutator Outside Diameter
   Commutator Runout
   Armature Winding Resistance
   Commutator to Shaft Resistance
   Positive Brush to Ground Resistance
   Negative Brush to Ground Resistance
   Regulated Output Voltage
   Stator Coil Resistance
   Unregulated Stator Output (MIN)
   (Without Charging Monitor Type 3 Blades)
   Ignition Coil Air Gap
   Ignition Coil Winding Resistance
   EMISSION CONTROL INFORMATION
