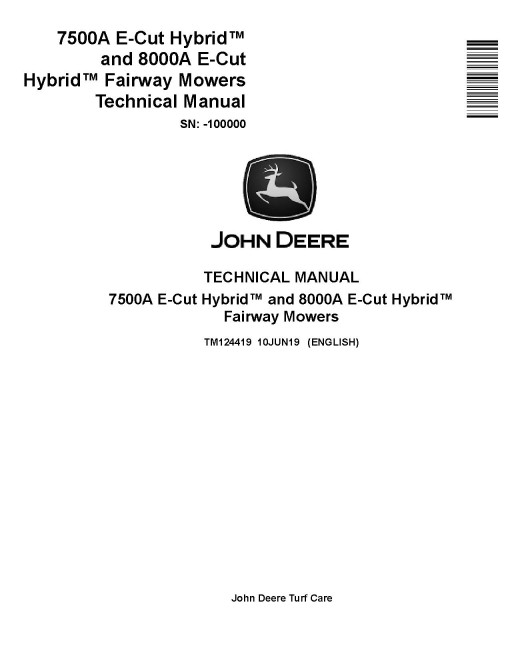

John Deere 7500A E-Cut Hybrid™ and 8000A E-Cut Hybrid™ Fairway Mowers (SN. up to 100000) Technical Manual (TM124419)

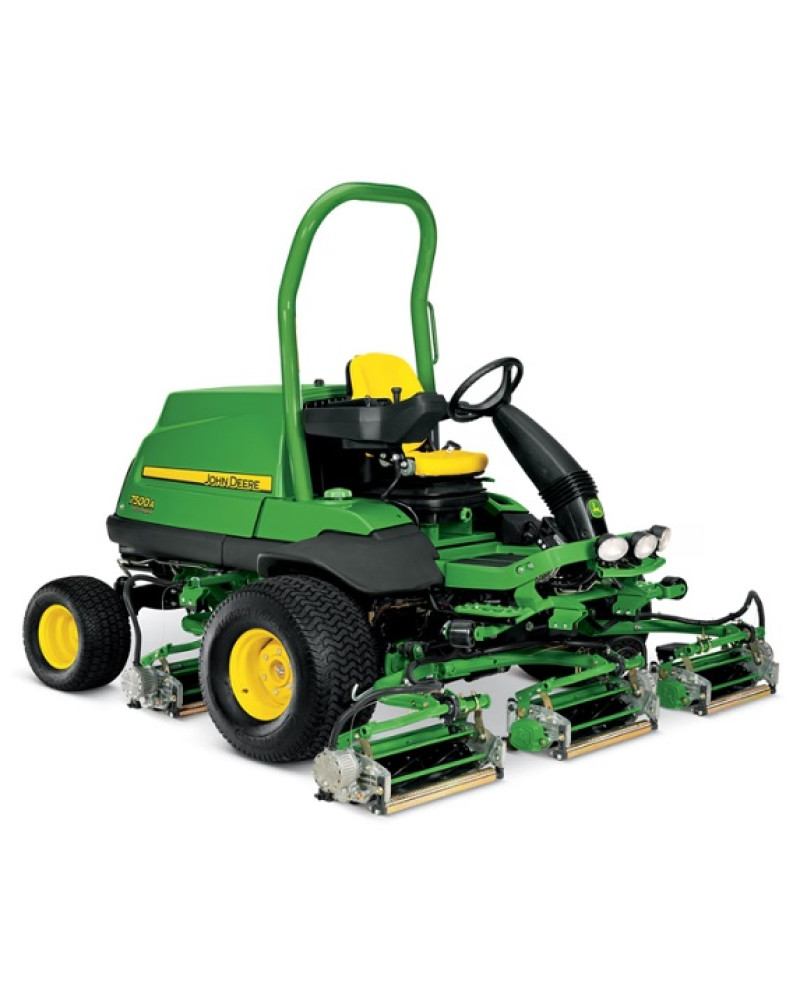

Illustrated factory Technical Manual for John Deere Fairway Mowers Models 7500A E-Cut Hybrid™ and 8000A E-Cut Hybrid™.

This manual will assist you in diagnosing, and repairing for your fairway mower.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   7500A E-Cut Hybrid™ (SN: -100000)
   8000A E-Cut Hybrid™ (SN: -100000)

Format: PDF, 1062 pages
Language: English
Publication Date: 10 Jun 2019
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Machine Specifications
   Engine Repair
      Starting Motor Repair
      Turbocharger Repair
      Engine Repair 3TNV84T
      Engine Repair 3TNV86CT
   Electrical Repair
      Alternator and Battery
      Wiring Harnesses
   Power Train Repair
      Power Train
   Hydraulics Repair
      Hydraulics
      Hydraulic Pumps
   Steering Repair
      Steering
   Attachments Repair
      Reel Motor
      QA5 Cutting Unit
      QA5 Cutting Unit Attachments
   Miscellaneous Repair
      Miscellaneous
      Operator`s Station
      Fuel System
   Engine Operation, Tests, and Adjustments
      Theory of Operation
      Engine Diagnosis
      Non-T4 Fuel and Air Operation, Tests, and Adjustments
      Turbocharger Operation, Tests, and Adjustments
      Engine Tests, and Adjustments
   Electrical Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Connectors
      Schematics
      Tests and Adjustments
   Controller Operation, Tests, and Adjustments
      Set Up, PDU
      Theory of Operation
      DPF Theory and Functions
      Diagnose-DTCs, PDU
      Diagnose-DTCs, VCU
      Diagnose-DTCs, ECU 000001 - 000199
      Diagnose-DTCs, ECU 000200 - 000699
      Diagnose-DTCs, ECU 000700 - 001999
      Diagnose-DTCs, ECU 002000 - 002999
      Diagnose-DTCs, ECU 003000 - 003999
      Diagnose-DTCs, ECU 004000 - 529999
      Diagnose-DTCs, RMC
      Tests and Adjustments
   Power Train Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Hydraulics Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
      Hydraulic Schematics
   Steering and Brake Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Attachments Operation, Tests, and Adjustments
      Component Location
      Theory of Operation
      Diagnosis
      Tests and Adjustments
   Service Tools
      Tools and Kits
