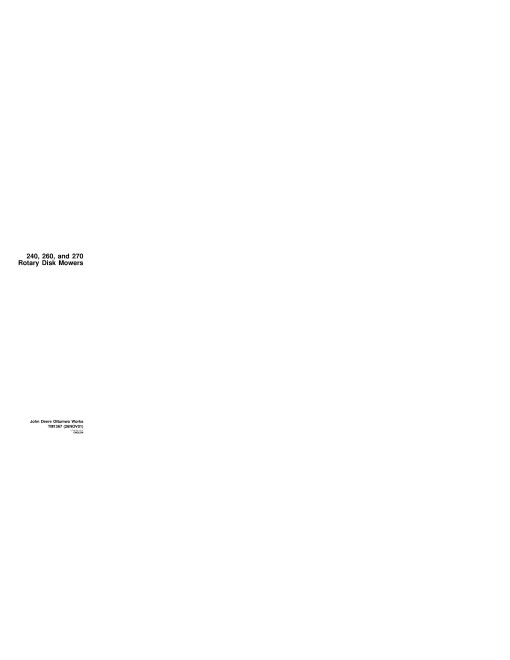

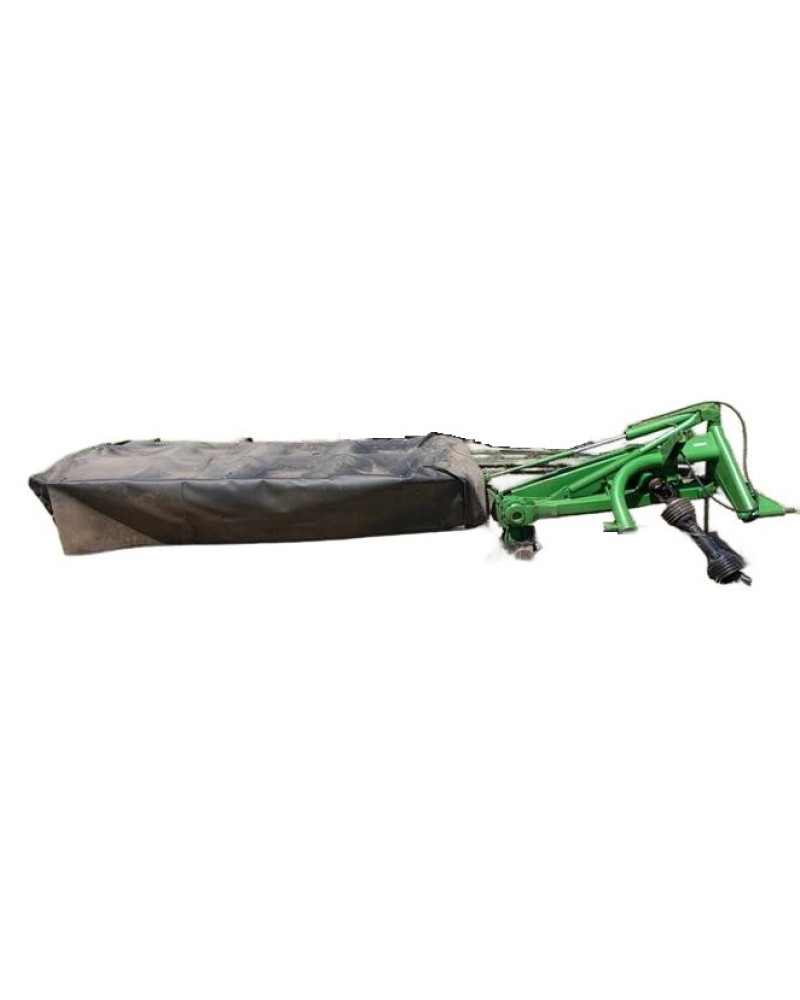

John Deere 240, 260 and 270 Rotary Disk Mowers Technical Manual (TM1367)

Illustrated factory Technical Manual for John Deere Rotary Disk Mowers Models 240, 260 and 270.

This manual will assist you in diagnosing, and repairing for your rotary disk mower.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   240
   260
   270

Format: PDF, 53 pages
Language: English
Publication Date: 26 Nov 2001
Table of Contents:
   Safety
   PREPARE FOR EMERGENCIES
   AVOID HIGH-PRESSURE FLUIDS
   PARK MACHINE SAFELY
   SUPPORT MACHINE PROPERLY
   WEAR PROTECTIVE CLOTHING
   WORK IN CLEAN AREA
   SERVICE MACHINES SAFELY
   ILLUMINATE WORK AREA SAFELY
   REPLACE SAFETY SIGNS
   USE PROPER LIFTING EQUIPMENT
   REMOVE PAINT BEFORE WELDING OR HEATING
   AVOID HEATING NEAR PRESSURIZED FLUID LINES
   PRACTICE SAFE MAINTENANCE
   USE PROPER TOOLS
   DISPOSE OF WASTE PROPERLY
   LIVE WITH SAFETY
   Specifications
   ROTARY DISK MOWER SPECIFICATIONS
   METRIC BOLT AND CAP SCREW TORQUE VALUES
   Troubleshooting
   PTO HOOKUP DIFFICULTIES
   GEAR CASE DIFFICULTIES
   CUTTERBAR AND DISK DIFFICULTIES
   PTO Hookup
   DISASSEMBLE PTO HOOKUP
   INSPECT HOOKUP
   ASSEMBLE HOOKUP
   Hydraulic Cylinder Lift Linkage
   REMOVE HYDRAULIC CYLINDER LIFT LINKAGE

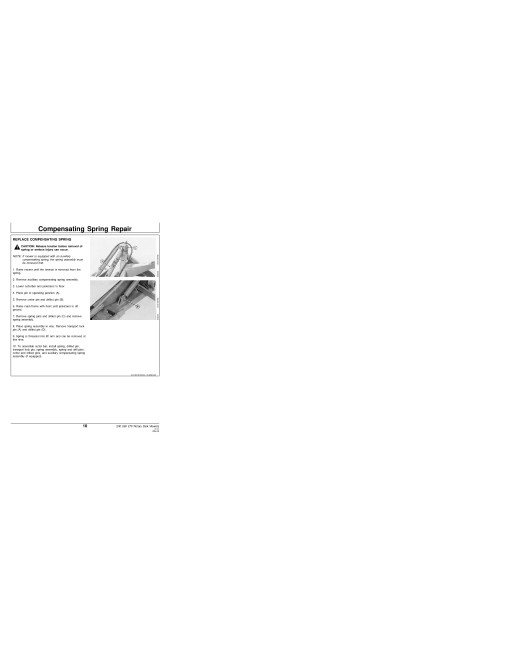

   Compensating Spring Repair
   REPLACE COMPENSATING SPRING
   Gear Case Repair
   ESSENTIAL TOOLS
   REMOVE GEAR CASE
   DISASSEMBLE GEAR CASE
   INSPECT GEAR CASE COMPONENTS
   ASSEMBLE GEAR CASE
   INSTALL GEAR CASE
   ADJUST DRIVE BELTS
   CHECK AND FILL GEAR CASE
   Cutterbar Repair
   ESSENTIAL TOOLS
   INSPECT CUTTERBAR KNIVES
   REPLACE KNIVES
   INSPECT KNIFE BOLTS
   ROTATE DISKS
   REMOVE DISK
   INSTALL DISK
   REMOVE AND INSTALL CUTTERBAR
   DISASSEMBLE CUTTERBAR
   INSPECT CUTTERBAR

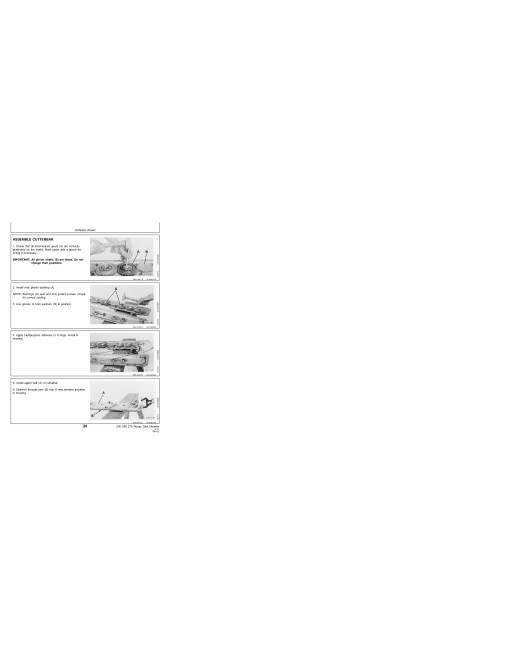

   ASSEMBLE CUTTERBAR
   REMOVE AND INSTALL PINION SHAFT
   REPLACE QUILL BEARING
   REMOVE INTERMEDIATE GEAR
   INSTALL INTERMEDIATE GEAR
   REMOVE DRIVE GEAR
   INSTALL DRIVE GEAR
   Cutting Height Kit
   INSTALL 80 MM (3 IN.) CUTTING HEIGHT KIT
