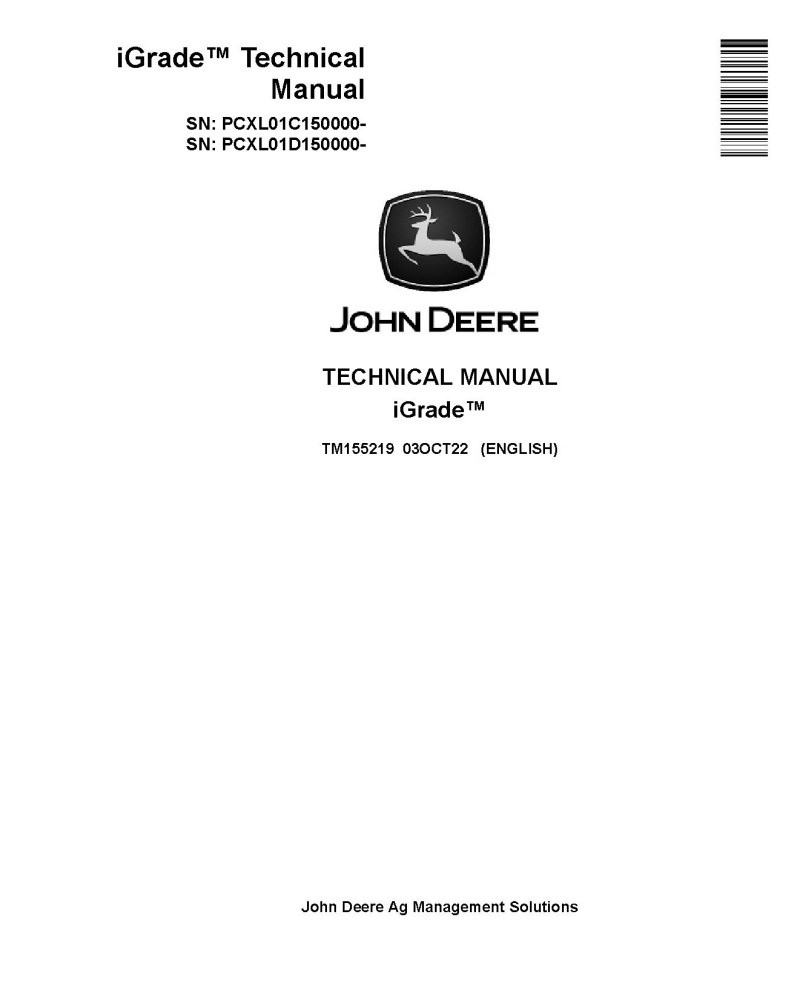

John Deere iGrade™ (PIN. from PCXL01C150000, PCXL01D150000) System Technical Manual (TM155219)

Illustrated factory Technical Manual for John Deere iGrade™.

This manual will assist you in diagnosing, and repairing for your system.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   iGrade™ (PIN: PCXL01C150000-; PCXL01D150000-)

Format: PDF, 238 pages
Language: English
Publication Date: 03 Oct 2022
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General References

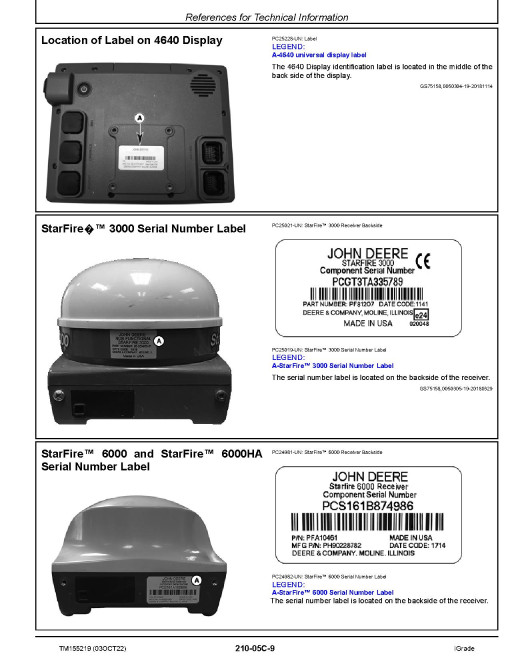

      References for Technical Information
      Theory of Operation
      Factory Support Information
   Diagnostic Trouble Codes
      Diagnostic Trouble Codes
   Observable Symptom and System Diagnostics
      Electronic Control Units
      Electronic Control Units (Distance Trip System)
      Electronic Control Units (iGrade System)
   Electrical
      General Information
      Diagnostic Tests and Adjustments
   Electronic Control Units
      General Information
      Operational and Preliminary Checks
      Interactive Tests and Calibrations
      Programming Electronic Control Units
      Schematic
      Universal Application Controller Addresses (UCC)
   Electrical Component Information
      General Information

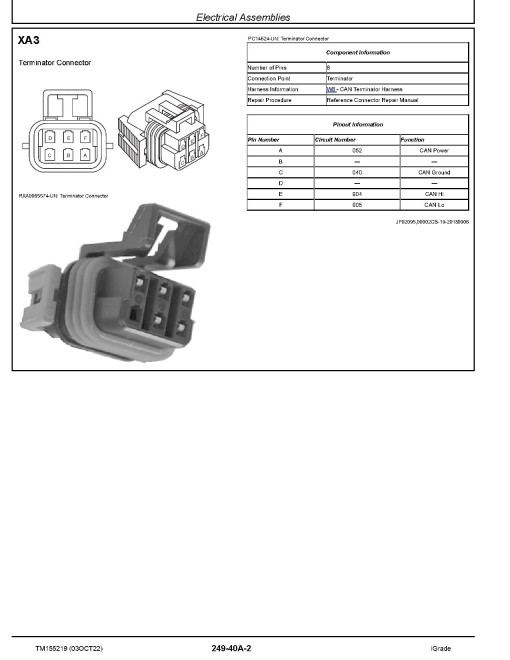

      Electrical Assemblies
      Wiring Harnesses
      Interconnects and Ground Points
   Steering

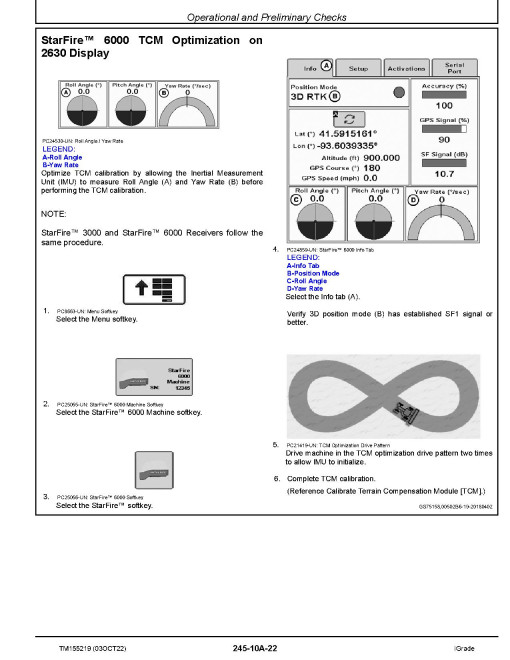

      Operational and Preliminary Checks
      Diagnostic Tests and Adjustments
   Hydraulics
      General Information
      Operational and Preliminary Checks
      Diagnostic Tests and Adjustments
