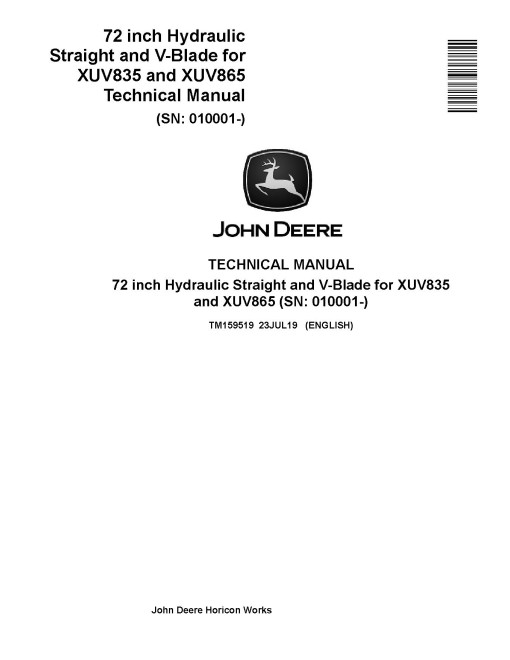

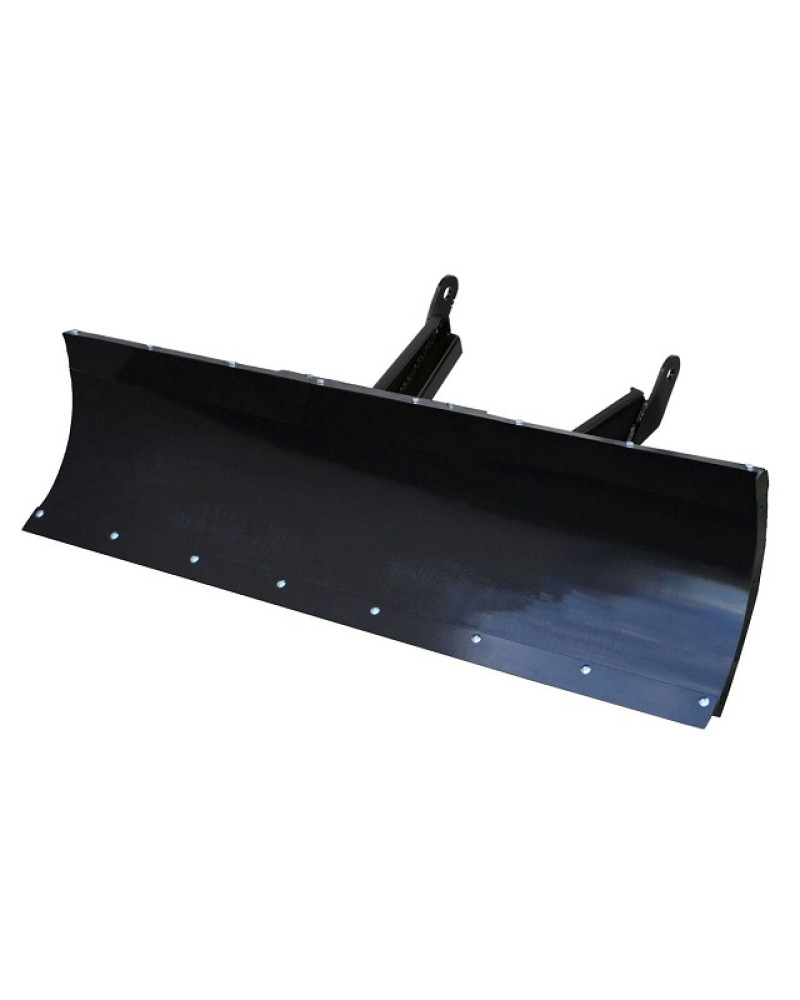

John Deere 72 inch Hydraulic Straight and V-Blade Gator Attachments Technical Manual (TM159519)

Illustrated factory Technical Manual for John Deere Gator Attachments Models 72 inch Hydraulic Straight and V-Blade.

This manual will assist you in diagnosing, and repairing for your gator attachment.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   72 inch Hydraulic Straight
   V-Blade

Format: PDF, 255 pages
Publication Date: 23 Jul 2019
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Specifications
      Fuel and Lubricants
      Machine Specifications
   Electrical Repair

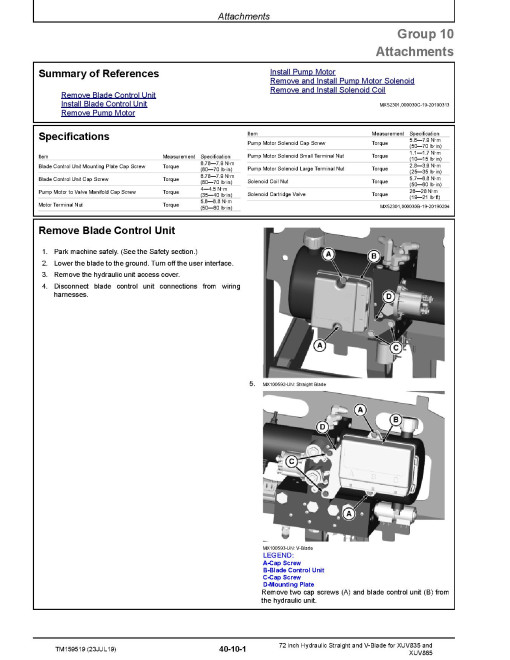

      Attachments
   Hydraulic Repair
      Hydraulic Unit
      Hydraulic Cylinder
   Miscellaneous Repair

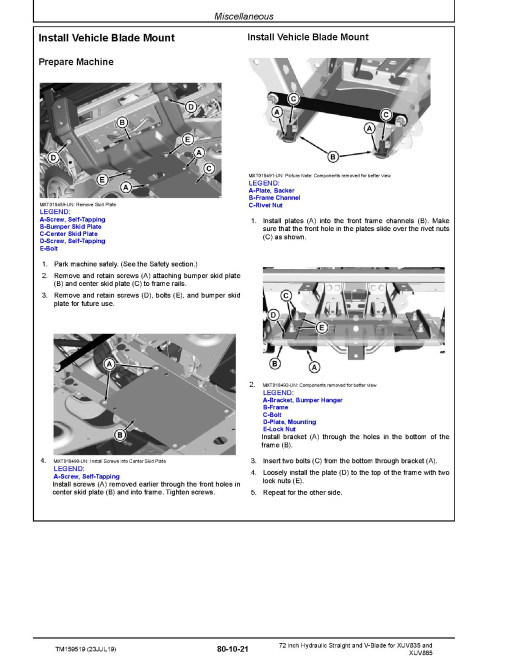

      Miscellaneous
   Operator`s Station Repair
      Operator`s Station
   Diagnostics-General Information
      Troubleshooting
   Diagnostic Trouble Codes
      Accessing Diagnostic Trouble Codes and Addresses
      Blade Control Unit-Diagnostic Trouble Codes
   Observable Symptoms
      Electrical Systems
      Electrical Control Units
      Hydraulic systems
   Electrical - Systems

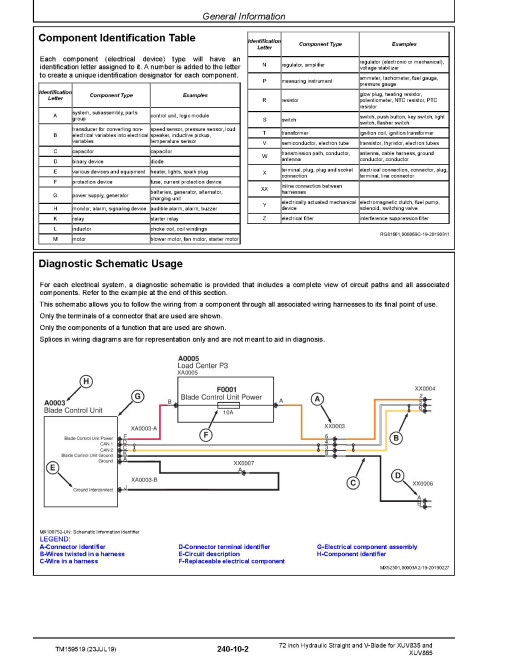

      General Information
      Theory of Operation-Attachment Assembly
      Schematics-Attachment Assembly
      Tests and Adjustments-Attachments
      Diagnostics-Attachments
   Electrical - Control Units
      Theory of Operation
      Schematics
      Diagnostics
   Electrical - Connectors
      Summary of References
      General Information
      XA-Electrical Assembly Connectors
      XM-Motor Connectors
      XX-Inline Connectors
      XY-Solenoid Connectors
   Hydraulic Systems
      Theory of Operation-Attachments
      Schematics-Attachments
      Tests and Adjustments-Attachments
      Diagnostics-Attachments
   Hydraulic Systems - Components
      Summary of References
      Hydraulic Components
   Special Tools
      Tools
