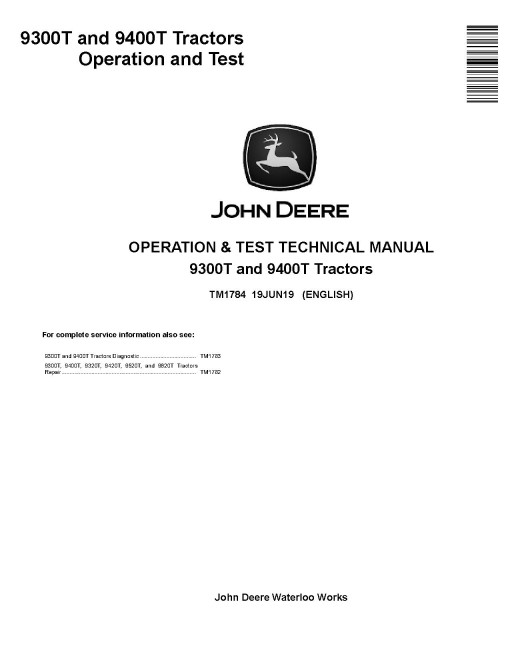

John Deere 9300T and 9400T Tracked Tractors Operation and Test Manual (TM1784)

Illustrated factory Operation and Test Manual for John Deere Tracked Tractors Models 9300T and 9400T.

This manual will assist you in diagnosing, and troubleshooting for your tracked tractor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   9300T
   9400T

Format: PDF, 969 pages
Language: English
Publication Date: 19 Jun 2019
Table of Contents:
   Introduction
      Foreword
   GENERAL
      Safety
      General Specifications
      General References
   ENGINE
      Operational Checks
      Tests and Adjustments
      Theory of Operation
   FUEL AND AIR
      Theory of Operation
   ELECTRICAL
      Tests and Adjustments
      Theory of Operation
      Schematics and Diagrams
   CONTROL UNITS
      Codes and Addresses
      ACU References

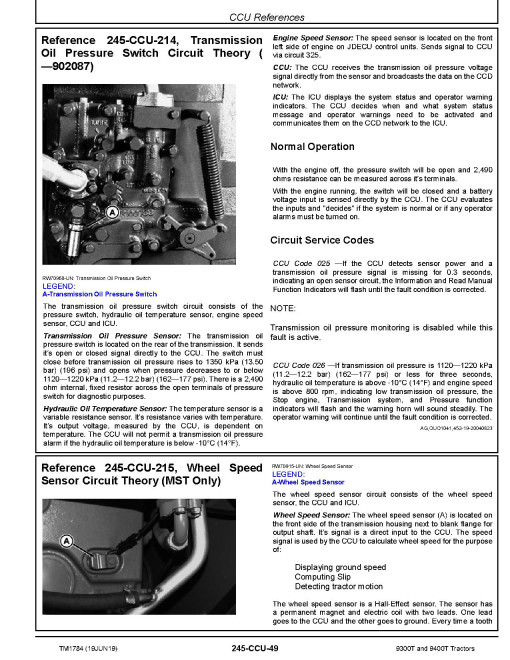

      CCU References
      ECU References
      HCU References
      ICU References
      Implement Management System (IMS) References
      SCU References
      SCo References
      SSU References
      SUP References
   AG Management Solutions (AMS)-Greenstar
      Greenstar System (GSS) References
   AG MANAGEMENT SOLUTIONS (AMS) - JDLINK
      10A
      10B
      10C
      15A
   AG MANAGEMENT SOLUTIONS (AMS) - AUTOTRAK
      How to Use This Diagnostic Information
      Accessing Diagnostic Addresses and Codes
      Diagnostic Trouble Codes
      AutoTrac Identification
      AutoTrac Diagnostics - 9000 Series Field Installed
      GREENSTAR Parallel Tracking Identification
      Parallel Tracking Diagnostics - 9000 Series Field Installed
      GREENSTAR Display Diagnostics
      GREENSTAR Mobile Processor Diagnostics
      STARFIRE Receiver Diagnostics
      GREENSTAR KeyCard Diagnostics
      AutoTrac CAN Bus Identification
      AutoTrac CAN Bus Diagnostics - 9000 Field Installed
      AutoTrac CCD Bus Identification
      AutoTrac CCD Bus Diagnostics - 9000 Series Field Installed
      AutoTrac Power Identification
      AutoTrac Power Diagnostics - 9000 Series Field Installed
      AutoTrac Status Identification
      AutoTrac Status Diagnostics - 9000 Series Field Installed
      AutoTrac Steering Response Identification
      AutoTrac Steering Response Diag. - 9000 Series Field Installed
      AutoTrac Steering Control Unit Identification
      Steering Control Unit Diag - 9000 Series Field Installed
      GREENSTARGREENSTAR is a trademark of Deere & Company GPS STARFIRESTARFIRE is a trademark of Deere & Company Receiver w/TCM
      STARFIRESTARFIRE is a trademark of Deere & Company Receiver and TCM with RTK Correctional Signal Diagnosis
      Circuit Code Listing
      Connector Information
   AG MANAGEMENT SOLUTIONS (AMS) - FIELD DOC
      15A - GREEENSTAR FIELDDOC Type A Diagnostics
      15B - GREENSTAR GPS Receiver Identification
      15C - GREENSTAR GPS Receiver - L-Band Diagnostics
   MANUAL SHIFT TRANSMISSION
      Preliminary Checks
      Operational Checks
      Tests and Adjustments

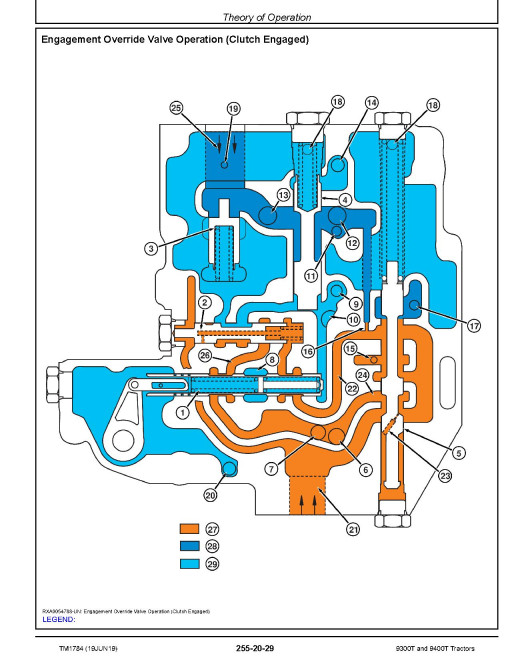

      Theory of Operation
      Schematics and Diagrams
   DRIVE SYSTEMS
      Operational Checks
      Tests and Adjustments
      Theory of Operation
      Schematics and Diagrams
   STEERING AND BRAKES
      Operational Checks
      Tests and Adjustments

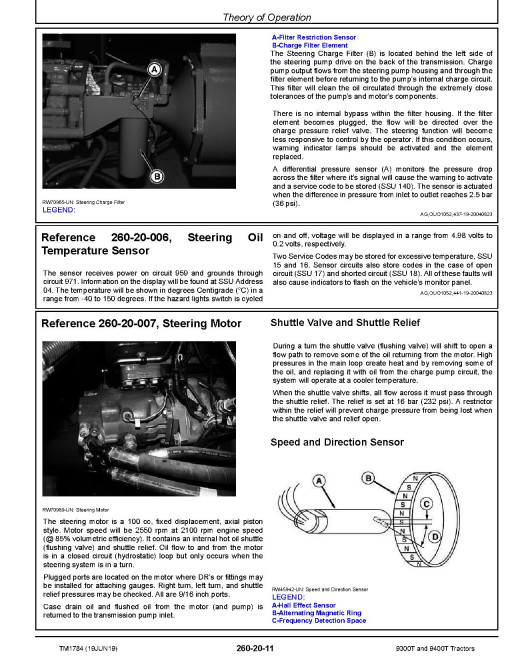

      Theory of Operation
      Schematics and Diagrams
   HYDRAULICS
      Operational Checks
      Tests and Adjustments
      Theory of Operation
      Schematics and Diagrams
   OPERATOR STATION
      Preliminary Checks
      Operational Checks
      Tests and Adjustments
      Theory of Operation
      Schematics and Diagrams
   TOOLS
      Fabricated Tools
      Test Kits
      Section 246A
      Section 246B
      Section 246C
      Section 246D
