Linde BMV135, BMV186, BMV186 HF and BMV260 Hydrostatic Motors Technical Manual (TM2225)

Illustrated factory Technical Manual for Linde Hydrostatic Motors Models BMV135, BMV186, BMV186 HF and BMV260.

This manual will assist you in diagnosing, and repairing for your crawler dozer or hydrostatic motor.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   BMV135
   BMV186
   BMV186 HF
   BMV260

Format: PDF, 56 pages
Language: English
Table of Contents:
   Execution
      Variable displacement motor BMV 50T
      Variable displacement motor BMV 75T and regulated motor BMR 75T
      Variable displacement motor BMV 105T and regulated motor BMR 105T
      Variable displacement motor BMV 140T and BMV 186T
      Variable displacement motor BMV..T, steplessly variable
   Control
   Complete view
      Variable displacement motor BMV..T
      Regulated motor BMR..T
      Variable displacement motor BMV..T, steplessly variable
   Inspection
      Examination of valve plate and cylinder barrel
   Assembly
      Valve plate and cylinder barrel
   Circuit-housing-purging
      Shuttle valve
      Purge valve
   Correct assembly
   Drive shaft
      Dismantling
      Measurement

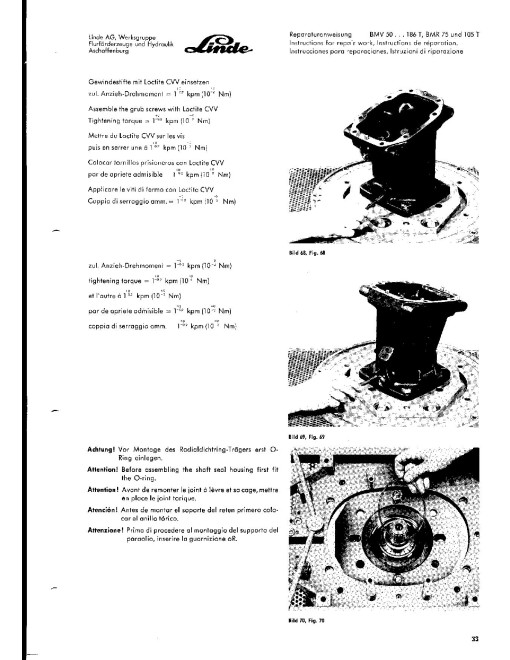

      Re-assembly
   Displacement controller
      Dismantle the piston
      Motor size 75 up to 186
      Motor size 50
      Control and regulator pistons (motor size 105)
      Limiting the minimum tilt angle
      Adjust in top cover
      Adjust in bottom cover
      Adjust in motor housing
   Regulator block for regulated motor
      Version with two purge valves
      Exploded view
      Sectional arrangement with circuit diagram
      Dismantling
      Version with one purge valve
      Exploded view

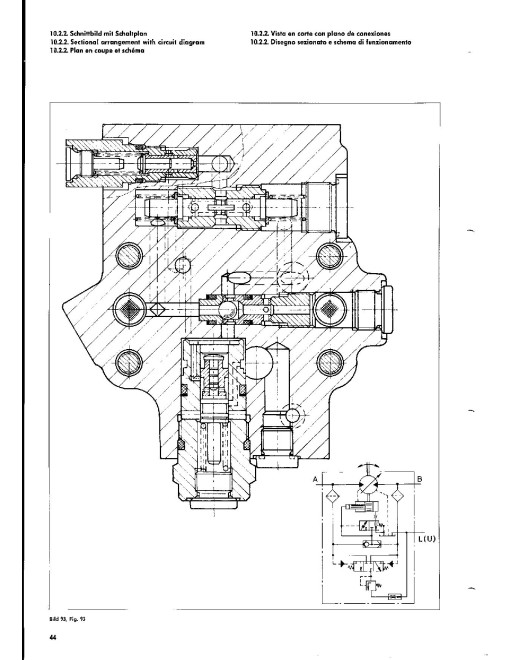

      Sectional arrangement with circuit diagram
      Dismantling
   Tables
      Prestressing and tightening torque for rigid shaft screws
