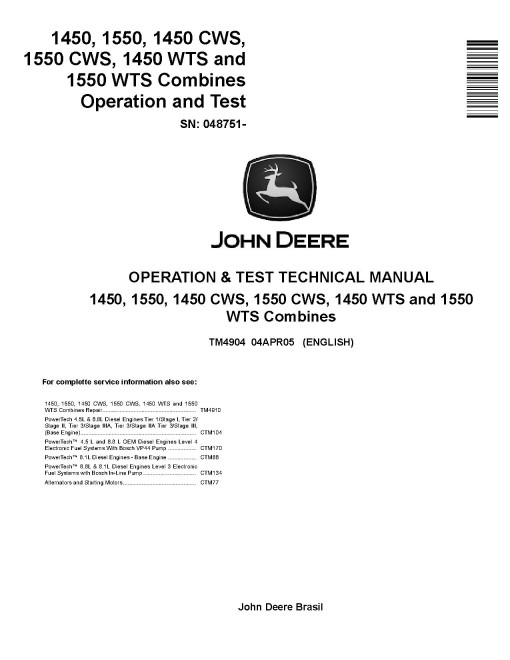

John Deere 1450, 1450 CWS, 1450 WTS, 1550, 1550 CWS and 1550 WTS Combines (SN. from 048751) Operation and Test Manual (TM4904)

Illustrated factory Operation and Test Manual for John Deere Combines Models 1450, 1450 CWS, 1450 WTS, 1550, 1550 CWS and 1550 WTS.

This manual will assist you in diagnosing, and troubleshooting for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1450 (SN: 048751-)
   1450 CWS (SN: 048751-)
   1450 WTS (SN: 048751-)
   1550 (SN: 048751-)
   1550 CWS (SN: 048751-)
   1550 WTS (SN: 048751-)

Format: PDF, 500 pages
Language: English
Publication Date: 04 Apr 2005
Table of Contents:
   Introduction
      Foreword
      References in this manual
   Safety
      Safety Information
   Diagnostics
      AHC-Automatic Head Control
   Electrical System
      General Information
      Electrical System Schematics
      Power Feed / Starter Motor
      Engine Shut Off-1550
      Engine Shut Off-1450
      Electronic Motor - Focus Level 4-CWS/WTS
      Fuse Tester
      Instruments
      Straw Distributor Adjustment-CWS/WTS
      Lighting, Windshield Washer
      Radio, PY - PX
      Alarm Module No. 1 / Shut Off Function
      Warning Module No. 2
      Cigarette Lighter
      Light Function
      Intermittent Light Function
      Intermittent Indicator Lights
      Air Conditioning System
      Outside Mirror Adjustment -CWS/WTS (option)
      Work Lights
      Straw Warning Device
      Brake Lights, Reel Speed Adjustment
      Engaging Threshing / Unloading Auger
      Head / Reverser Engage
      INFO-TRAK Monitor/ Drive Shaft Speed Monitor
      Harvest Performance Monitor
      Threshing Cylinder, Concave and Fan Adjustment
      Head Control Circuit Board
      Unloading Auger Swing
      Four Wheel Drive-1450/1550 (option)
      Area counter-CWS/WTS
      Gearshift Lock-CWS/WTS
      Reverse Travel Alarm / Cleaning Shoe Lights

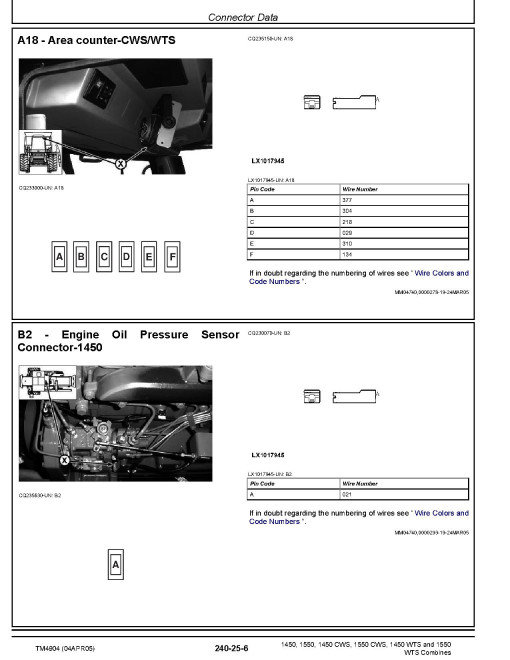

      Head Calibration Procedures
      Wire Harnesses

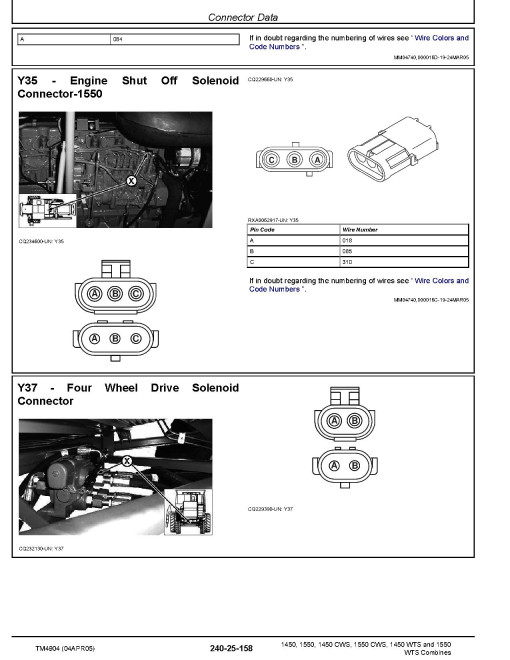

      Connector Data
   Power Train
      Specification
      Checking Parts for Wear
      Testing the Hydrostatic System
      Transmission
   Four Wheel Drive
      Two Speed Four Wheel Drive
   Brakes, Steering and Rear Axle
      Brake System
      Drum Brakes
      Steering System
   Hydraulic System
      General Information
      Hydraulic Schematic
      Reel Hydraulic Motor
      Hydraulic Pump Drive

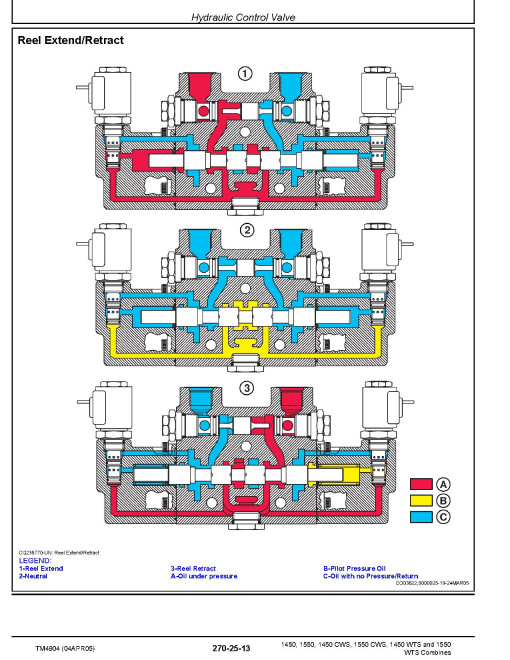

      Hydraulic Control Valve
      Hydraulic System Troubleshooting
   Cab
      Cab and Operator`s Seat
      Air Conditioning and Heating
      Ventilation and Heating - Troubleshooting
      Operational Tests and Troubleshooting
      Air Conditioning System Operation
