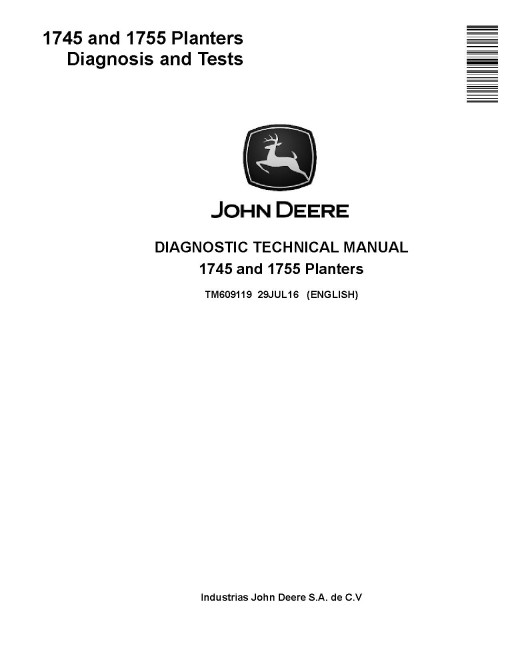

John Deere 1745 and 1755 Planters Diagnostic Manual (TM609119)

Illustrated factory Diagnostic Manual for John Deere Planters Models 1745 and 1755.

This manual will assist you in diagnosing for your planter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1745
   1755

Format: PDF, 668 pages
Language: English
Publication Date: 29 Jul 2016
Table of Contents:
   Introduction
      Foreword
   General Information
      How to Use This Manual
      Safety
      Recommended Tools for Diagnostics
      Basic Diagnostics
      Diagnostic Information for Electrical Components
      Diagnostic Information for Hydraulic Components
      References for Technical Information
      Specifications
      Field Testing
   Diagnostic Trouble Codes
      PM1 Diagnostic Trouble Codes
      PM2 Diagnostic Trouble Codes
   Observable Symptom and System Diagnostics
      Electrical
      Hydraulic
   Electrical
      General Information
      Calibration Procedure
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Electronic Control Units
      General Information
      Programming Electronic Control Units
      SeedStar Main Control Unit - PM1 Diagnostic Addresses
      SeedStar XP Meter Master Control Unit - PM2 Diagnostic Addresses

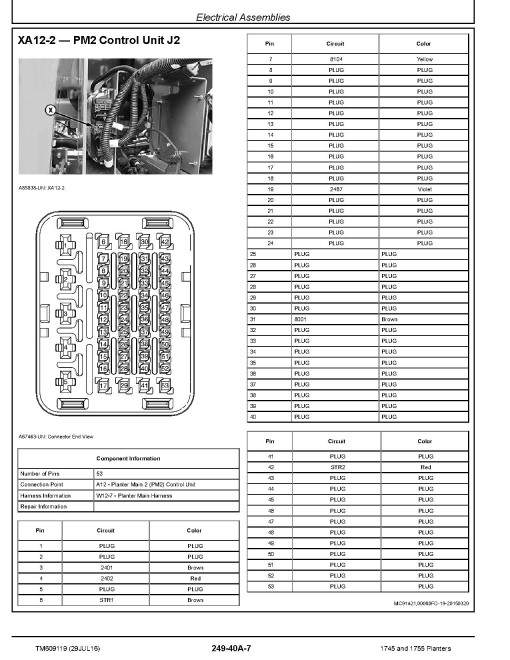

   Electrical Component Information
      Electrical Assemblies
      Sensors

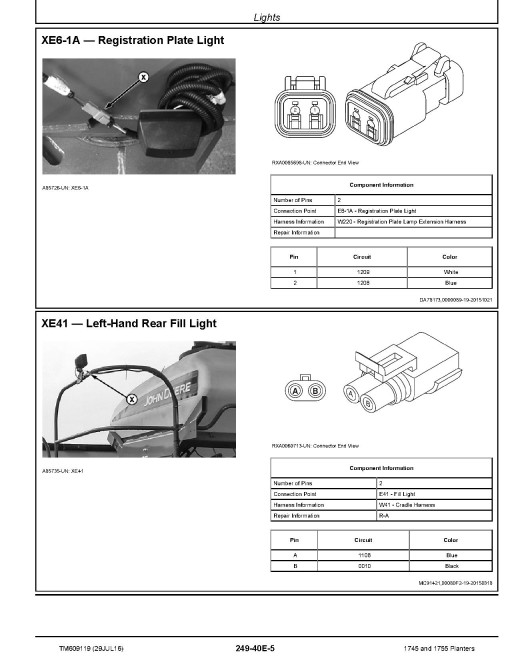

      Lights
      Fuses
      Charging
      Relays
      Motors
      Resistors
      Switches
      Interconnects and Ground Points
      Electronically Actuated Mechanical Devices
      Harness
   Hydraulics
      General Information
      Calibration Procedure
      Theory of Operation
      Schematic
      Diagnostic Tests and Adjustments
   Hydraulic Component Information
      Cylinder
      Check Valve
      Valve Block, Assembly, or Gearcase
      Cooler
      Motor
      Orifice
      Reservoir or Tank
      Valve
      Diagnostic Receptacle or Coupler
      Solenoid Valve
   Pneumatic Downforce Air Diagnostics
      Calibration Procedure
      Theory of Operation
      Schematic
      Diagnostic
   Pneumatic Downforce Air Component Information
      Accumulators
      Sensors
      Check Valves
      Filters
      Assembly Groups
      Motors
      Pumps
      Reservoirs
      Switches
      Valves
      Couplers or Diagnostics Receptacles
      Solenoid Valves
