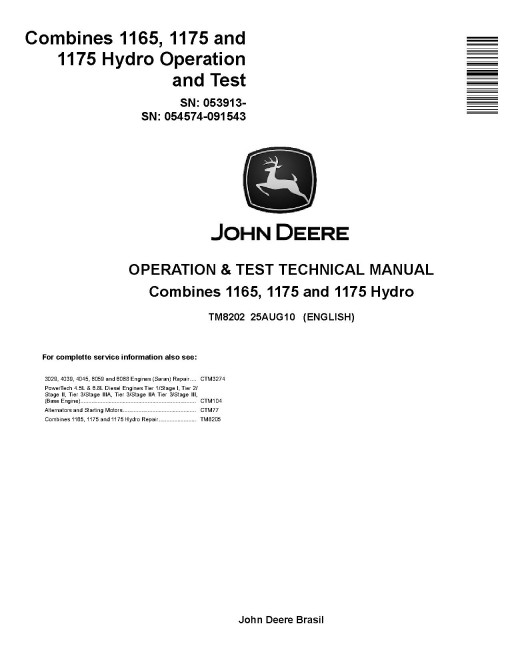

John Deere 1165, 1175 (SN. before 053913) and 1175 Hydro (SN: 054574-091543) Combines Operation and Test Manual (TM8202)

Illustrated factory Operation and Test Manual for John Deere Combines Models 1165, 1175 and 1175 Hydro.

This manual will assist you in diagnosing, and troubleshooting for your combine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1165 (SN: 053913-)
   1175 (SN: 053913-)
   1175 Hydro (SN: 054574-091543)

Format: PDF, 331 pages
Language: English
Publication Date: 25 Aug 2010
Table of Contents:
   Introduction
      Foreword
      References in this manual
   Safety
      Safety Information
   Engine System
      General Information
      Test and Adjustment Procedures
      Engine Diagnostics

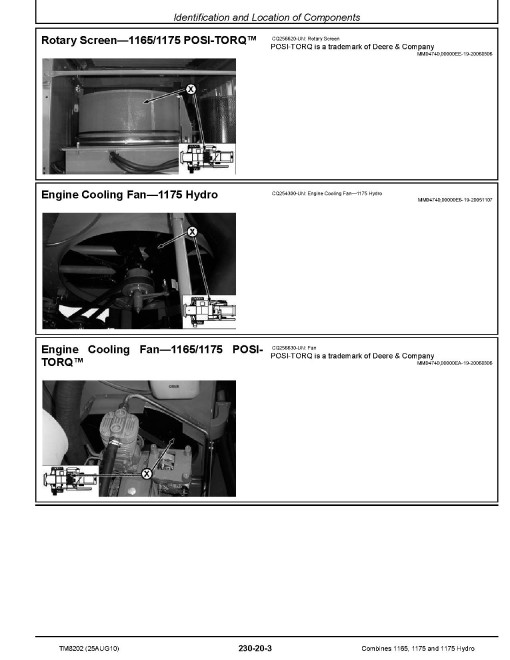

      Identification and Location of Components
   Cooling and Air Intake Systems
      General Information
      Test and Adjustment Procedures
      Air Intake System Diagnosis
      Engine Cooling System Diagnosis
      Identification and Location of Components
   Electrical System
      How To Use Diagnostic Information
      Electrical System Schematics
      Instrument Panel
      Fuse Box Diagnosis
      Headlights Diagnosis
      Engine Air Filter Sensor Diagnosis
      Hydraulic Oil Filter Sensor Diagnosis
      Grain Tank Filling Level Sensor Diagnosis
      Hourmeter Diagnosis
      Fuel Level Gauge Diagnosis
      Brake Light Diagnosis
      Multi-Tachometer Diagnosis
      Engine Start-Up Diagnosis
      Engine Oil Pressure Sensor Diagnosis
      Battery Recharging System Diagnosis
      Clearance Lights Diagnosis
      Hydrostatic Oil Temperature Indicator Light Diagnosis
      Coolant Temperature Indicator Light Diagnosis
      Hazard Warning Lights Diagnosis
      Straw Chopper and Straw Walker Plugging Alarm Diagnosis
      Work Lights Diagnosis
      Unloading Auger Lighting System Diagnosis
      Grain Tank Lighting System Diagnosis
      Active Header Control (AHC) Diagnosis - 1175 Hydro
      Header Lateral Tilt Diagnosis-1175
      Automatic Height Control Diagnosis
      Air Conditioning System Diagnosis
      Left-Hand and Right-Hand Clearance Light and Cab Interior Lighting Diagnosis
      Windshield Wiper Motor Diagnosis
      Connector Data
   Power Train

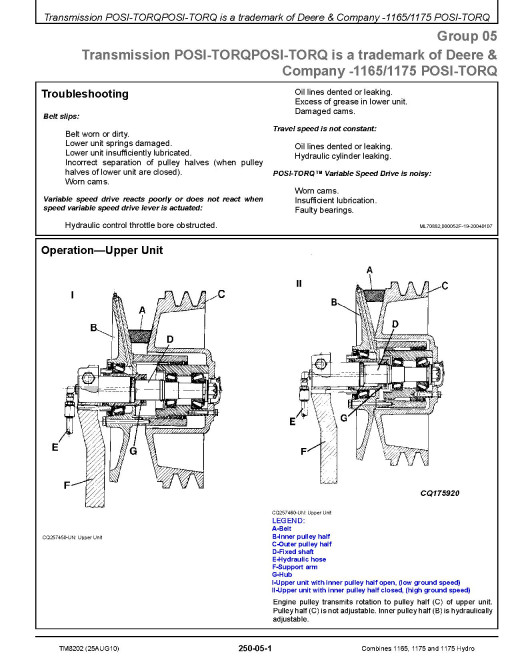

      Transmission POSI-TORQPOSI-TORQ is a trademark of Deere & Company -1165/1175 POSI-TORQ
      Transmission-1175 Hydro
      Clutch-1165/1175 POSI-TORQPOSI-TORQ is a trademark of Deere & Company
      Transmission-1165/1175POSI-TORQPOSI-TORQ is a trademark of Deere & Company
      Hydrostatic Drive-1175 Hydro
      Checking Parts for Wear-1175 Hydro
      Hydrostatic System Test-1175 Hydro
   Brakes, Steering and Rear Axle
      Operation of Brakes
      Drum Brakes
      Steering System
   Hydraulic System
      General Information
      Hydraulic Valve Block
      Diagrams and Schematics
      Hydraulic Pump Drive

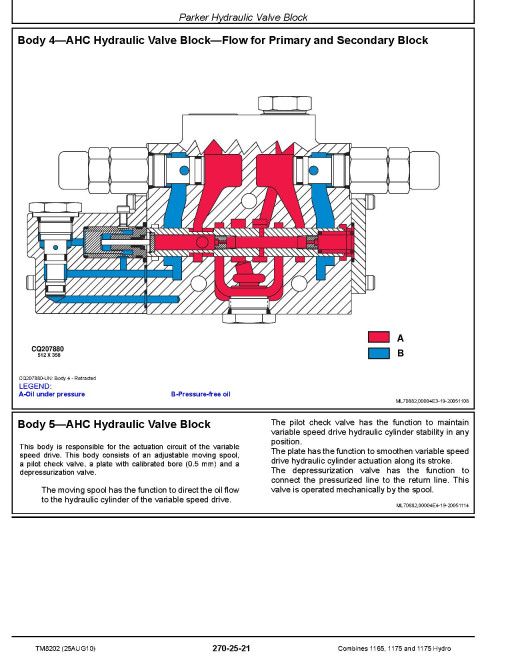

      Parker Hydraulic Valve Block
      Reel Hydraulic Motor
      Hydraulic System Troubleshooting
   Cab
      Operation of Air Conditioning
      Operational Tests
      Air Conditioning System Troubleshooting
      Ventilation System Troubleshooting
