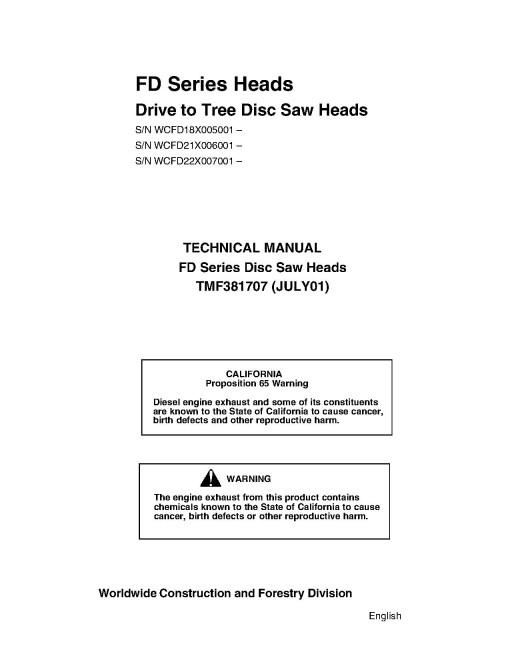

Waratah FD18, FD21 and FD22 Felling Heads Technical Manual (TMF381707)

Illustrated factory Technical Manual for Waratah Felling Heads Models FD18, FD21 and FD22.

This manual will assist you in diagnosing, and repairing for your log loader or felling head.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FD18 (SN: WCFD18X0050001-)
   FD21 (SN: WCFD21X0060001-)
   FD22 (SN: WCFD22X0070001-)

Format: PDF, 270 pages
Language: English
Publication Date: 01 Jul 2001
Table of Contents:
   Introduction
      General
      Models Covered Bv This Manual

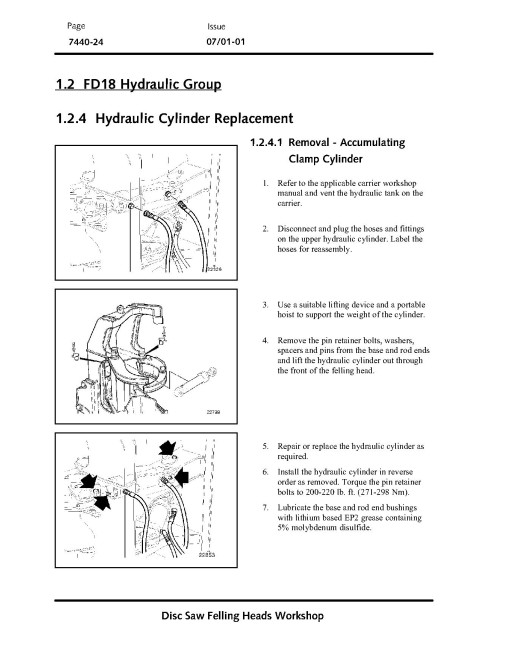

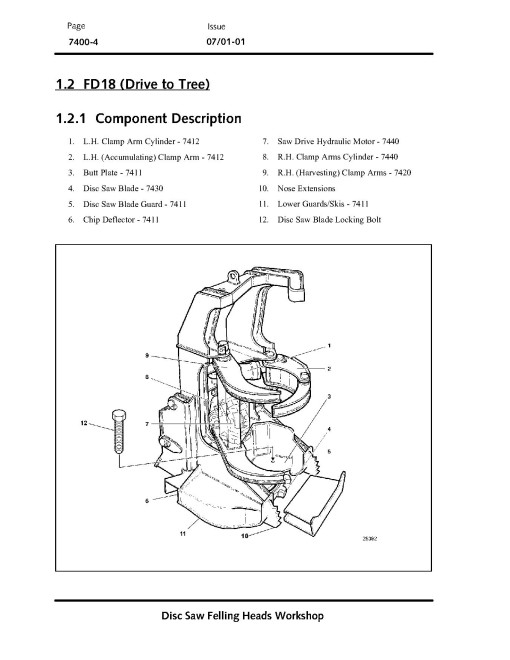

   FD18 (Drive to Tree)
      Comoonent Description
      General Dimensions
      General Specifications

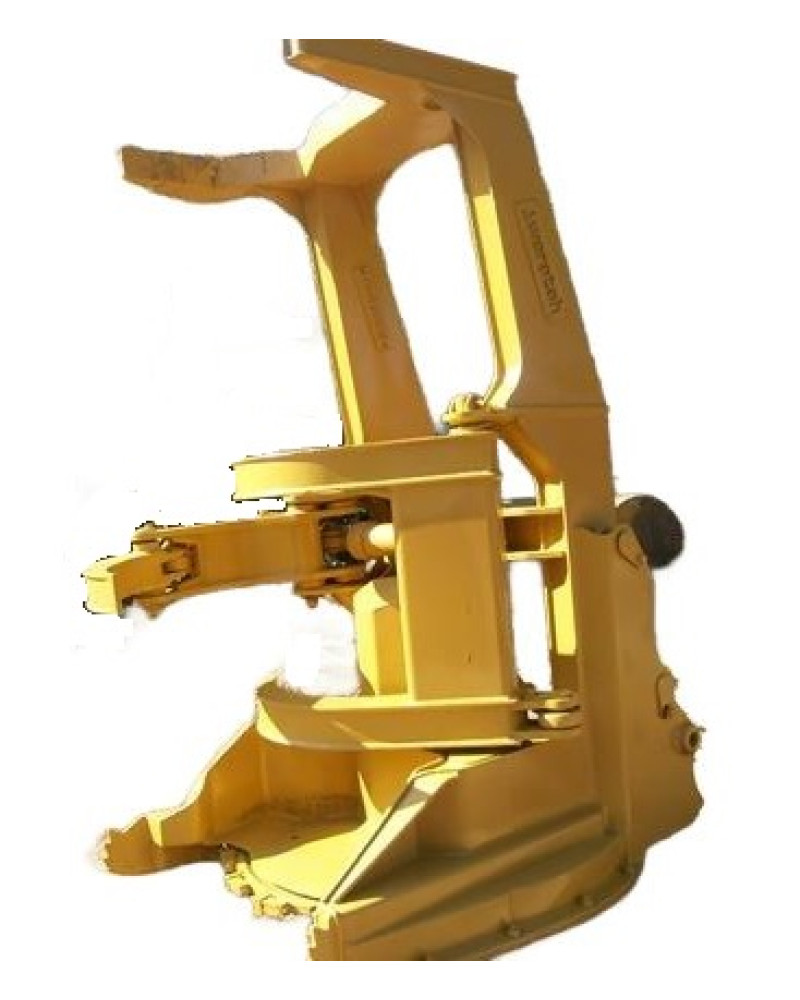

   FD21 (Drive to Tree)
      Comoonent Description
      General Dimensions
      General Specifications

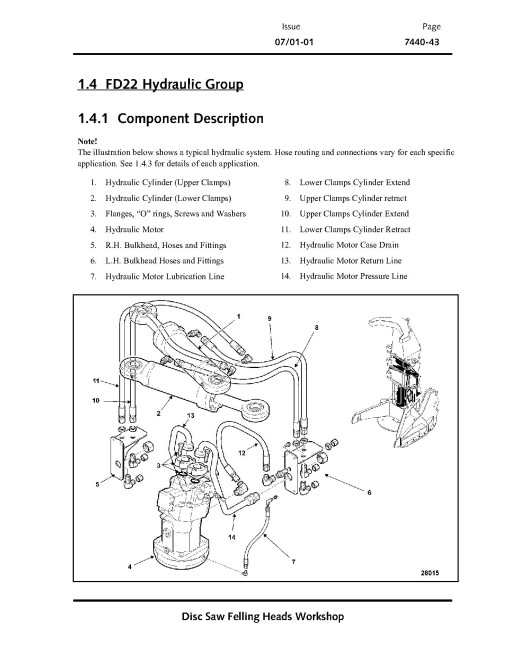

   FD22 (Drive to Tree)
      Component Description
      General Dimensions
      General Specifications
   Torque Values
      Steel Fasteners
      Hvdraulic Fittings
   Application of Adhesives
      Through Hole (Bolts & Nuts)
      Blind Holes (Cap Screws, etc.)
      Pre-Assembled Fasteners
      Hvdraulic Fittings
   Tool Lists
      Service Shop
      Service Truck
      Felling Head Service Tools
