Yanmar 3TNV82A, 3TNV84, 3TNV88, 4TNV106, 4TNV84, 4TNV88, 4TNV94L, 4TNV98 Diesel Engines Troubleshooting Manual (0DTNV-G00600)

Illustrated factory Troubleshooting Manual for Yanmar Diesel Engines Models 3TNV82A, 3TNV82A-B, 3TNV84, 3TNV84T, 3TNV84T-B, 3TNV88, 3TNV88-B, 3TNV88-U, 4TNV106, 4TNV106T, 4TNV84, 4TNV84T, 4TNV84T-Z, 4TNV88, 4TNV88-B, 4TNV88-U, 4TNV94L, 4TNV98, 4TNV98-E, 4TNV98-Z, 4TNV98T and 4TNV98T-Z.

This manual will assist you in troubleshooting for your diesel engine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   3TNV82A, 3TNV82A-B
   3TNV84, 3TNV84T, 3TNV84T-B
   3TNV88, 3TNV88-B, 3TNV88-U
   4TNV106, 4TNV106T
   4TNV84, 4TNV84T, 4TNV84T-Z
   4TNV88, 4TNV88-B, 4TNV88-U
   4TNV94L
   4TNV98, 4TNV98-E, 4TNV98-Z, 4TNV98T, 4TNV98T-Z
Format: PDF, 222 pages
Language: English
Publication Date: 01 Jan 2005
Table of Contents:

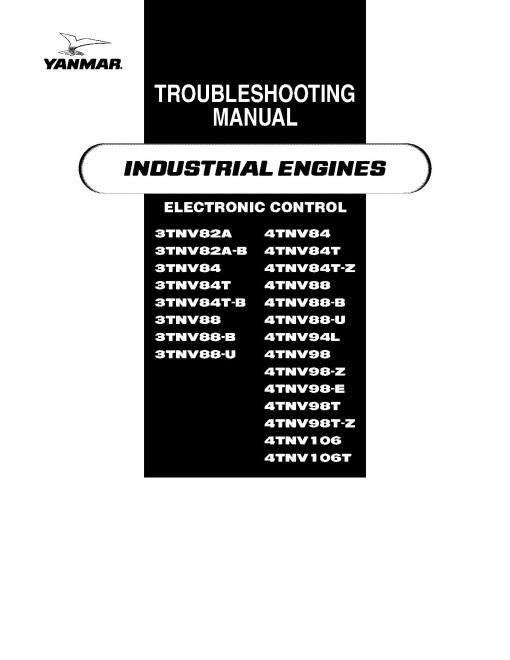

   Cover
   Failure Diagnosis

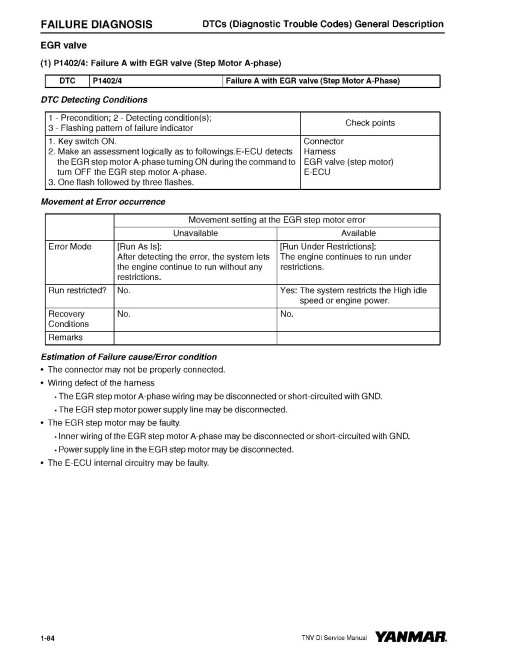

   DTCs (Diagnostic Trouble Codes) General Description
      DTC Code List
      Description Items
      Analog Input Related Failures
      Pulse Sensor Related Failures
      Contact Output Related Failures
      Contact Input Related Failures
      Actuators etc.
   Method and Procedure of Failure Diagnosis
      Description Items
      Analog Input Related Failures
      Pulse Sensor Related Failures
      Contact Output Related Failures
      Contact Input Related Failures
      Actuator Related Failures
      ECU Internal and Communication Errors
      FAILURE INDICATOR LAMP FLASHING PATTERN
   Using the Failure Indicator for Failure Diagnosis
      Flashing Patterns of the Failure Indicator
   Factor Analysis
      2G-Type Eco-Governor Speed-Fluctuation Factor Analysis
   Back Cover
