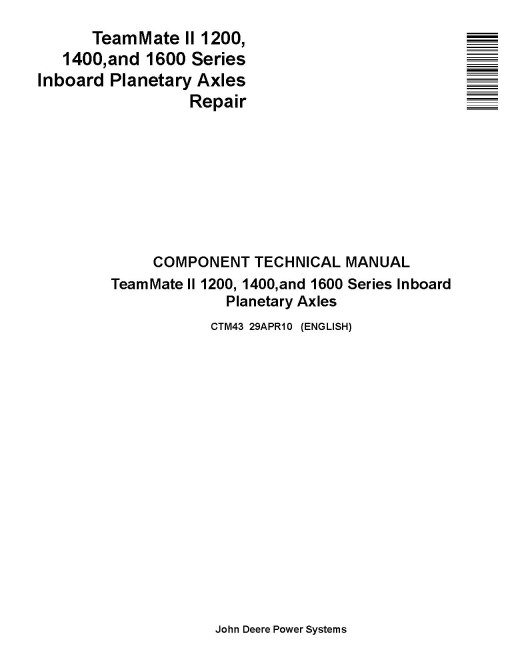

Funk TeamMate II 1200, 1400 and 1600 Series Inboard Panetary Axles Component Technical Manual (CTM43)

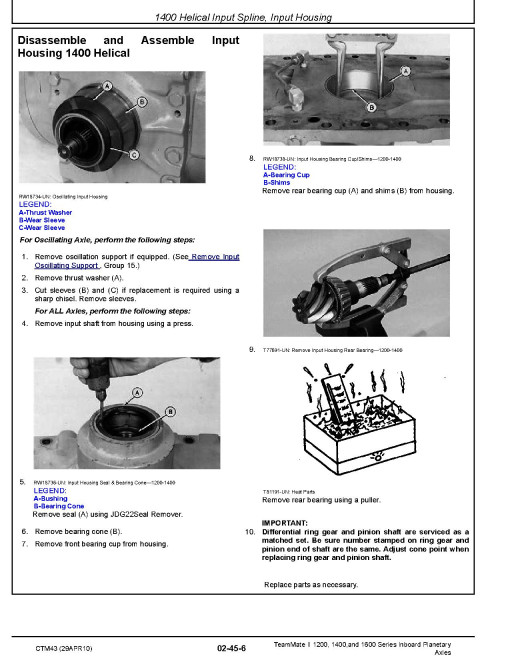

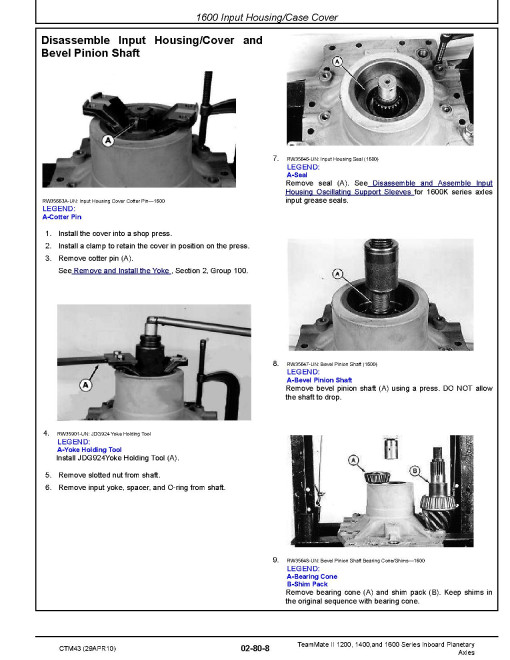

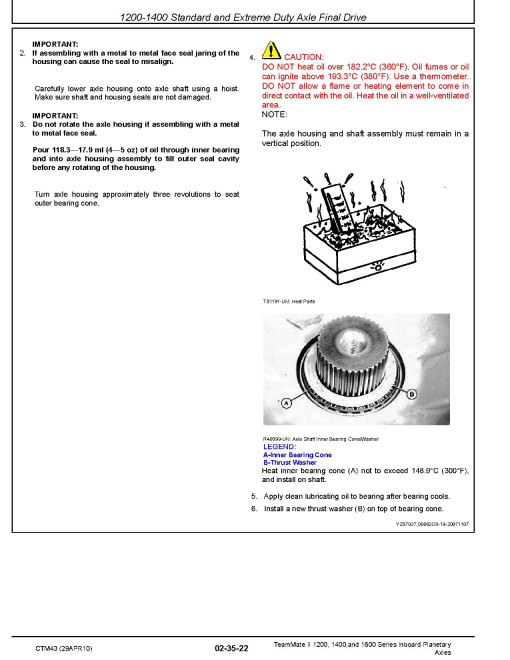

Illustrated factory Component Technical Manual for Funk TeamMate II Inboard Panetary Axles Models 1200 Series, 1400 Series and 1600 Series.

This manual will assist you in diagnosing, assembling, disassembling, and repairing for your inboard panetary axle.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   TeamMate II 1200 Series
   TeamMate II 1400 Series
   TeamMate II 1600 Series

Format: PDF, 342 pages
Language: English
Publication Date: 29 Apr 2010
Table of Contents:
   Introduction
      Foreword
      Notice to the Dealer
   General Information
      Safety
      General
   Repair and Adjustments
      1200-1400 Oscillation Supports
      1200-1400 Non-Helical Input Spline Axle Input Housing
      1200-1400 Differential Housings
      1200-1400 Standard and Extreme Duty Axle Final Drive
      1200-1400 Single Disk Brakes
      1400 Helical Input Spline, Input Housing
      1400 John Deere Grader Differential Housing
      1400 John Deere Grader Planetary Carrier
      1400 John Deere Extreme Duty Planetary Carrier
      1400 Super Wide Extreme Duty Axle Housing, Shaft, and Final Drive
      1400 Multiple Disk Brakes
      1600 Oscillation Supports
      1600 Input Housing/Case Cover
      1600 Differential Housing
      1600 Final Drive/Planetary Carrier
      1600 Single Disk Brakes
      1600-K Series Axle
      Operational Checks
      Disconnect and Input Housing/Case Cover
      Differential and Axle Assembly Tests
      Parking Brake
      Dry Drum Brake
      Brake Inspection, Adjustments, Tests, and Bleeding
      Axle Assembly End Play
      Troubleshooting
   Theory of Operation
      Theory of Operation
   Dealer Fabricated Tools
      Dealer Fabricated Tools
