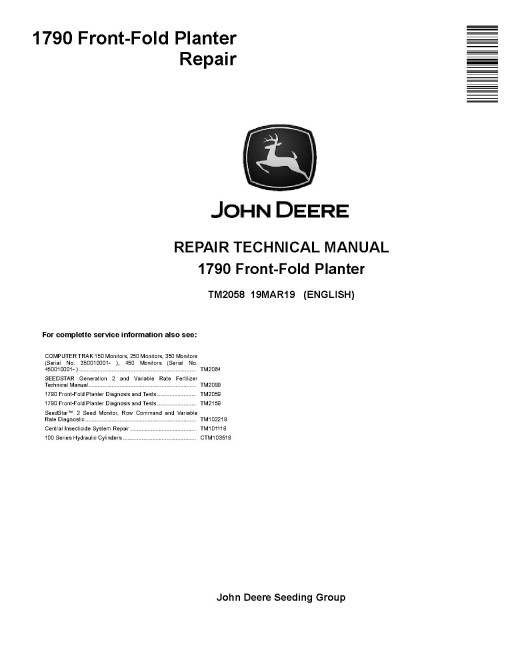

John Deere 1790 Front-Fold Planters Repair Manual (TM2058)

Illustrated factory Repair Manual for John Deere Front-Fold Planters Models 1790.

This manual will assist you in assembling, disassembling, and repairing for your planter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1790

Format: PDF, 501 pages
Language: English
Publication Date: 19 Mar 2019
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      Lubricants
      General Information
   Vacuum System
      Vacuum System
   Central Commodity System

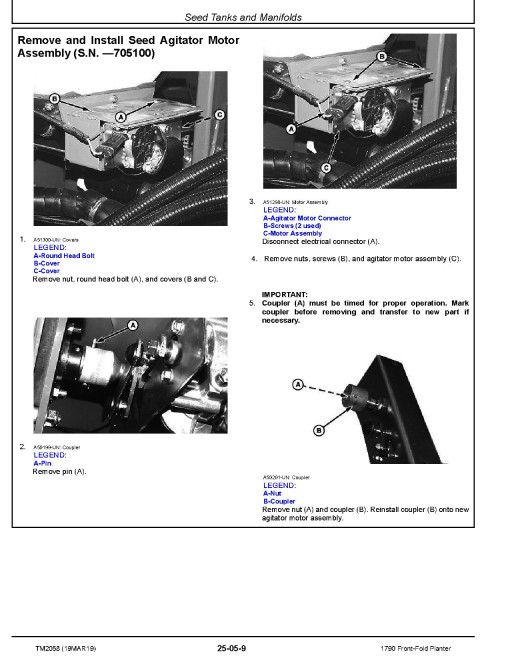

      Seed Tanks and Manifolds
      Seed Delivery Hose
      Central Commodity System Fan
   Planting Units
      Row Units
      PRO-SERIES/PRO-SERIES XP Vacuum Seed Metering Mechanisms
      PRO-SERIES/PRO-SERIES XP Plateless Seed Meter Mechanisms
      Seed Openers
      Closing Wheels
      Row Tillage
      Mechanical Row Unit Down Force
      Pneumatic Row Unit Down Force
   Hitch, Frame and Rockshafts
      Hitch Pads
      Rockshafts

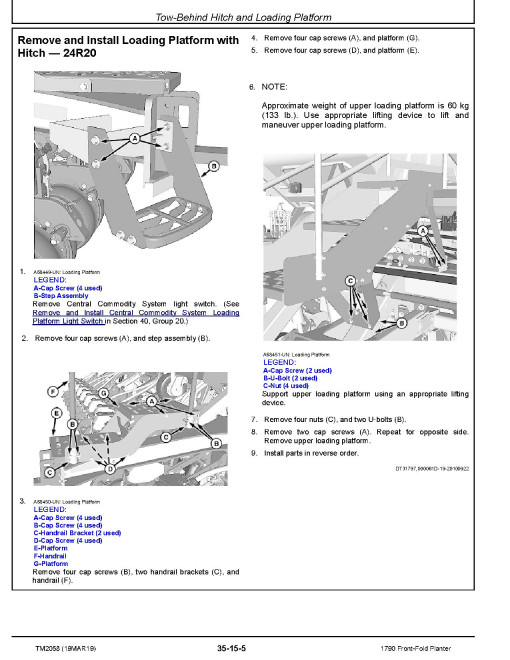

      Tow-Behind Hitch and Loading Platform
      Welding Repair
      Wheel Module Repair
      Row Markers
   Electrical
      Connector Repair
      Frame Control Box

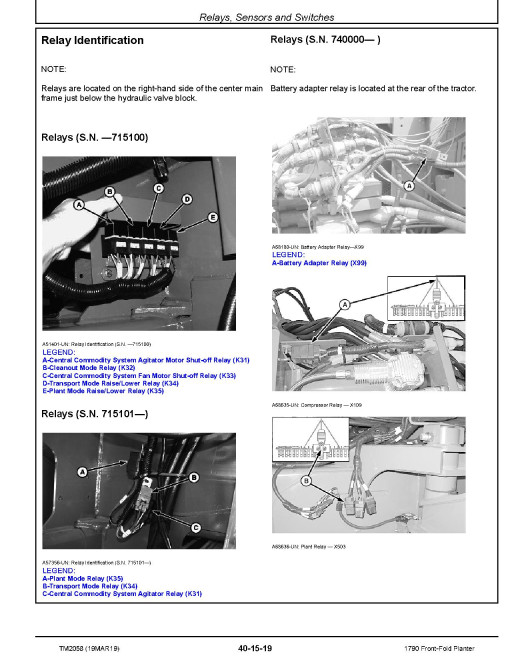

      Relays, Sensors and Switches
      Lighting Repair
   Drives
      Specifications
      Drive Wheels
      Half-Width Disconnect
      Seed Drive Transmission (S.N. -705100)
      Seed Drive Transmission (S.N. 705101- )
      Variable Rate Drive
      Drillshafts
   Fertilizer and Pesticide Systems
      Liquid Fertilizer System
      Variable Rate Fertilizer
      Pesticide System
   Hydraulics
      General Information
      Motors
      Cylinders
      Valve Block
      Valves
      Miscellaneous
   Miscellaneous
      Polyethylene Tank Repair
   Dealer Fabricated Tools
      Dealer Fabricated Tools
