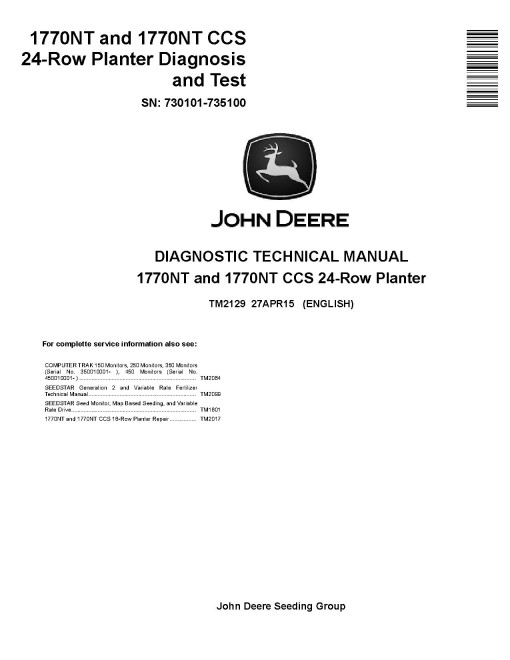

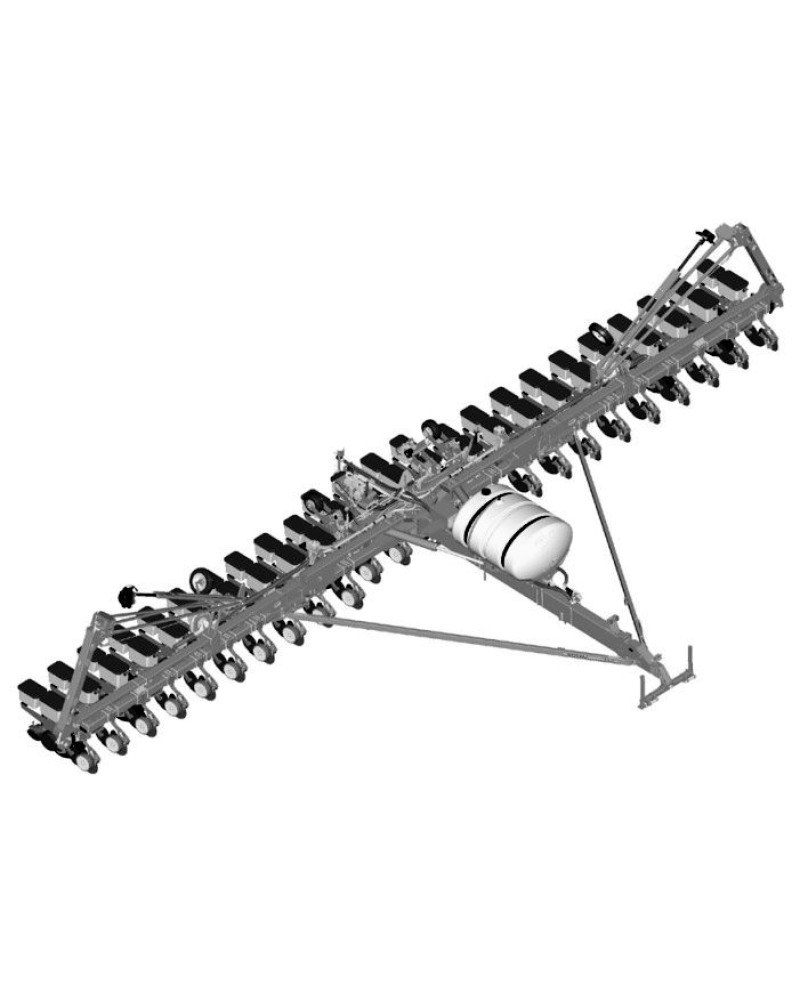

John Deere 1770NT and 1770NT CCS 24-Row Planters (SN: 730101-735100) Diagnostic Manual (TM2129)

Illustrated factory Diagnostic Manual for John Deere Planters Models 1770NT 24-Row and 1770NT CCS 24-Row.

This manual will assist you in diagnosing for your planter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1770NT 24-Row (SN: 730101-735100)
   1770NT CCS 24-Row (SN: 730101-735100)

Format: PDF, 375 pages
Language: English
Publication Date: 27 Apr 2015
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      Lubricants
      General Information
   Observable Symptoms
      Electrical
      Hydraulics
   Electrical System Diagnostics
      How To Use This Diagnostic Information
      Auxiliary Power Diagnostics
      CCS Auxiliary Hydraulics Coupler Seed Delivery Blower Switch Diagnostics Type ID
      CCS Auxiliary Hydraulics Coupler Seed Delivery Blower Switch Diagnostics - Type A
      CCS Auxiliary Hydraulics Coupler Seed Delivery Blower Switch Diagnostics - Type B
      CCS Tank Fill Lights Diagnostics
      CCS Tank Low Warning Diagnostics
      CCS Seed Delivery Agitator Diagnostics Type ID
      CCS Seed Delivery Agitator Diagnostics - Type A
      CCS Seed Delivery Agitator Diagnostics - Type B
      CCS Seed Delivery Blower Diagnostics Type ID
      CCS Seed Delivery Blower Diagnostics - Type A
      CCS Seed Delivery Blower Diagnostics - Type B
      Convenience Outlet Power Extension Diagnostics
      Field Raise-Lower Diagnostics
      Field Raise-Lower Diagnostics with CCS Type ID
      Field Raise-Lower Diagnostics with CCS - Type A
      Field Raise-Lower Diagnostics with CCS - Type B
      Half Width Disconnect - Left Fertilizer Valve Diagnostics
      Half Width Disconnect - Right Fertilizer Valve Diagnostics
      Half Width Disconnect Clutch Engage-Disengage Diagnostics Type Identification
      Half Width Disconnect Diagnostics - Type A
      Half Width Disconnect Diagnostics - Type B
      Half Width Disconnect Diagnostics - Type C
      Lighting Overall Diagnostics
      Machine Fold-Unfold Diagnostics
      Marker Raise-Lower - Auto Mode Diagnostics
      Marker Raise-Lower - Manual Mode Diagnostics
      Marker Winglets Raise-Lower Diagnostics
      Pneumatic Down Force Diagnostics
      Transport and Wing Wheels Raise-Lower Diagnostics
      Transport and Wing Wheels Raise-Lower Diagnostics with CCS Type ID
      Transport and Wing Wheels Raise-Lower Diagnostics with CCS - Type A
      Transport and Wing Wheels Raise-Lower Diagnostics with CCS - Type B

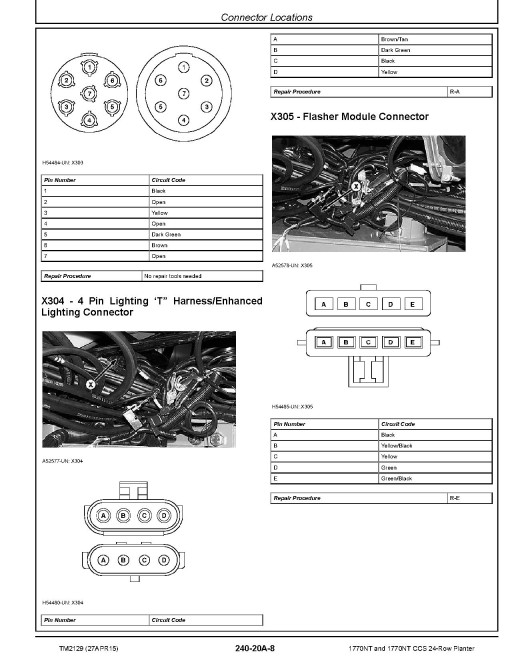

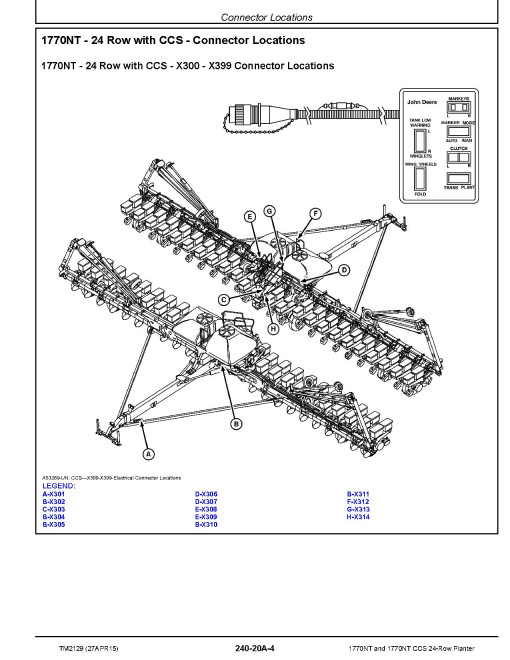

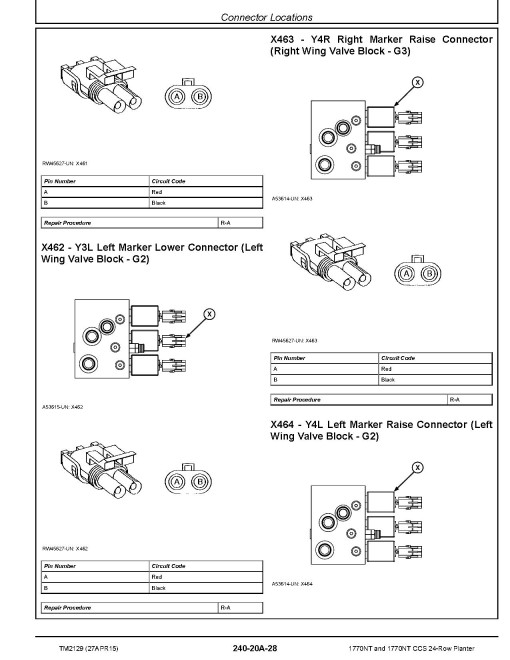

      Connector Locations
   Hydraulic System Diagnostics
      General Information
      CCS Auxiliary Hydraulic Coupler Diagnostics
      CCS Seed Delivery Blower Motor Diagnostics
      Drawbar Hitch/Independent Marker Diagnostics
      Field Raise-Lower Diagnostics
      Hydraulic Power Diagnostics
      Machine Fold-Unfold Diagnostics
      Marker Raise-Lower - Independent SCV Diagnostics
      Marker Winglet Raise-Lower Diagnostics
      Transport Raise - Lower Diagnostics
      Hydraulic Component Locations
