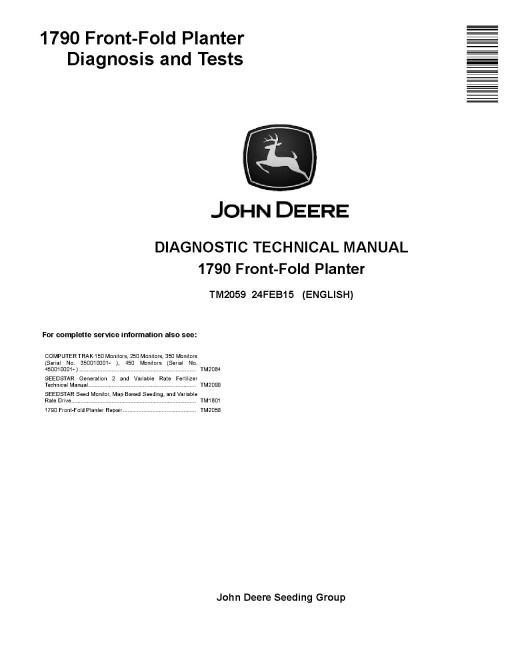

John Deere 1790 Front-Fold Planters (SN. up to 705100) Diagnostic Manual (TM2059)

Illustrated factory Diagnostic Manual for John Deere Front-Fold Planters Models 1790.

This manual will assist you in diagnosing for your planter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1790 (SN: -705100)

Format: PDF, 267 pages
Language: English
Publication Date: 24 Feb 2015
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      Lubricants
      General Information and Specifications
   Observable Symptoms
      Electrical
      Hydraulics
   Electrical System Diagnostics
      How To Use This Diagnostic Information
      Solenoid Sequence Table
      CCS Auxiliary Hydraulics Coupler Seed Delivery Fan Switch Diagnostics
      CCS Auxiliary Power Diagnostics
      CCS Low Tank Warning Diagnostics
      CCS Seed Delivery Agitator Diagnostics
      CCS Seed Delivery Fan Diagnostics
      CCS Tank Fill Lights Diagnostics
      Convenience Outlet Power Extension Diagnostics
      Field Raise/Lower Diagnostics
      Half Width Disconnect - Left Clutch Engage/Disengage Diagnostics
      Half Width Disconnect - Right Clutch Engage/Disengage Diagnostics
      Lighting Overall Diagnostics
      Machine Fold/Unfold Diagnostics
      Marker Raise/Lower - Auto Mode Diagnostics
      Marker Raise/Lower - Manual Mode Diagnostics
      Pneumatic Down Force Diagnostics

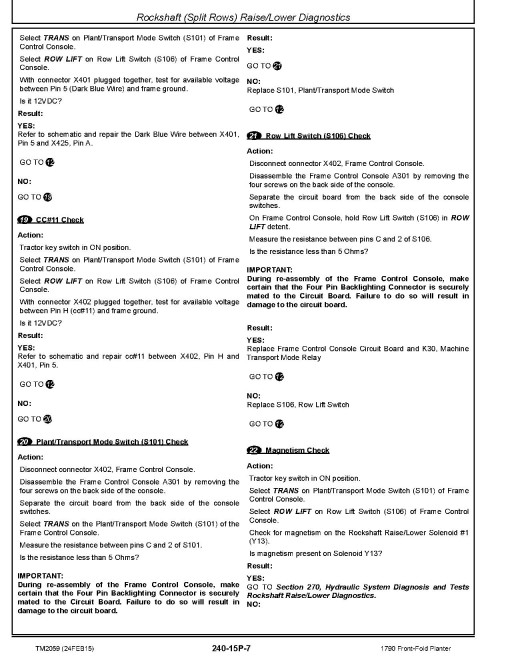

      Rockshaft (Split Rows) Raise/Lower Diagnostics
      Transport and Wing Wheels Raise/Lower Diagnostics

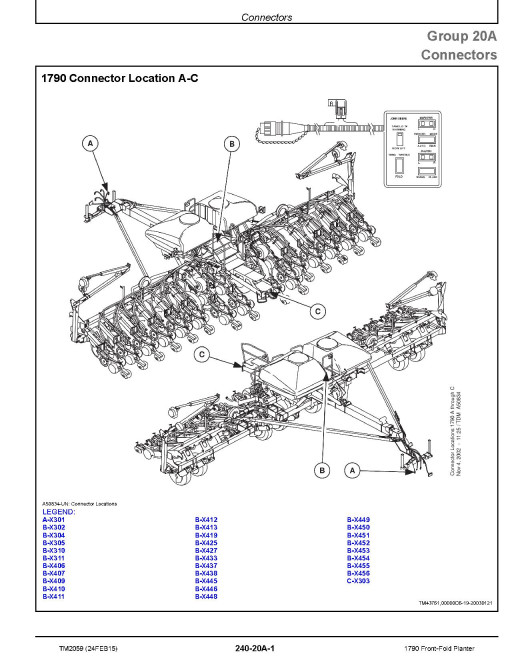

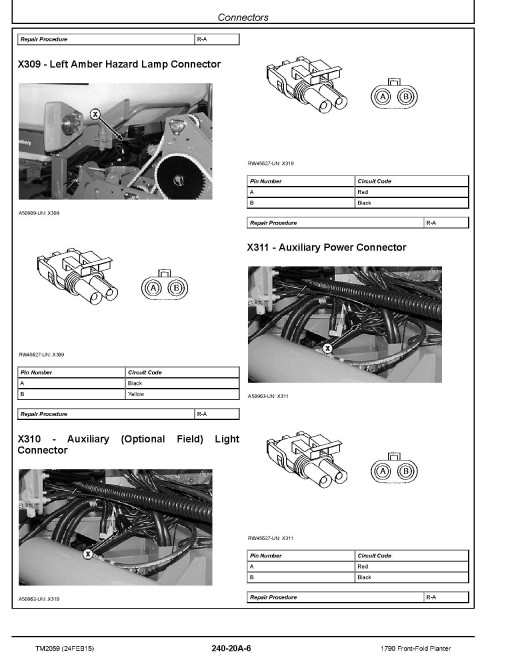

      Connectors
   Hydraulic System Diagnostics
      General Information
      CCS Auxiliary Hydraulic Coupler (Optional) Diagnostics
      CCS Seed Delivery Fan Motor Diagnostics
      Field Raise/Lower Diagnostics
      Hydraulic Power Diagnostics
      Machine Fold/Unfold Diagnostics
      Marker Raise/Lower integrated with Frame Raise/Lower Diagnostics
      Marker Raise/Lower - Stand Alone SCV Diagnostics
      Rockshaft (Split Rows) Raise/Lower Diagnostics
      Transport and Wing Wheels Raise/Lower Diagnostics
      Hydraulic Components
