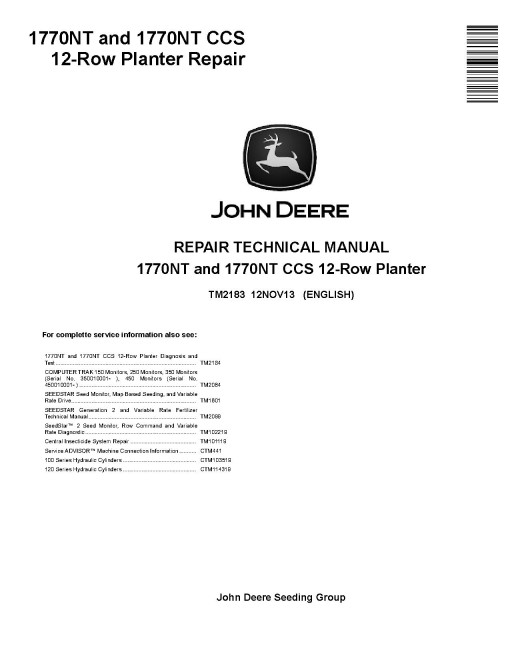

John Deere 1770NT and 1770NT CCS 12-Row Planters (SN. up to 740100) Repair Manual (TM2183)

Illustrated factory Repair Manual for John Deere Planters Models 1770NT 12-Row and 1770NT CCS 12-Row.

This manual will assist you in assembling, disassembling, and repairing for your planter.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   1770NT 12-Row (SN: -740100)
   1770NT CCS 12-Row (SN: -740100)

Format: PDF, 498 pages
Language: English
Publication Date: 12 Nov 2013
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      Lubricants
      General Information
   Vacuum System
      Vacuum System
   Central Commodity System

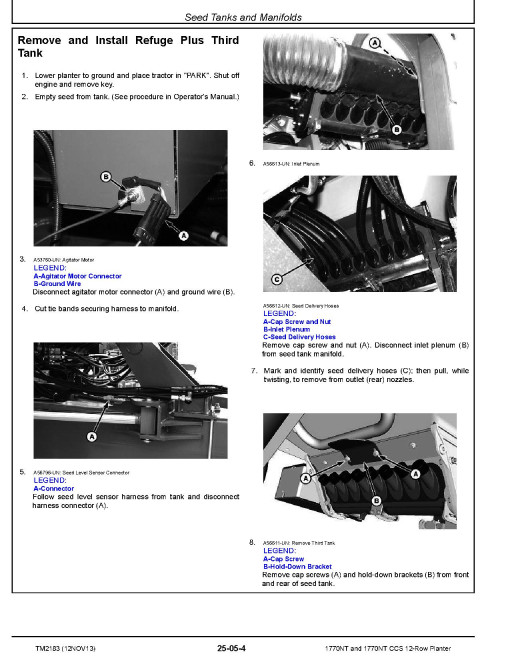

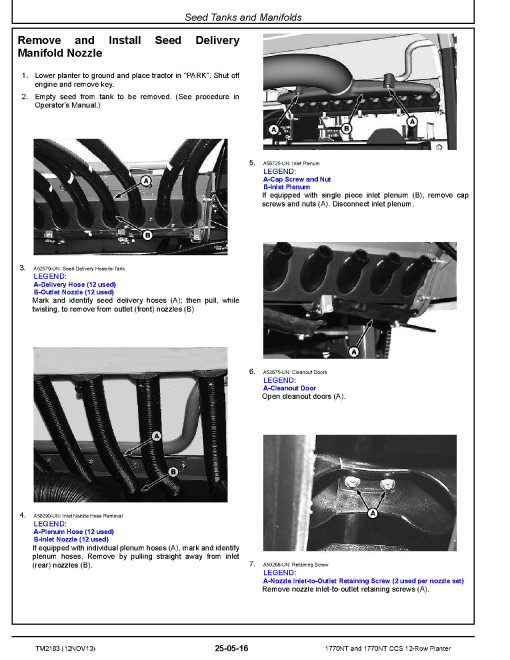

      Seed Tanks and Manifolds
      Seed Delivery Hose
      Central Commodity System Fan
   Planting Units
      MaxEmerge Plus / MaxEmerge XP Vacuum Seed Meters
      MaxEmerge Plus / MaxEmerge XP Plateless Seed Meters
      PRO-SERIES / Pro-Series XP Vacuum Seed Meters
      PRO-SERIES / Pro-Series XP Plateless Seed Meters
      Seed Openers
      Closing Wheels
      Row Tillage
      Insecticide/Herbicide Meter
      Mechanical Row Unit Down Force
      Pneumatic Row Unit Down Force
   Hitch and Frame
      Repair and Welding
      Hitch Pads
      Wheel Module Repair
      Row Marker
      Loading Platform
   Electrical
      Connector Repair
      Frame Control Box
      Relays, Sensors, and Switches
      Lighting Repair
   Drives
      Specifications
      Drive Wheels

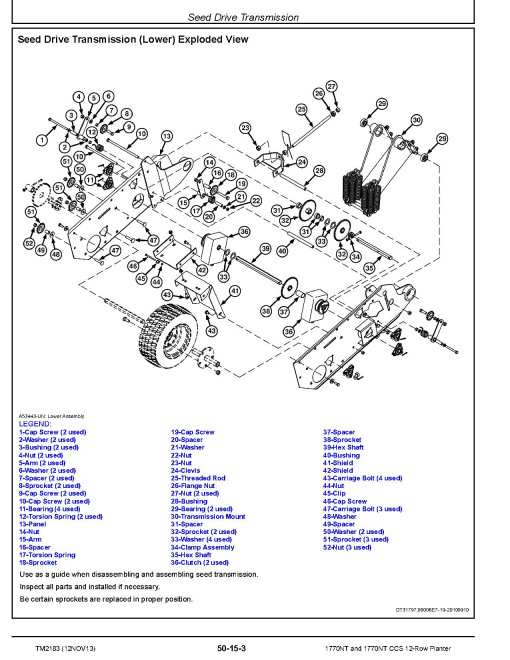

      Seed Drive Transmission
      Half-Width Disconnect
      Drillshaft
      Variable Rate Drive
   Fertilizer and Pesticide Systems
      Liquid Fertilizer System
      Variable Rate Fertilizer
      Pesticide System
   Hydraulics
      General Information
      Motors
      Cylinders
      Valve Block
      Valves
      Miscellaneous
   Miscellaneous
      Polyethylene Tank Repair
   Dealer Fabricated Tools
      Dealer Fabricated Tools
