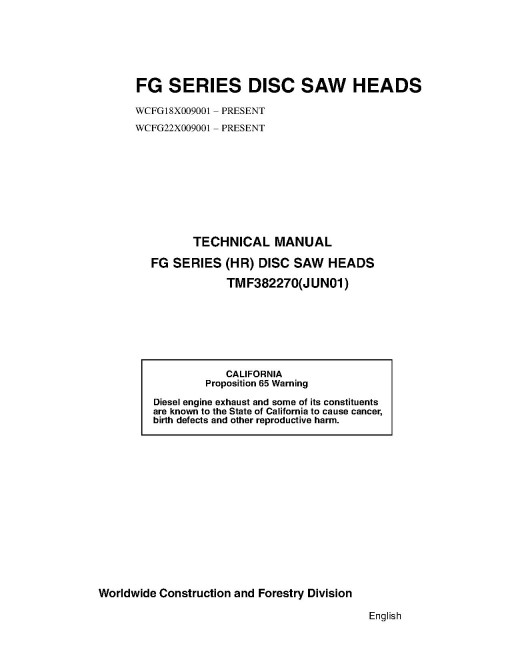

Timberjack FG18 (PIN: WCFG18X009001-) and FG22 (PIN: WCFG22X009001-) Felling Heads Technical Manual (TMF382270)

Illustrated factory Technical Manual for Timberjack Felling Heads Models FG18 and FG22.

This manual will assist you in diagnosing, and repairing for your log loader or felling head.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FG18 (PIN: WCFG18X009001-)
   FG22 (PIN: WCFG22X009001-)

Format: PDF, 244 pages
Language: English
Publication Date: 01 Jun 2001
Table of Contents:
   Introduction
      General
      Models Covered Bv This Manual

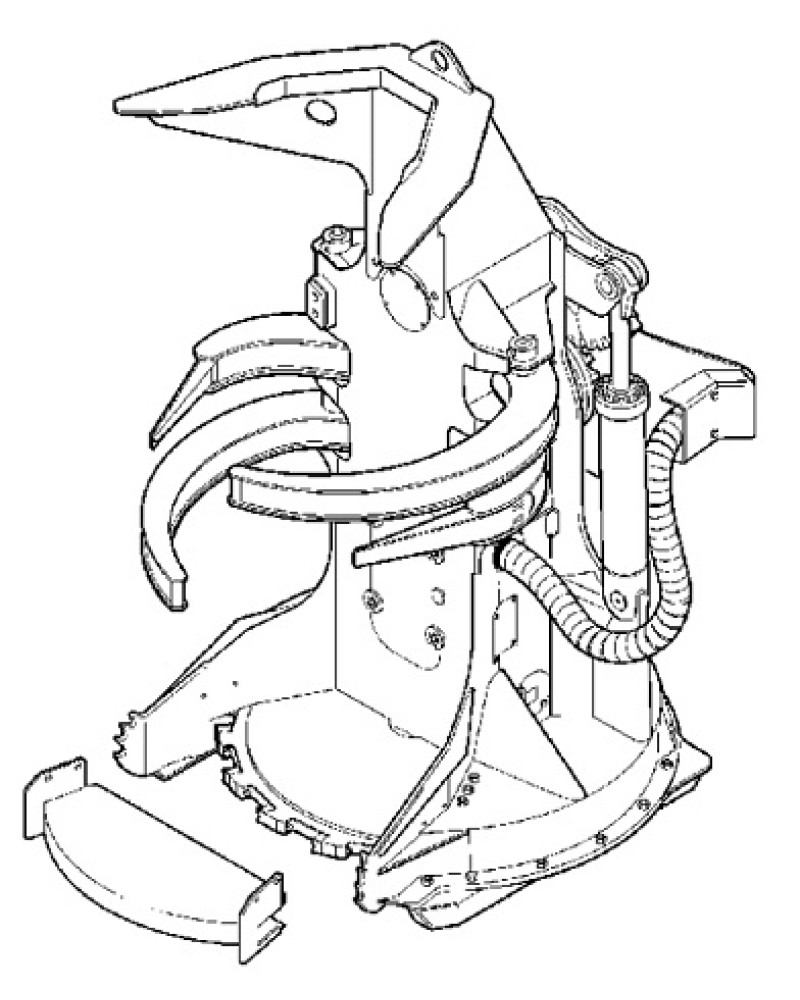

   FG18
      Comoonent Description
      General Dimensions
      General Soecifications
   FG22

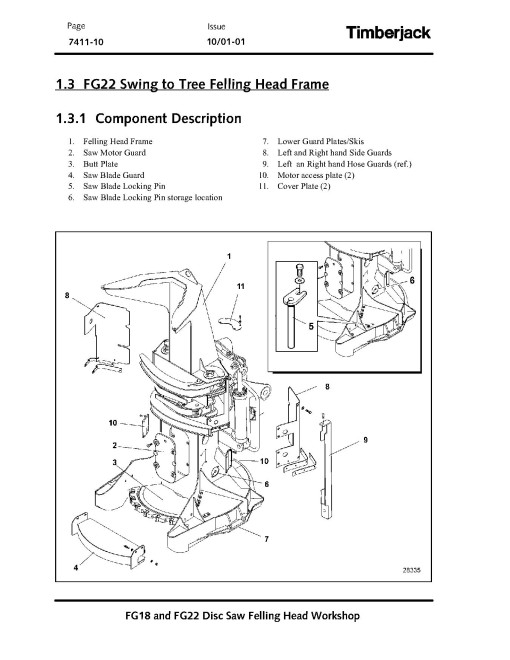

      Comoonent Description

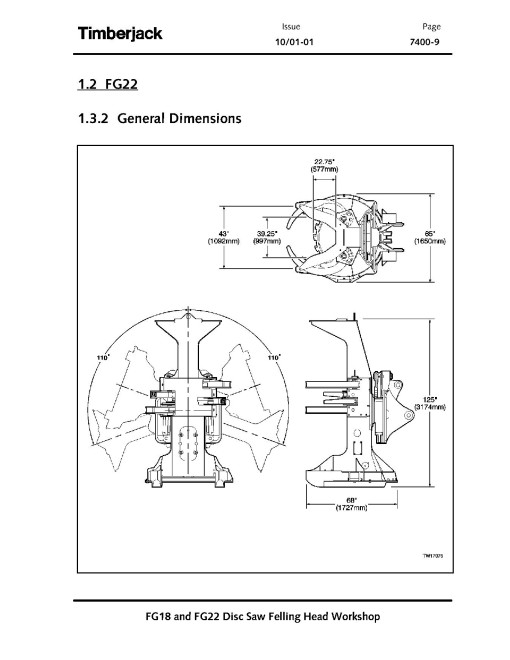

      General Dimensions
      General Specifications
   Safetv Precautions
      General
      Safetv Symbol
      Undersatanding Signal Words
      General Safetv Precautions
      Operating Safetv Precautions
      Servicing Safety Precautions
      Fire prevention
   Torque Values
      Steel Fasteners

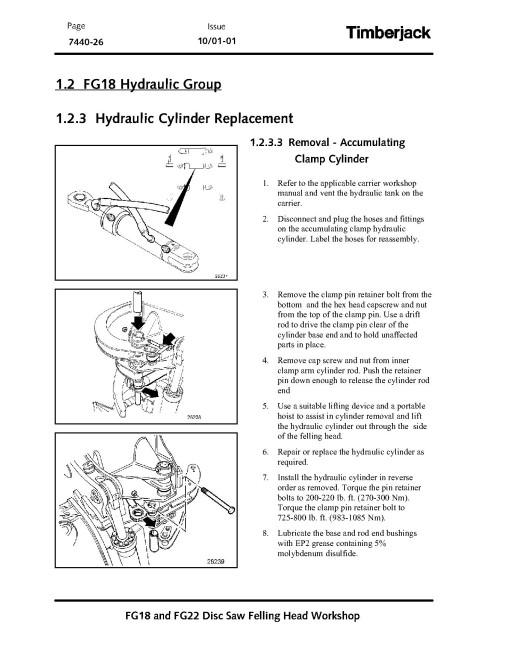

      Hvdraulic Fittings
   Aoolication of Adhesives
      Through Hoie (Boits & Nuts)
      Blind Holes (Cap Screws, etc.)
      Pre-Assembled Fasteners
      Hydraulic Fittings
   Tool Lists_
      Service Shop_
      Service Truck_
      Felling Head Service lools
